836008 - Gravely 40" Bagger (SN: 000101 & Above) Bagger Assembly Parts Diagram

40" Bagger

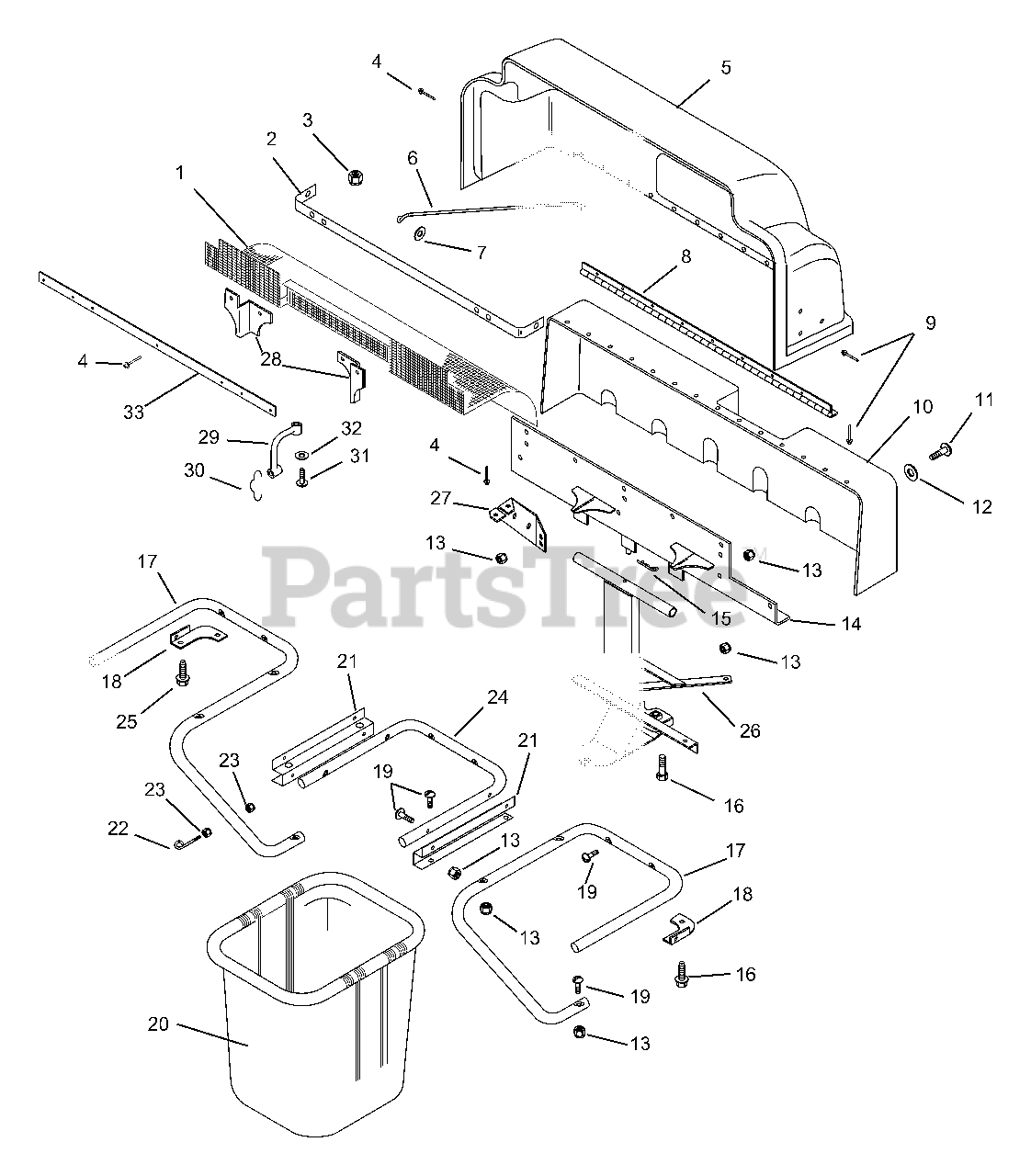

Bagger Assembly Parts Diagram

  • Title

1

Gravely 041095

Screen
(Superseded to 03325500)

$

$

Not available

2

Gravely 045462

Screen Mounting Bracket
(Superseded to 03325400)

$

$

Not available

3

Gravely 06536000

Nut-Locking-Top 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 041098

Rivet-Pop .187 x .527
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 53600100

Hinged Cover w/Decals

$

$

Not available

6

Gravely 041097

Brace
(Superseded to 03552900)

$

$

Not available

7

Gravely 06444400

Washer-Flat-Steel .194 x .492 x .047

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 03325200

Hinge

$

$

Not available

9

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 10

0

10

Gravely 050353

Stationary Cover
(Superseded to 53506700)

$

$

Not available

11

Gravely 05947000

Bolt-Hex .31-18 x 1.00 Grade 2
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06439400

Washer-Flat-Steel .344 x .063

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06529800

Nut- Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 050354

Mounting Bracket
(Superseded to 03586200)

$

$

Not available

15

Gravely 036075

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 2
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

17

Gravely 03610400

Right Tube
(Superseded to 03610451)

$

$

Not available

17

Gravely 03610500

Left Tube
(Superseded to 03610551)

$

$

Not available

18

Gravely 041089

Right Hand Corner Bracket
(Superseded to 02725000)

$

$

Not available

18

Gravely 041090

Left Hand Corner Bracket
(Superseded to 02725100)

$

$

Not available

19

Gravely 035809

Screw-Machine .31-18 x 1.50
(Superseded to 06119100)

$

$

Not available

20

Gravely 038328

Grass Bager Basket
(Superseded to 02724400)

$79.99

$

Usually ships in 4-12 days

0

21

Gravely 038323

Tube Bracket
(Superseded to 02724700)

$

$

Not available

22

Gravely 02432700

Eyebolt
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 038325

Center Tube
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

25

Gravely 07411500

Screw-Tapping .312-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 03608900

Bagger Frame

$

$

Not available

27

Gravely 041092

Brace
(Superseded to 02725200)

$

$

Not available

28

Gravely 041099

Baffle Left Hand
(Superseded to 03326900)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 041100

Baffle Right Hand
(Superseded to 03327000)

$

$

Not available

29

Gravely 035829

Battery Strap
(Superseded to 07507500)

$14.99

$

Usually ships in 4-12 days

0

30

Gravely 035830

Hook
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

31

Gravely 06118500

Screw-Machine 10-24 x 1.00
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

32

Gravely 06442700

Washer-Flat Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

33

Gravely 00429751

Guard, Screen

$

$

Not available
