836004 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro Carriage & Frame (Model 836004) Parts Diagram

36" Two Stage Sno-Thro Attachment

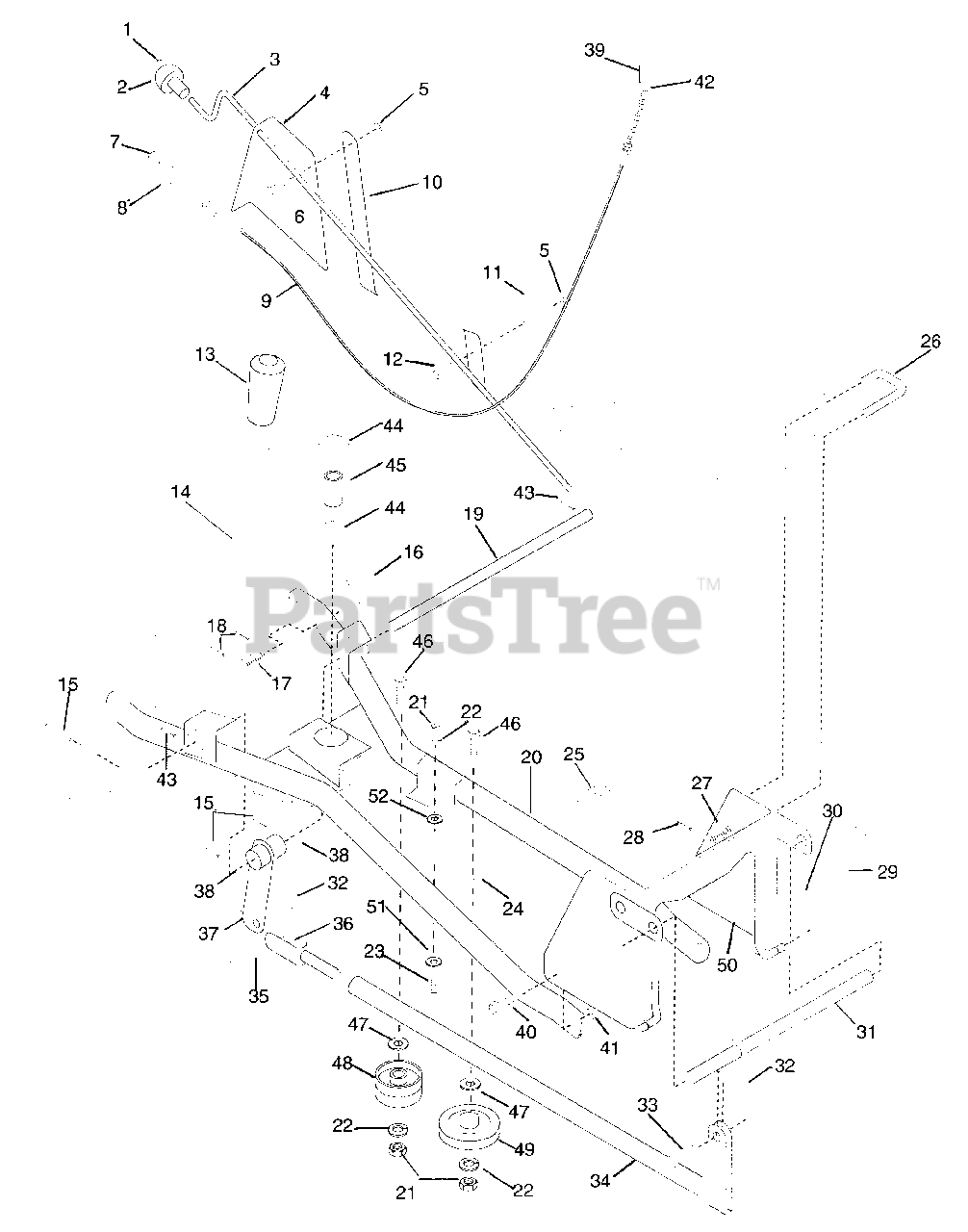

Sno-Thro Carriage & Frame (Model 836004) Parts Diagram

  • Title

1

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 07509600

KNOB

$

$

Not available

3

Ariens 03081900

CHUTE CONTROL CRANK

$154.99

$

Usually ships in 4-12 days

0

4

Ariens 03630400

CONTROL BRACKET
(Superseded to 03630443)

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

7

Ariens 06108600

SCR-MCH 8-32X.75 SLPAN PL
(Superseded to 07029300)

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 07517100

KNOB-BLACK
(Superseded to 07530800)

$9.49

$

In Stock, only 1 left!

0

9

Ariens 06917800

CONTROL CABLE
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

10

Ariens 03630300

SUPPORT

$

$

Not available

11

Ariens 03634700

PLATE, BRACE

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07526200

GRIP,HANDLE BAR

$9.99

$

Usually ships in 4-12 days

0

14

Ariens 03630000

LEVER

$

$

Not available

15

Ariens 05807100

PIN-GRV .250X1.50 TP A

$

$

Not available

16

Ariens 03584700

LATCH PIN

$

$

Not available

17

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

18

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

19

Ariens 03630100

PIVOT ROD

$

$

Not available

20

Ariens 03625500

CARRIAGE FRAME

$

$

Not available

21

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

23

Ariens 00411500

SHOULDER BOLT .50 X .281
(Superseded to 07000034)

$3.99

$

In Stock, only 1 left!

0

24

Ariens 03589400

IDLER ARM
(Superseded to 03589443)

$

$

Not available

25

Ariens 08318600

SG-TENS .080X.73X3.06 WLD 20

$

$

Not available

26

Ariens 03630200

LATCH PIN

$

$

Not available

27

Ariens 08326000

SG-COMP .072X.77X1.75

$

$

Not available

28

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

29

Ariens 08326100

SG-GAS COMP .315X.75X10.00 120

$

$

Not available

30

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 03630800

PIVOT ROD

$

$

Not available

32

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

33

Ariens 03634800

CLEVIS PIN
(Superseded to 06821500)

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 03630700

TUBE, LIFT
(Superseded to 03630743)

$205.99

$

Usually ships in 4-12 days

0

35

Ariens 03138100

PIN-CLEV .494X1.25 YWZC
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

36

Ariens 03129600

CLEVIS R.H.

$51.99

$

Usually ships in 4-12 days

0

37

Ariens 03629700

LEVER, ACTUATOR

$

$

Not available

38

Ariens 06406200

WSHR-FL-STL .754X1.125X.062 PL
(Superseded to 06441400)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

40

Ariens 05904000

BLT-HEX .62-11X1.50 PL GR2
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

41

Ariens 06515800

NUT-LK-NYL .625-11 PL (ND)
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

42

Ariens 06917500

PIVOT

$37.99

$

Usually ships in 4-12 days

0

43

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

45

Ariens 03517300

SPACER .765X1.000X1.252

$

$

Not available

46

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

Note: x .125 Pl 836004 S/N <000250

$7.99

$

In Stock, Qty 8

0

48

Ariens 07310800

IDLER-FLAT 2.25 X .38

$34.99

$

In Stock, only 1 left!

0

49

Ariens 07310900

IDLER-V 3.06 X .38

$23.99

$

In Stock, only 1 left!

0

50

Ariens 03625800

PIVOT FRAME
(Superseded to 53602200)

$

$

Not available

51

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

52

Ariens 06426300

WSHR-THRST .507X.917X.031

$3.99

$

Usually ships in 4-12 days

0
