836004 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Housing & Auger (Model 836004) Parts Diagram

36" Two Stage Sno-Thro Attachment

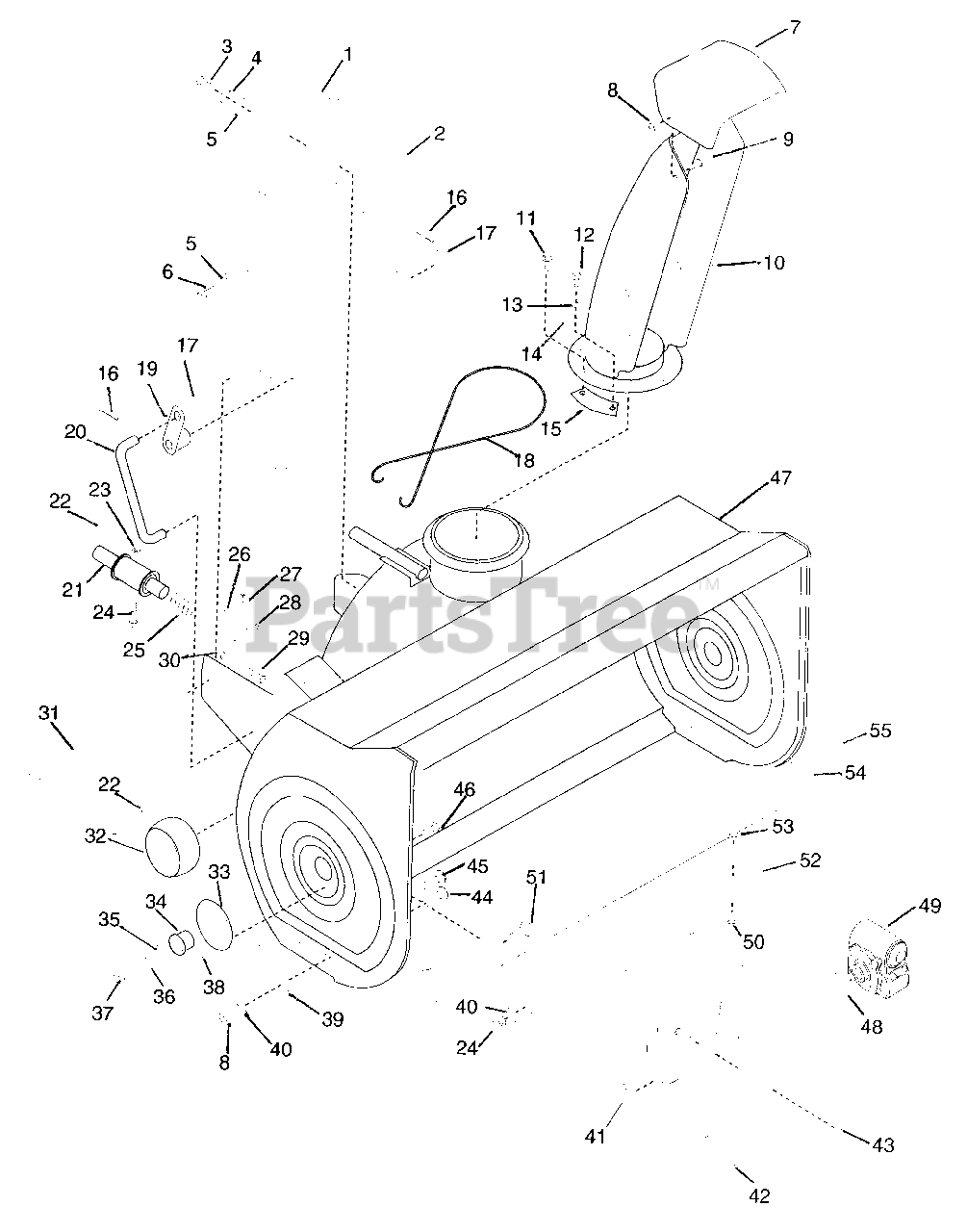

Housing & Auger (Model 836004) Parts Diagram

  • Title

1

Ariens 03625600

BELT GUARD

$

$

Not available

2

Ariens 03592500

SHIELD
(Superseded to 03592543)

$

$

Not available

3

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 53114400

DEFLECTOR W/DECAL

$

$

Not available

8

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 03028300

DISCHARGE CHUTE
(Superseded to 03028359)

$

$

Not available

11

Ariens 07411300

SCR-TAP 12-24X.50 TORX YWZC TR

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 07411400

SCR-TAP 12-24X.75 TORX PL TR
(Superseded to 07414600)

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 06409200

WSHR-FL-STL .188X.438X.049 PL

$

$

Not available

14

Ariens 06900300

CABLE CLAMP

$

$

Not available

15

Ariens 02463500

CHUTE CLAMP

$

$

Not available

16

Ariens 06703800

PIN-HAIR INT .17X.68X3.50 PL
(Superseded to 06713300)

$2.99

$

In Stock, only 1 left!

0

17

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 03625700

CABLE

$199.99

$

Usually ships in 4-12 days

0

19

Ariens 03629800

ARM, LIFT
(Superseded to 03629843)

$11.99

$

Usually ships in 4-12 days

0

20

Ariens 03630600

LINK, LIFT

$8.99

$

Usually ships in 4-12 days

0

21

Ariens 03082600

HOUR METER

$

$

Not available

22

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

24

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$0.99

$

In Stock, Qty 13

0

25

Ariens 08316900

SG-COMP .054X.75X1.6

$

$

Not available

26

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

28

Ariens 03028700

DISC ASSEMBLY

$54.99

$

Usually ships in 4-12 days

0

29

Ariens 05915600

SCR-SKH 10-24X.38

$1.99

$

Usually ships in 4-12 days

0

30

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

31

Ariens 03623200

RH FOOT REST BRACE

$5.99

$

Usually ships in 4-12 days

0

32

Ariens 02745400

ROLLER

$15.99

$

In Stock, Qty 20+

0

33

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$29.99

$

In Stock, only 1 left!

0

34

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 20+

0

35

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

36

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

37

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

38

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 03075500

RUNNER-SKID SHOE
(Superseded to 03075559)

$38.99

$

Usually ships in 4-12 days

0

40

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 53503400

RAKE, RIGHT-36"(1ID X 15.75OD)
(Superseded to 52412600)

$

$

Not available

43

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$4.99

$

In Stock, Qty 20+

0

44

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

46

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

47

Ariens 03625400

36" SNO-THRO HOUSING

$

$

Not available

48

Ariens 05607000

SEAL 1.625X2.125X.250

$9.99

$

In Stock, Qty 20+

0

49

Ariens 53502200

GEAR CASE - 40" - CAST IRON

$

$

Not available

50

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

52

Ariens 03519300

BLADE BRACE
(Superseded to 03519343)

$

$

Not available

53

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

54

Ariens 03519200

SCRAPER BLADE 36"
(Superseded to 03519259)

$62.99

$

In Stock, only 1 left!

0

55

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$2.99

$

Usually ships in 4-12 days

0
