836001 - Ariens 42" Front Blade (SN: 000101 & Above) 42" Front Blade (Model 836001) Parts Diagram

42" Front Blade

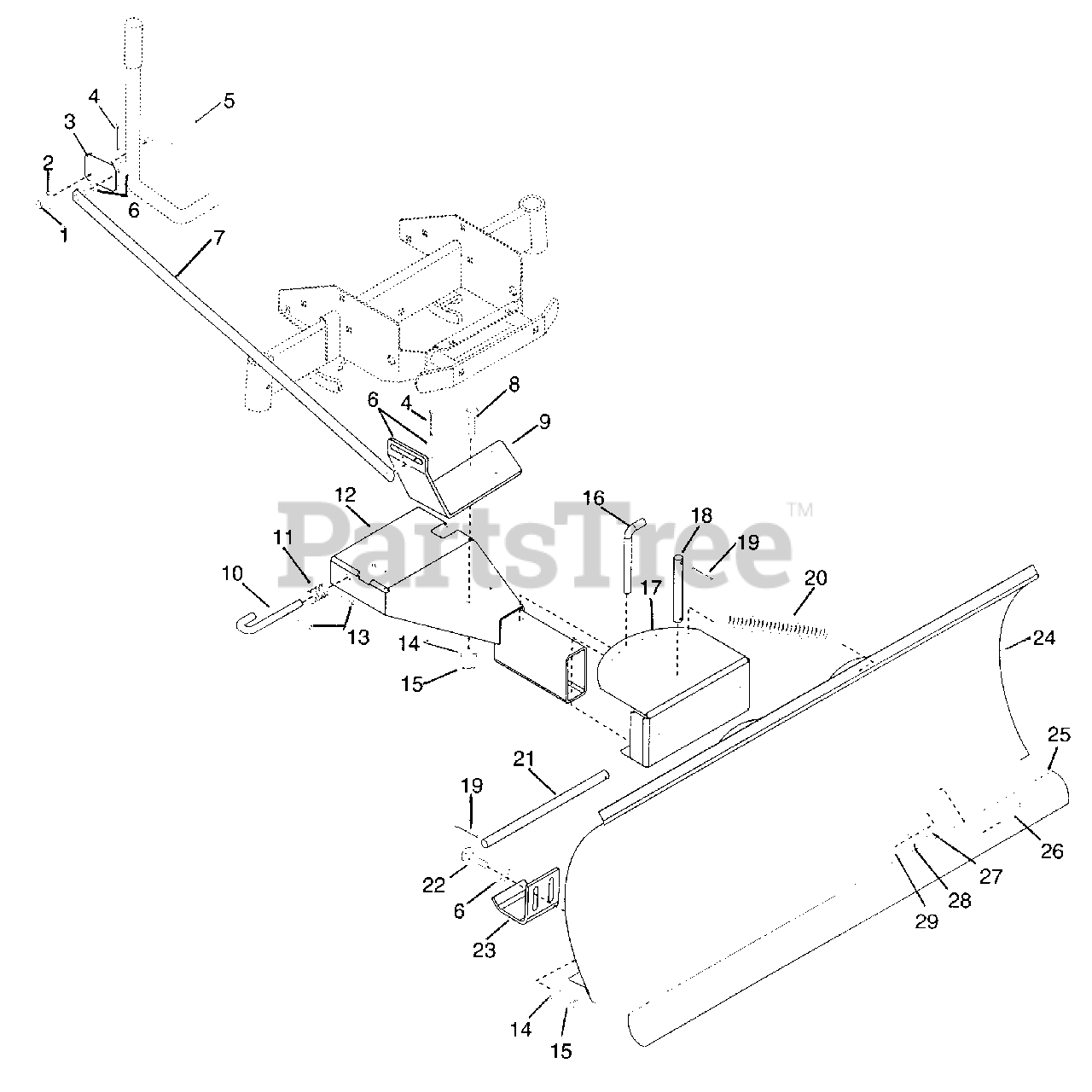

42" Front Blade (Model 836001) Parts Diagram

  • Title
1

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

2

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

3

Ariens 03626500

LIFT HANDLE PLATE

$

$

Not available

4

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

5

$

$

Not available

6

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03627100

LIFT STRAP

$

$

Not available

8

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03626700

LIFT BRACE

$

$

Not available

10

Ariens 03626800

LATCH PIN

$

$

Not available

11

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

12

$

$

Not available

13

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

14

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

$

$

Not available

17

Ariens 03626900

FRONT BLADE POSITIONER

$

$

Not available

$

$

Not available

19

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

$1.99

$

In Stock, only 2 left!

0

20

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$45.99

$

In Stock, only 2 left!

0

$

$

Not available

22

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

23

Ariens 03127100

SKID SHOE

$

$

Not available

24

Ariens 02918500

WELDMENT, SNOW BLADE

$279.99

$

Usually ships in 4-12 days

0

25

Ariens 02918600

WEAR PLATE

$

$

Not available

26

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0
