836 B (129-836B100) - Cub Cadet Walk-Behind Mower Engine (1989) B&S 4 HP 110702-0285-02 Part 2 Parts Diagram

Walk-Behind Mower Engine

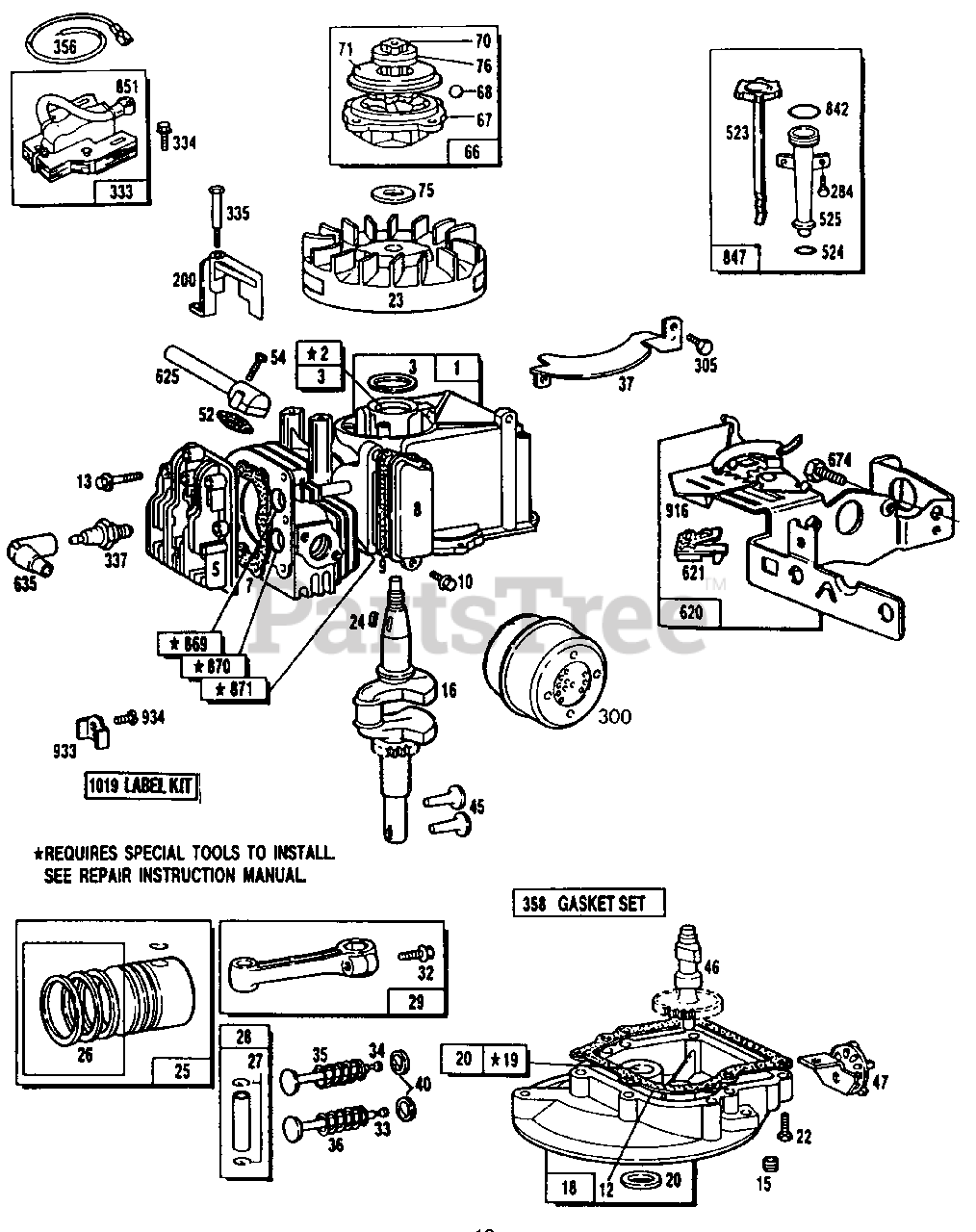

B&S 4 HP 110702-0285-02 Part 2 Parts Diagram

  • Title

1

Cub Cadet BS-399168

Cylinder Assembly

$170.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-293708

Bushing Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

5

Cub Cadet BS-212996

Head Cylinder

$16.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-272171

Gasket Cylinder Head

Note: (Included in Gasket Set-Part No. 391662)

$8.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-298383

Breather Valve Chamber

$

$

Not available

9

Cub Cadet BS-270239

Gasket Valve Cover

Note: (Included in Gasket Set-Part No. 391662)

$

$

Not available

10

Cub Cadet BS-93394

Screw Breather
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-270833

Gasket Crankcase .015" Thick
(Superseded to BS-692218)

Note: (Standard)

$

$

Not available

Cub Cadet BS-270895

Gasket Crankcase .005" Thick

Note: (Included in Gasket Set-Part No. 391662)

$9.99

$

In Stock, only 2 left!

0

Cub Cadet BS-270896

Gasket Crankcase .009" Thick

Note: (Included in Gasket Set-Part No. 391662)

$5.99

$

In Stock, Qty 8

0

13

Cub Cadet BS-93111

Screw Cylinder Head (1-15/16" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

15

Cub Cadet BS-93418

Plug Oil Drain (Socket Head)
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-262340

Crankshaft

$172.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-491891

Sump Engine

$

$

Currently unavailable

19

Cub Cadet BS-293709

Bushing Engine Sump

$11.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391485

Seal Oil

$9.99

$

In Stock, Qty 5

0

22

Cub Cadet BS-93032

Screw Sump Mtg. Sem

$

$

Not available

23

Cub Cadet BS-395653

Flywheel Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-391650

Piston Ass'y. Standard

$63.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391651

Piston Ass'y. .010" O.S.

$

$

Currently unavailable

Cub Cadet BS-391652

Piston Ass'y. .020" O.S.

$

$

Currently unavailable

Cub Cadet BS-391653

Piston Ass'y. .030" O.S.

$

$

Currently unavailable

26

Cub Cadet BS-391654

Ring Set Std. Piston

$

$

Not available

Cub Cadet BS-391656

Ring Set .010" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-391658

Ring Set 020" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-391660

Ring Set .030" O.S. Piston

$

$

Currently unavailable

27

Cub Cadet BS-26026

Lock Piston Pin

$

$

Not available

28

Cub Cadet BS-391649

Pin Assembly Piston Standard

$

$

Currently unavailable

Cub Cadet BS-394861

Pin Assembly Piston .005" O.S.

$

$

Currently unavailable

29

Cub Cadet BS-490566

Rod Assembly Connecting

$39.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94404

Screw Connecting Rod

$

$

Not available

33

Cub Cadet BS-212004

Valve Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-261233

Valve Intake

$

$

Currently unavailable

35

Cub Cadet BS-260552

Spring Intake Valve

$5.49

$

In Stock, only 1 left!

0

36

Cub Cadet BS-26478

Spring Exhaust Valve

$6.49

$

In Stock, only 1 left!

0

37

Cub Cadet BS-223150

Guard Flywheel

$

$

Currently unavailable

40

Cub Cadet BS-93312

Retainer Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

45

Cub Cadet BS-261250

Tappet Valve

$

$

Currently unavailable

46

Cub Cadet BS-395856

Gear Cam

$

$

Currently unavailable

47

Cub Cadet BS-294652

Oil Slinger Gear and Bracket

$

$

Not available

52

Cub Cadet BS-270844

Gasket Intake Elbow

Note: (Included in Gasket Set-Part No. 391662)

$13.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-93485

Screw Intake Elbow Mounting

$

$

Not available

66

Cub Cadet BS-399671

Clutch Assembly Rewind Starter

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball Clutch

$

$

Not available

70

Cub Cadet BS-298436

Ratchet Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-221653

Washer Clutch Retainer

$

$

Currently unavailable

75

Cub Cadet BS-223047

Washer

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer Ratchet Sealing

$

$

Not available

200

Cub Cadet BS-68388

Blade Governor

$26.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94073

Screw Clamp Mounting
(Superseded to BS-691002)

$8.49

$

In Stock, only 2 left!

0

300

Cub Cadet BS-394569

Muffler Exhaust

$

$

Not available

305

Cub Cadet BS-94153

Screw Blower Housing Mounting Sem

$

$

Not available

333

Cub Cadet BS-398593

Armature Magneto
(Superseded to BS-591420)

$53.99

$

In Stock, only 1 left!

0

334

Cub Cadet BS-93381

Screw Armature Mounting Sem

$

$

Not available

335

Cub Cadet BS-93435

Screw Armature and Governor Blade Mounting Sem

$

$

Not available

337

Cub Cadet 759-3331

Plug Spark (with Gasket) 1-1/2" High 37-42 mm.

$3.99

$

In Stock, only 2 left!

0

356

Cub Cadet BS-398808

Wire Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-391662

Gasket Set

$40.99

$

Usually ships in 2-12 days

0

523

Cub Cadet BS-398012

Cap with Dipstick Oil Filler

$

$

Not available

524

Cub Cadet BS-271485

Seal Filler Tube

$

$

Not available

525

Cub Cadet BS-280504

Tube Oil Filler

$

$

Not available

620

Cub Cadet BS-492389

Plate Carburetor Control

$14.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

625

Cub Cadet BS-397973

Tube Fuel Intake

$

$

Currently unavailable

635

Cub Cadet BS-66538

Elbow Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 11

0

674

Cub Cadet BS-94117

Screw Bracket Mtg.

$

$

Not available

842

Cub Cadet BS-270920

Seal Filler Cap
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

847

Cub Cadet BS-398010

Filler Group Oil

$38.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-221798

Terminal Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-211172

Seat Intake Valve

Note: (Standard)

$

$

Not available

870

Cub Cadet BS-211291

Seat Exhaust Valve

Note: (Standard)

$

$

Not available

871

Cub Cadet BS-262001

Guide Exhaust Valve

$13.99

$

Usually ships in 2-12 days

0

916

Cub Cadet BS-280993

Rack Gear

$

$

Not available

933

Cub Cadet BS-223278

Spacer

$

$

Currently unavailable

934

Cub Cadet BS-94037

Screw Machine

$

$

Currently unavailable

1019

Cub Cadet BS-491080

Decal (Label) Kit

$

$

Currently unavailable
