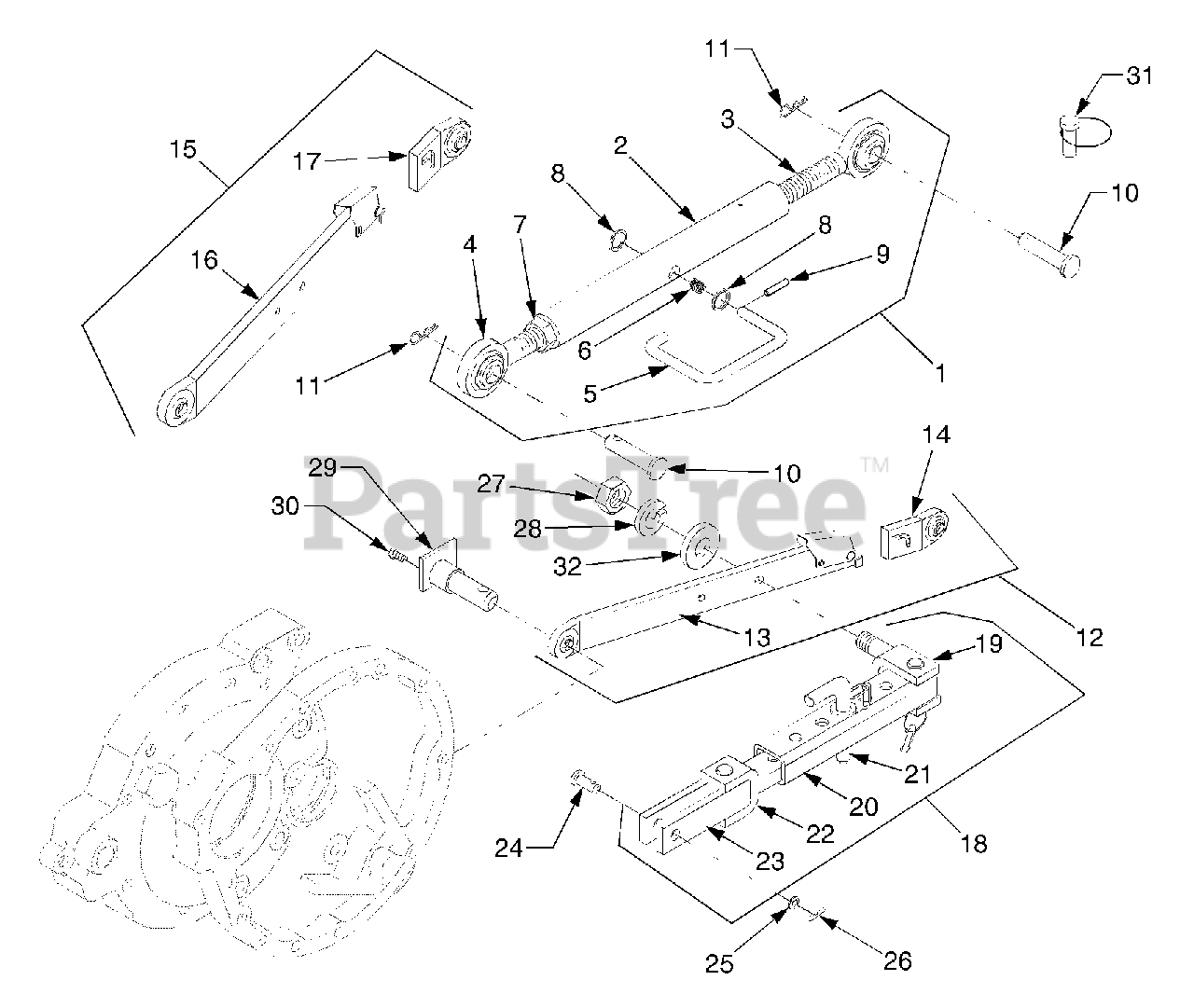

8354 (54AY85A-710) - Cub Cadet Compact Tractor Three Point Connectors Parts Diagram

Compact Tractor

Three Point Connectors Parts Diagram

  • Title

1

Cub Cadet DD-T4681-85351

Top Link Ass'y
(Superseded to DDT468185351BB)

$381.99

$

Usually ships in 3-6 days

0

2

Cub Cadet DD-T4620-85361

Link, Top

$

$

Currently unavailable

3

Cub Cadet DD-32240-71224

Joint, Ball (LH)

$

$

Not available

4

Cub Cadet DD-32240-71214

Joint, Ball (RH)

$

$

Not available

5

Cub Cadet DD-T4620-85371

Support, Top Link

$

$

Currently unavailable

6

Cub Cadet DD-T4620-85381

Spring

$

$

Currently unavailable

7

Cub Cadet DD-32244-71181

Nut

$

$

Not available

8

Cub Cadet DD-04011-50100

Washer, Plain

$

$

Not available

9

Cub Cadet DD-05411-00425

Pin, Spring

$

$

Not available

10

Cub Cadet DD-T4620-85392

Pin, Top Link

$

$

Not available

11

Cub Cadet DD-05515-51600

Pin, Snap

$2.99

$

In Stock, only 1 left!

0

12

Cub Cadet DD-T2625-93011

Lower Link Ass'y (LH)
(Superseded to DD-T2625-93012)

$

$

Not available

13

Cub Cadet DD-T2625-93022

Body, Lower Link (LH)

$

$

Currently unavailable

14

Cub Cadet DD-T2615-93031

Houshing, Lower Link (LH)

$

$

Currently unavailable

15

Cub Cadet DD-T2625-93111

Lower Link Ass'y (RH)
(Superseded to DD-T2625-93112)

$

$

Not available

16

Cub Cadet DD-T2625-93122

Body, Lower Link (RH)

$

$

Currently unavailable

17

Cub Cadet DD-T2615-93131

Houshing, Lower Link (RH)

$

$

Currently unavailable

18

Cub Cadet DD-T2625-91114

Check Link Ass'y
(Superseded to DD-T2625-91116)

$

$

Not available

19

Cub Cadet DD-T2615-91153

Bracket 3

$

$

Not available

20

Cub Cadet DD-T2615-91142

Housing
(Superseded to DD-T2615-91143)

$

$

Not available

21

Cub Cadet DD-T2615-91162

Hook
(Superseded to DD-T4125-91161)

$39.99

$

Usually ships in 3-6 days

0

22

Cub Cadet DD-T2615-91132

Bracket 2
(Superseded to DD-T2615-91133)

$

$

Not available

23

Cub Cadet DD-T2625-91122

Bracket 1

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet DD-32353-71893

Pin

$5.49

$

Usually ships in 3-6 days

0

25

Cub Cadet DD-04013-50120

Washer, Plain

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet DD-05515-51200

Pin, Snap

$

$

Not available

27

Cub Cadet DD-02174-50180

Nut

$2.99

$

In Stock, only 3 left!

0

28

Cub Cadet DD-04512-50180

Washer, Spring

$

$

Not available

29

Cub Cadet DD-T2445-29822

Pin, Lower Link

$

$

Not available

30

Cub Cadet DD-01123-50816

Bolt

$

$

Not available

31

Cub Cadet DD-34150-37644

Pin, Set

$

$

Not available

32

Cub Cadet DD-04014-50180

Washer, Plain

$2.99

$

In Stock, only 2 left!

0
