83511 - Toro Electric PTO (1969) PARTS LIST-POWER TAKE OFF MODEL 8-3411 Parts Diagram

Electric PTO

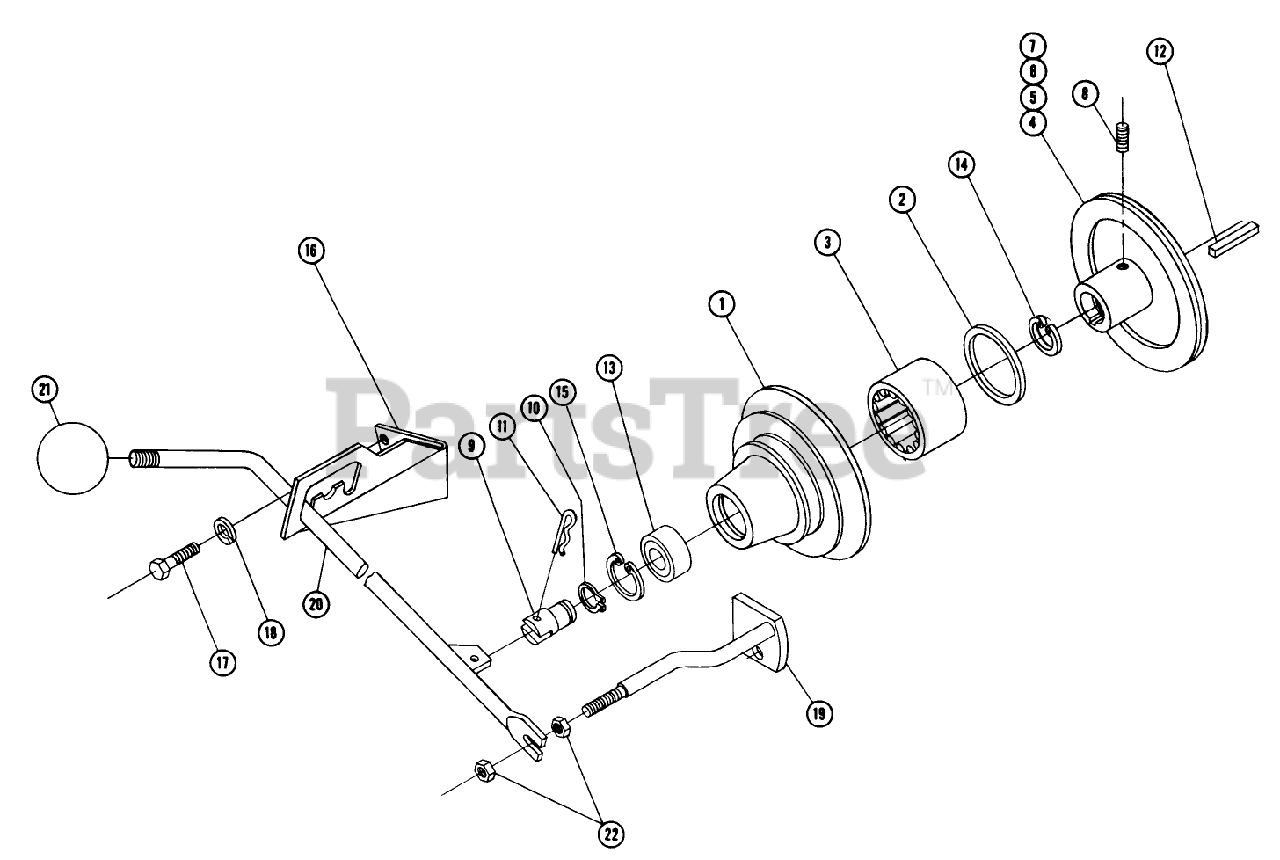

PARTS LIST-POWER TAKE OFF MODEL 8-3411 Parts Diagram

  • Title

1

Toro 5195

Housing

$

$

Currently unavailable

2

Toro 4398

OIL SEAL

$

$

Not available

3

Toro 4397

Bearing-Needle

$

$

Not available

4

Toro 4282

Ass-y.-Clutch Plate (Complete)

$

$

Not available

5

Toro 4874

Assembly-Clutch Plate-Sleeve

$

$

Not available

6

Toro 4365

CLUTCH FACING

$90.99

$

In Stock, only 2 left!

0

7

Toro 4870

Rivet-Clutch Facing

$

$

Currently unavailable

8

Toro 909848-6

Set Screw 1/4-20 x 1/4

$

$

Currently unavailable

9

Toro 5197

SHAFT

$

$

Not available

10

Toro S-50-75

Snap Ring 3/4 I.D.

$

$

Currently unavailable

11

Toro S-52-6

Hairpin

$

$

Currently unavailable

12

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

13

Toro 5196

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 1 left!

0

14

Toro S-51-112

Snap Ring-1 1/8 Int. Truarc

$

$

Currently unavailable

15

Toro S-51-175

Snap Ring-1 3/4 Int. Truarc

$

$

Currently unavailable

16

Toro 4383

Bracket

$

$

Not available

17

Toro 908015-4

Bolt Hex 5/16-18

$

$

Currently unavailable

18

Toro 920082-4

Lockwasher

$

$

Currently unavailable

19

Toro 4291

Ass-y.-Plate

$

$

Currently unavailable

20

Toro 4355

ROD ASSY

$

$

Not available

21

Toro 2709

Knob
(Superseded to 102891)

$69.99

$

Usually ships in 3-6 days

0

22

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

23

Toro 5194

DECAL

$

$

Not available

24

Toro S-56-6

Wrench 1/8 Hex Allen

$

$

Currently unavailable
