835032 - Gravely 42" Snow Blade for 1100 & 1200 Series Tractor (SN: 000101 & Above) DOZER BLADE 42" Parts Diagram

42" Snow Blade for 1100 & 1200 Series Tractor

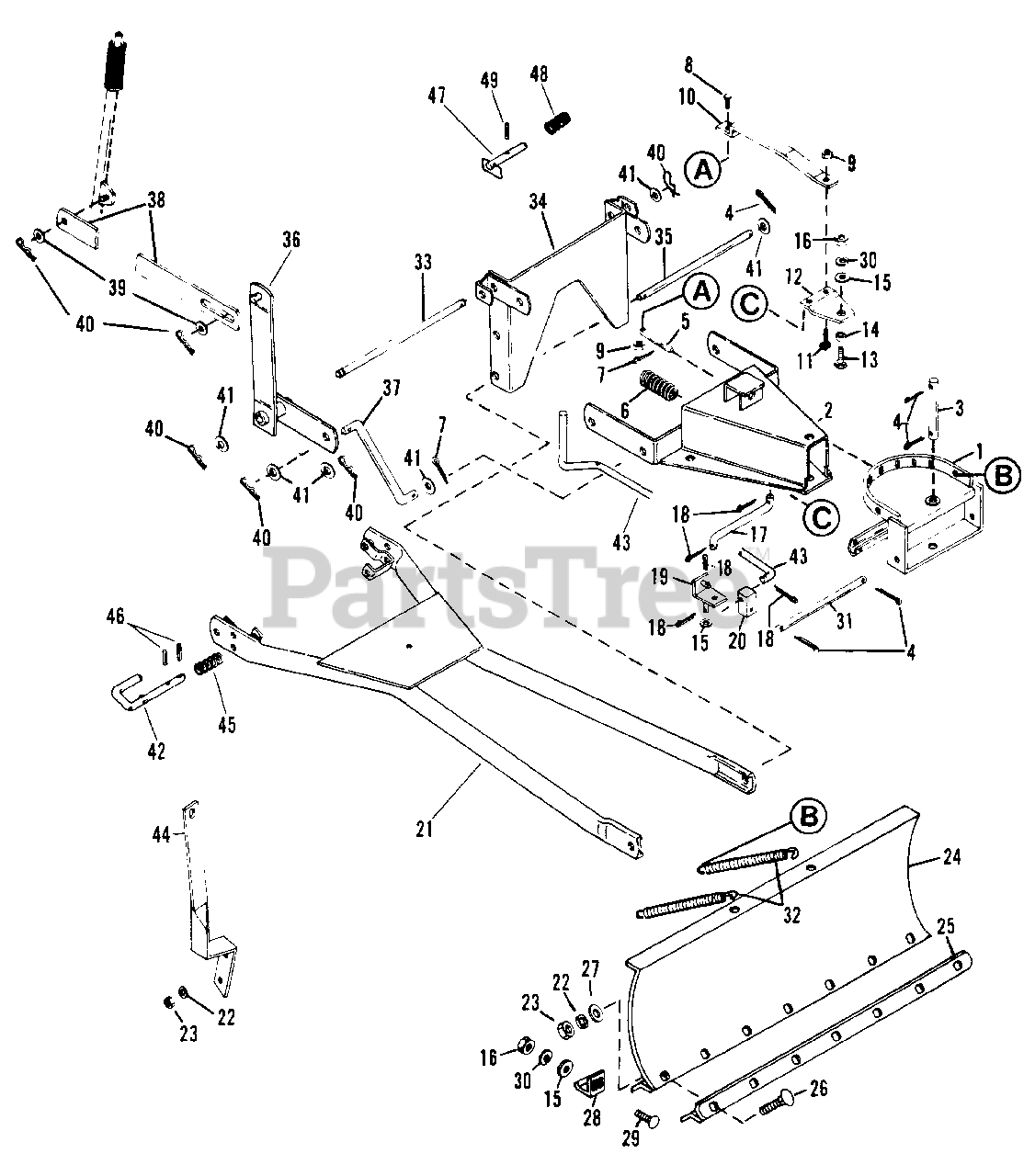

DOZER BLADE 42" Parts Diagram

  • Title
1

Gravely 036524

Support
(Superseded to 02918100)

$

$

Not available

2

Gravely 051573

Push Frame

$

$

Not available

3

Gravely 036526

Rod
(Superseded to 02918400)

$

$

Not available

4

Gravely 187988

Cotter Pin 3/16x1.25
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

5

Gravely 036528

Latch Pin
(Superseded to 03125400)

$

$

Not available

6

Gravely 036058

Comp. Spring
(Superseded to 08313200)

$38.99

$

Usually ships in 4-12 days

0

7

Gravely 137185

Cotter Pin 1/8x1.00
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

8

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

9

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 036791

Strap
(Superseded to 02918300)

$

$

Not available

11

Gravely 126211

Bolt, 5/16-18x.625 Rd Hd Sq Nk
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 036535

Pivot Plate

$

$

Not available

13

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

$

$

Not available

15

Gravely 120388

Washer, Flat .438x1.000x.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 036540

Rod
(Superseded to 02918200)

$

$

Not available

18

Gravely 177923

Cotter Pin 1/8x.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

19

$

$

Not available

20

Gravely 036543

Universal Block Joint

$

$

Not available

21

Gravely 051574

Carriage, Blade
(Superseded to 03590200)

$

$

Not available

22

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

23

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

24

Gravely 036550

Blade
(Superseded to 02918500)

$279.99

$

Usually ships in 4-12 days

0

25

Gravely 036533

Wear Plate
(Superseded to 02918600)

$

$

Not available

26

Gravely 126358

Bolt, Carriage 5/16-18x1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 036554

Skid Shoe
(Superseded to 03127151)

$51.99

$

Usually ships in 4-12 days

0

29

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

30

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 036557

Rod
(Superseded to 02918700)

$

$

Not available

32

Gravely 036558

Extension Spring
(Superseded to 08313300)

$45.99

$

In Stock, only 2 left!

0

33

Gravely 051576

Mount Rod
(Superseded to 03591600)

$

$

Not available

34

Gravely 051577

Frame, Pivot
(Superseded to 03590400)

$

$

Not available

35

Gravely 036561

Pivot Rod
(Superseded to 03508300)

$

$

Not available

36

Gravely 051578

Lift Bellcrank
(Superseded to 03591200)

$

$

Not available

37

Gravely 051579

Lift Link
(Superseded to 03591900)

$

$

Not available

38

Gravely 051580

Lift Strap
(Superseded to 03592000)

$

$

Not available

39

Gravely 120389

Washer, Flat .500x1.250x.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

40

Gravely 036566

Hair Pin, Internal
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

41

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 051581

Pin, Latch
(Superseded to 03584700)

$

$

Not available

43

Gravely 051582

Control Rod
(Superseded to 03591500)

$

$

Not available

44

Gravely 036570

Control Support
(Superseded to 03507900)

$

$

Not available

45

Gravely 051575

Spring, Compression
(Superseded to 08325900)

$9.49

$

Usually ships in 4-12 days

0

46

Gravely 415236

Pin, Spring .125x.750
(Superseded to 05803400)

$0.99

$

In Stock, Qty 16

0

47

Gravely 051583

Pin, Lock
(Superseded to 03592200)

$

$

Not available

48

Gravely 051584

Spring
(Superseded to 08326000)

$

$

Not available

49

Gravely 456542

Pin, Spring .187x1.500
(Superseded to 05809400)

$

$

Not available

Gravely 024588

Decal, Gravely Logo
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days

0
