835029 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro Controls Parts Diagram

36" Two Stage Sno-Thro Attachment

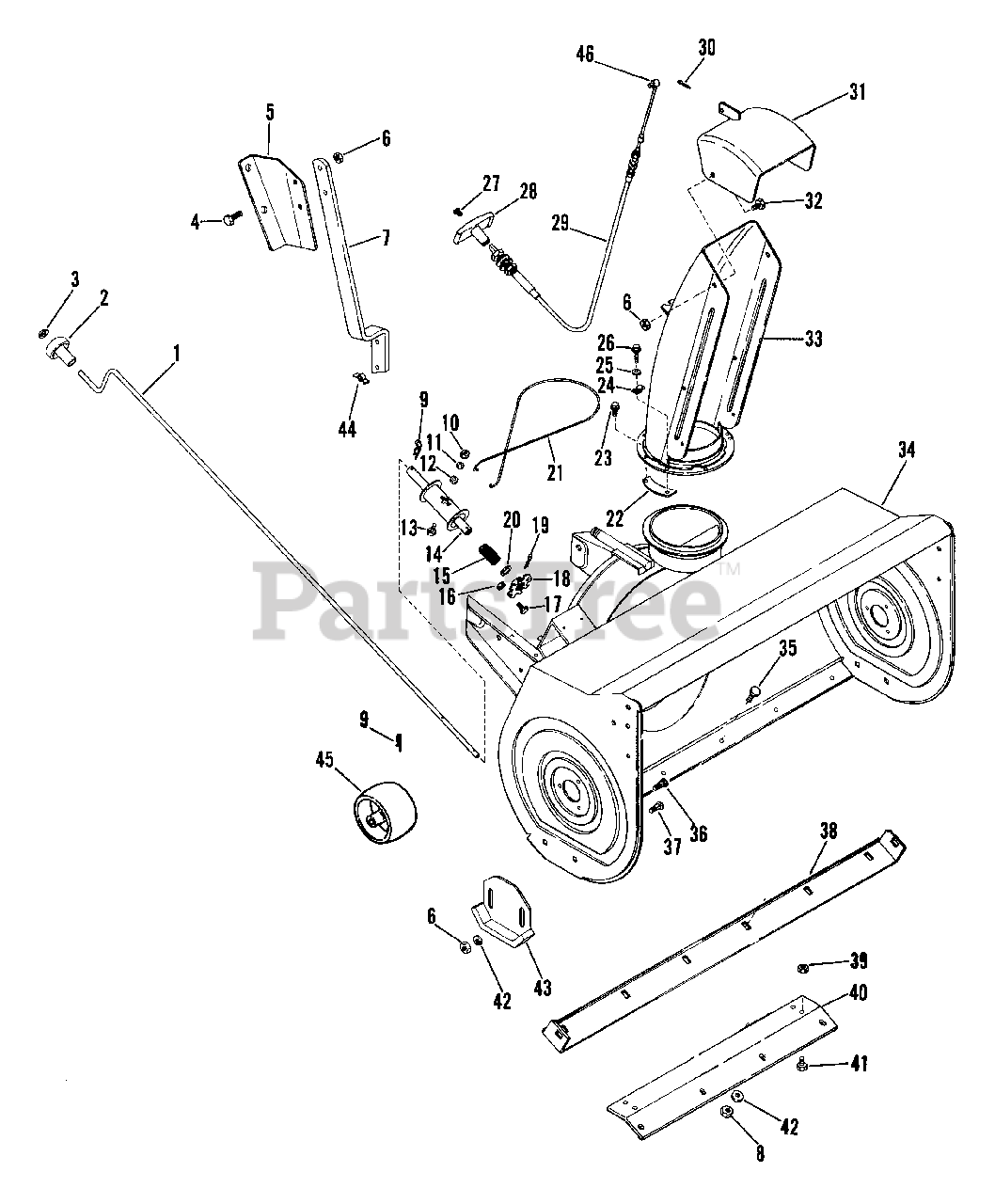

Sno-Thro Controls Parts Diagram

  • Title
1

Ariens 03081900

CHUTE CONTROL CRANK

$154.99

$

Usually ships in 4-12 days

0

$

$

Not available

3

Ariens 05708600

RG-RTNG-EXT .500X.015

$2.99

$

In Stock, Qty 11

0

4

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03531300

CONTROL BRACKET

$

$

Not available

6

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03531200

CHUTE CRANK SUPPORT

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

11

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.99

$

In Stock, only 2 left!

0

12

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

14

Ariens 03028600

SPOOL
(Superseded to 03028643)

$34.99

$

Usually ships in 4-12 days

0

15

Ariens 08316900

SG-COMP .054X.75X1.6

$

$

Not available

16

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

17

Ariens 05915600

SCR-SKH 10-24X.38

$1.99

$

Usually ships in 4-12 days

0

18

Ariens 03028700

DISC ASSEMBLY

$54.99

$

Usually ships in 4-12 days

0

19

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

20

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

21

$142.99

$

Usually ships in 4-12 days

0

22

Ariens 01043800

CHUTE CLAMP
(Superseded to 52409200)

$29.99

$

In Stock, only 1 left!

0

23

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 06900300

CABLE CLAMP

$

$

Not available

25

Ariens 06409200

WSHR-FL-STL .188X.438X.049 PL

$

$

Not available

26

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

27

Ariens 06108600

SCR-MCH 8-32X.75 SLPAN PL
(Superseded to 07029300)

$1.99

$

Usually ships in 4-12 days

0

28

Ariens 07517100

KNOB-BLACK
(Superseded to 07530800)

$9.49

$

In Stock, only 1 left!

0

29

Ariens 06917800

CONTROL CABLE
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

30

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

31

Ariens 53114400

DEFLECTOR W/DECAL

$

$

Not available

32

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 03028300

DISCHARGE CHUTE
(Superseded to 03028359)

$

$

Not available

34

Ariens 03589300

36" SNO THRO HOUSING

$

$

Not available

35

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

36

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

38

Ariens 03519200

SCRAPER BLADE 36"
(Superseded to 03519259)

$62.99

$

In Stock, only 1 left!

0

39

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

40

Ariens 03519300

BLADE BRACE
(Superseded to 03519343)

$

$

Not available

41

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 03075500

RUNNER-SKID SHOE
(Superseded to 03075559)

$38.99

$

Usually ships in 4-12 days

0

44

Ariens 06503800

NUT-WING .312-18 YWZC

$2.49

$

Usually ships in 4-12 days

0

45

$15.99

$

In Stock, Qty 20+

0

46

$37.99

$

Usually ships in 4-12 days

0
