835015 - Gravely 36" Snow Blower for 1100 & 1200 Series Tractor (SN: 000101 & Above) GEARCASE ASSEMBLY Parts Diagram

36" Snow Blower for 1100 & 1200 Series Tractor

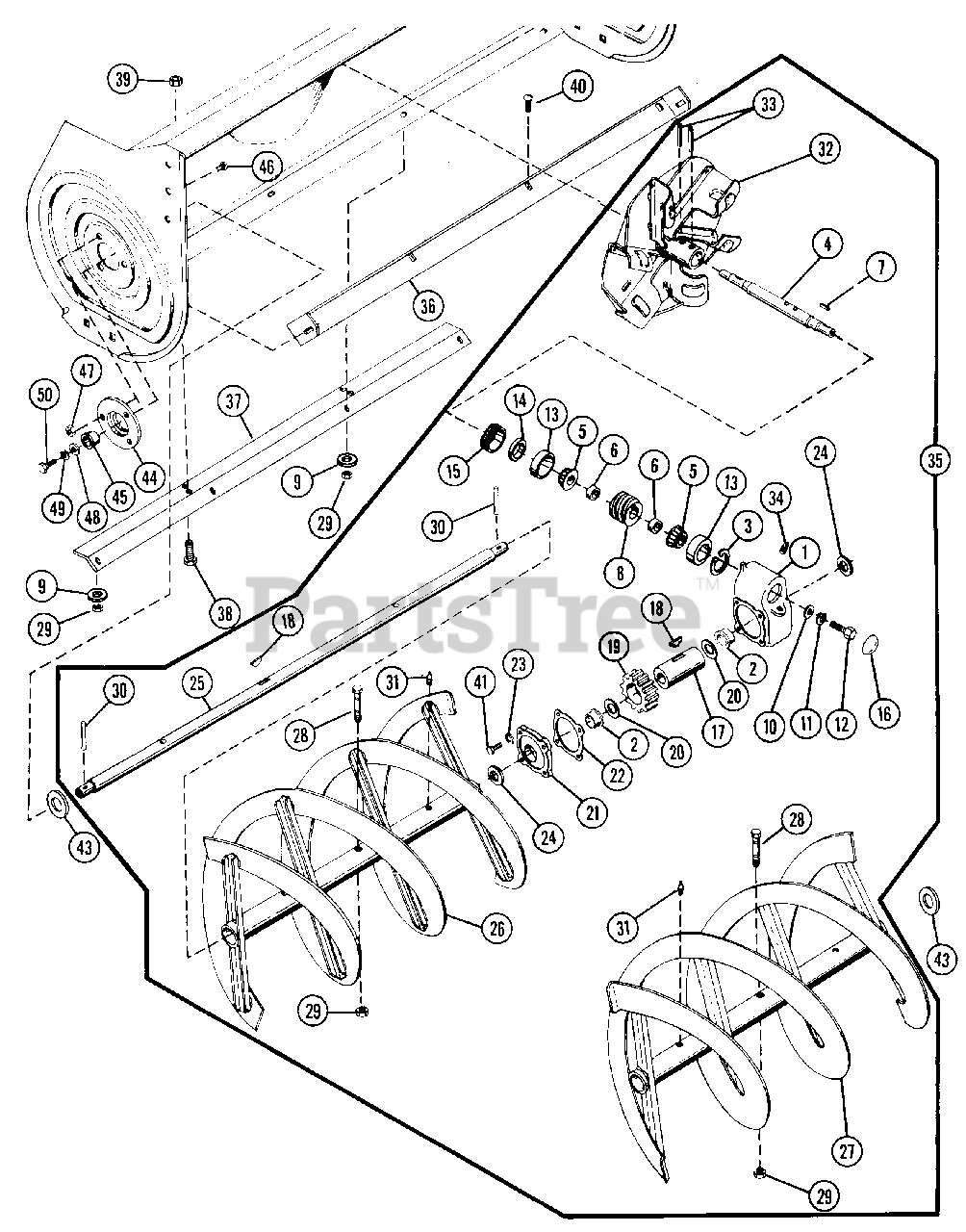

GEARCASE ASSEMBLY Parts Diagram

  • Title
1

Gravely 036920

GEAR CASE
(Superseded to 02400200)

$

$

Not available

2

Gravely 036860

BUSHING, FLANGE 1.62X1.87X11
(Superseded to 05505900)

$14.99

$

In Stock, only 2 left!

0

3

Gravely 036921

SNAP RING, INTERNAL
(Superseded to 05707500)

$9.49

$

In Stock, Qty 11

0

4

Gravely 036851

WORM SHAFT
(Superseded to 03519400)

$218.99

$

In Stock, only 1 left!

0

5

Gravely 035982

BEARING CONE, .75 I.D.
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

6

Gravely 036852

BEARING SPACER
(Superseded to 00200500)

$7.49

$

In Stock, only 2 left!

0

7

Gravely 036230

KEY, STRAIGHT SAE 1035
(Superseded to 06601300)

$1.49

$

In Stock, Qty 5

0

8

Gravely 036853

WORM
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

9

Gravely 120394

WASHER, .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 120393

WASHER, .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 131099

WASHER, LOCK 3/8
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

12

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 035983

BEARING CUP
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 036854

SEAL
(Superseded to 05606100)

$11.99

$

In Stock, Qty 20+

0

15

Gravely 036855

ADJUSTMENT PLUG
(Superseded to 02401500)

$92.99

$

Usually ships in 4-12 days

0

16

Gravely 036856

DUST CAP
(Superseded to 00403700)

$18.99

$

In Stock, only 1 left!

0

17

Gravely 036857

GEAR CASE SHAFT
(Superseded to 02406400)

$180.99

$

Usually ships in 4-12 days

0

18

Gravely 124551

KEY, WOODRUFF 1/4X7/8 HRD #A
(Superseded to 06608800)

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 036858

WORM GEAR
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

20

Gravely 036859

WASHER, 1.625X2.500X.012
(Superseded to 06408700)

$11.99

$

In Stock, only 4 left!

0

21

Gravely 036861

GEAR CASE COVER
(Superseded to 02401300)

$136.99

$

Usually ships in 4-12 days

0

22

Gravely 036862

GASKET
(Superseded to 00200800)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 121753

WASHER, LOCK 1/4
(Superseded to 21051100)

$

$

Not available

24

Gravely 036863

SEAL, 1-5/8 NOM.
(Superseded to 05607000)

$9.99

$

In Stock, Qty 20+

0

25

Gravely 036864

RAKE SHAFT
(Superseded to 03519500)

$

$

Not available

26

Gravely 036865

RIGHT RAKE
(Superseded to 52412600)

$

$

Not available

27

Gravely 036866

LEFT RAKE
(Superseded to 52412500)

$

$

Not available

28

Gravely 036867

SHEAR BOLT
(Superseded to 51001500)

$4.99

$

In Stock, Qty 20+

0

29

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 456542

PIN, SPRING .187X1.500
(Superseded to 05809400)

$

$

Not available

31

Gravely 036160

FITTING, SPIN DRIVE ZERK
(Superseded to 07012600)

$

$

Not available

32

Gravely 036868

FAN
(Superseded to 02437651)

$281.99

$

Usually ships in 4-12 days

0

33

Gravely 036869

PIN, ROLL .312X1.75
(Superseded to 05801500)

$2.49

$

In Stock, Qty 6

0

34

Gravely 035945

PIPE PLUG
(Superseded to 00113800)

$5.99

$

Usually ships in 4-12 days

0

35

Gravely 036919

BLOWER GEAR CASE ASSEMBLY
(Superseded to 53502200)

$

$

Not available

36

Gravely 036881

SCRAPER BLADE

$

$

Not available

37

Gravely 036882

BLADE BRACE
(Superseded to 03519343)

$

$

Not available

38

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 126227

BOLT, 3/8-16X.75 RD HD SQ NK
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

41

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

43

Gravely 036870

WASHER, 1.00X1.50X.06
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 036871

BEARING SUPPORT
(Superseded to 05063300)

$29.99

$

In Stock, only 2 left!

0

45

Gravely 036872

BUSHING, FLANGE 1.00X1.125X.625
(Superseded to 05503500)

$12.99

$

In Stock, Qty 20+

0

46

Gravely 036873

BOLT, RIB NECK 1/4-20X.50
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

47

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 120386

WASHER, .307/.327X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

49

Gravely 131101

WASHER, LOCK 1/2
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

50

Gravely 180173

BOLT, HEX 1/2-13X1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0
