835014 - Gravely 38" Grass Bagger for 1100 & 1200 Series Tractor (SN: 000101 & Above) GRASS CATCHER 38" Parts Diagram

38" Grass Bagger for 1100 & 1200 Series Tractor

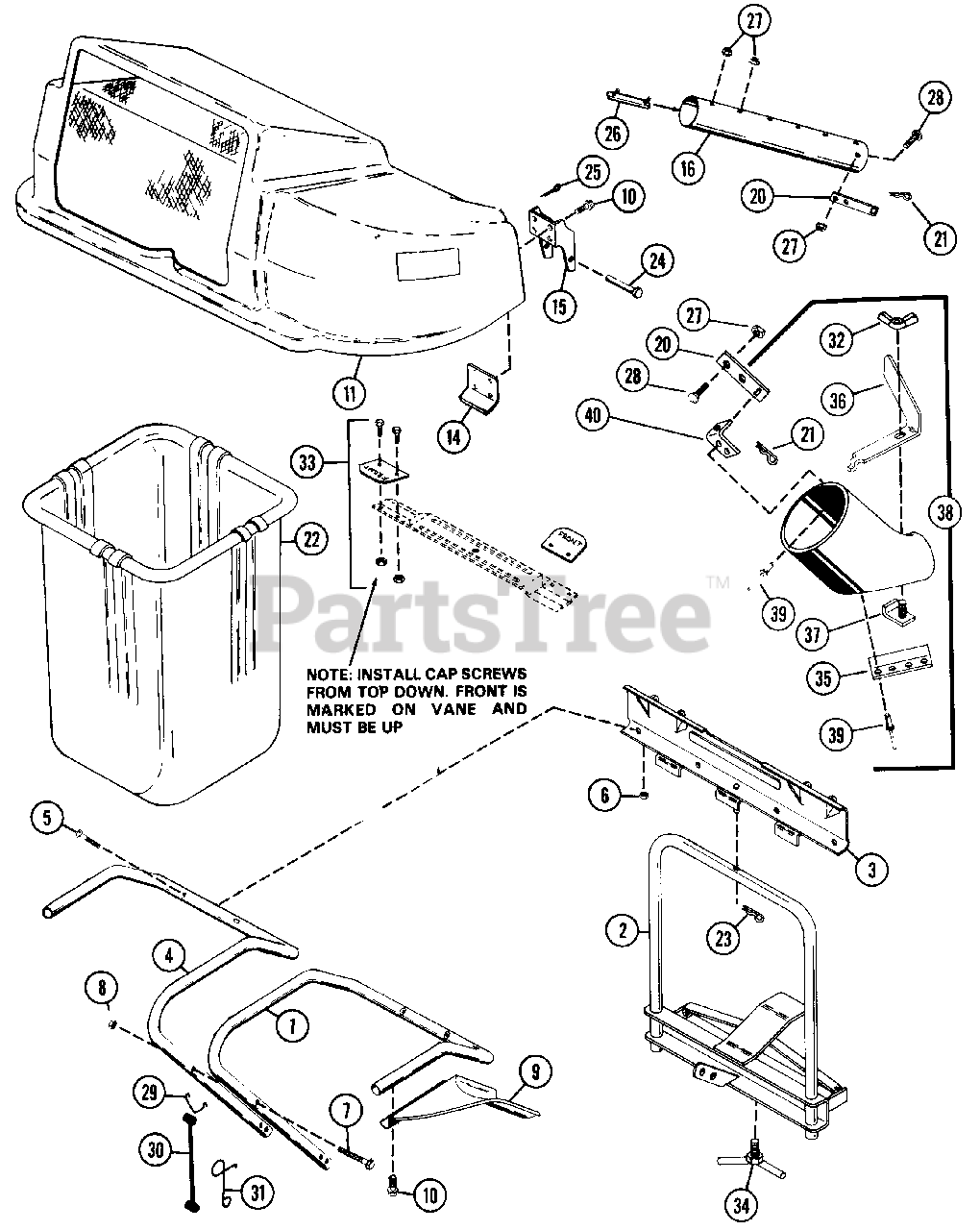

GRASS CATCHER 38" Parts Diagram

  • Title

1

Gravely 035805

TUBE, R.H. SUPPORT
(Superseded to 02530900)

$

$

Not available

2

Gravely 035806

ATTACHMENT FRAME

$

$

Not available

3

Gravely 035807

FRAME
(Superseded to 03526000)

$

$

Not available

4

Gravely 035808

TUBE, L.H. SUPPORT
(Superseded to 02536800)

$

$

Not available

5

Gravely 035809

SCREW, MACHINE 5/16-18X1.50
(Superseded to 06119100)

$

$

Not available

6

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 180046

CAP SCREW 1/4-2X2.25
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 035813

TUBE SUPPORT
(Superseded to 02537100)

$

$

Not available

10

Gravely 035814

SCREW, FLANGE 1/4-20X5/8
(Superseded to 07002200)

$

$

Not available

11

Gravely 035993

COVER
(Superseded to 02527400)

$

$

Not available

NS

Gravely 024588

DECAL, GRAVELY LOGO
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 035816

RETAINER
(Superseded to 02534800)

$

$

Not available

15

Gravely 035817

HINGE
(Superseded to 02531600)

$

$

Not available

16

Gravely 035818

TUBE BLANK
(Superseded to 01226700)

$

$

Not available

20

Gravely 035819

STRAP
(Superseded to 53506100)

$

$

Not available

21

Gravely 036566

HAIR PIN, COTTER 3/32X1-7/8
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 035821

BASKET
(Superseded to 02532600)

$

$

Not available

23

Gravely 036075

HAIR PIN, INTERNAL
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 035823

CLEVIS PIN
(Superseded to 02531700)

$

$

Not available

25

Gravely 112726

COTTER PIN 1/16X.50
(Superseded to 21049300)

$

$

Not available

26

Gravely 035825

CLIP
(Superseded to 02533300)

$

$

Not available

27

Gravely 424215

NUT, FLANGE 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 110356

BOLT, CARRIAGE 1/4-20X.50
(Superseded to 21048900)

$

$

Not available

29

Gravely 035828

ANCHOR
(Superseded to 02533000)

$

$

Not available

30

Gravely 035829

STRAP
(Superseded to 07507500)

$14.99

$

Usually ships in 4-12 days

0

31

Gravely 035830

HOOK
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

32

Gravely 148313

NUT, WING 5/16-18
(Superseded to 06503800)

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 035832

VANE ASM.
(Superseded to 53504600)

$52.99

$

Usually ships in 4-12 days

0

Gravely 036779

VANES

$

$

Not available

Gravely 181595

CAP SCREW 5/16-24X.75 GR. 8
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

Gravely 035834

LOCKNUT 5/16-24 GR. C
(Superseded to 06514500)

$

$

Not available

34

Gravely 035835

BOLT, T-HANDLE
(Superseded to 03525900)

$

$

Not available

35

Gravely 035836

CHUTE EXTENSION
(Superseded to 02532200)

$

$

Not available

36

Gravely 035837

BOOT STRAP
(Superseded to 03536400)

$

$

Not available

37

Gravely 035838

CONE CLIP
(Superseded to 02532300)

$

$

Not available

38

Gravely 035839

BOOT ASM.
(Superseded to 53505600)

$

$

Not available

Gravely 036780

BOOT W/DECAL 36781 BOOT, 26850 DECAL
(Superseded to 53505600)

$

$

Not available

39

Gravely 036782

RIVET
(Superseded to 06806200)

$1.49

$

Usually ships in 4-12 days

0

40

Gravely 036783

RETAINER
(Superseded to 02539600)

$

$

Not available
