835013 - Gravely 42" Snow Blade for 1100 & 1200 Series Tractor (SN: 000101 & Above) DOZER BLADE 42" Parts Diagram

42" Snow Blade for 1100 & 1200 Series Tractor

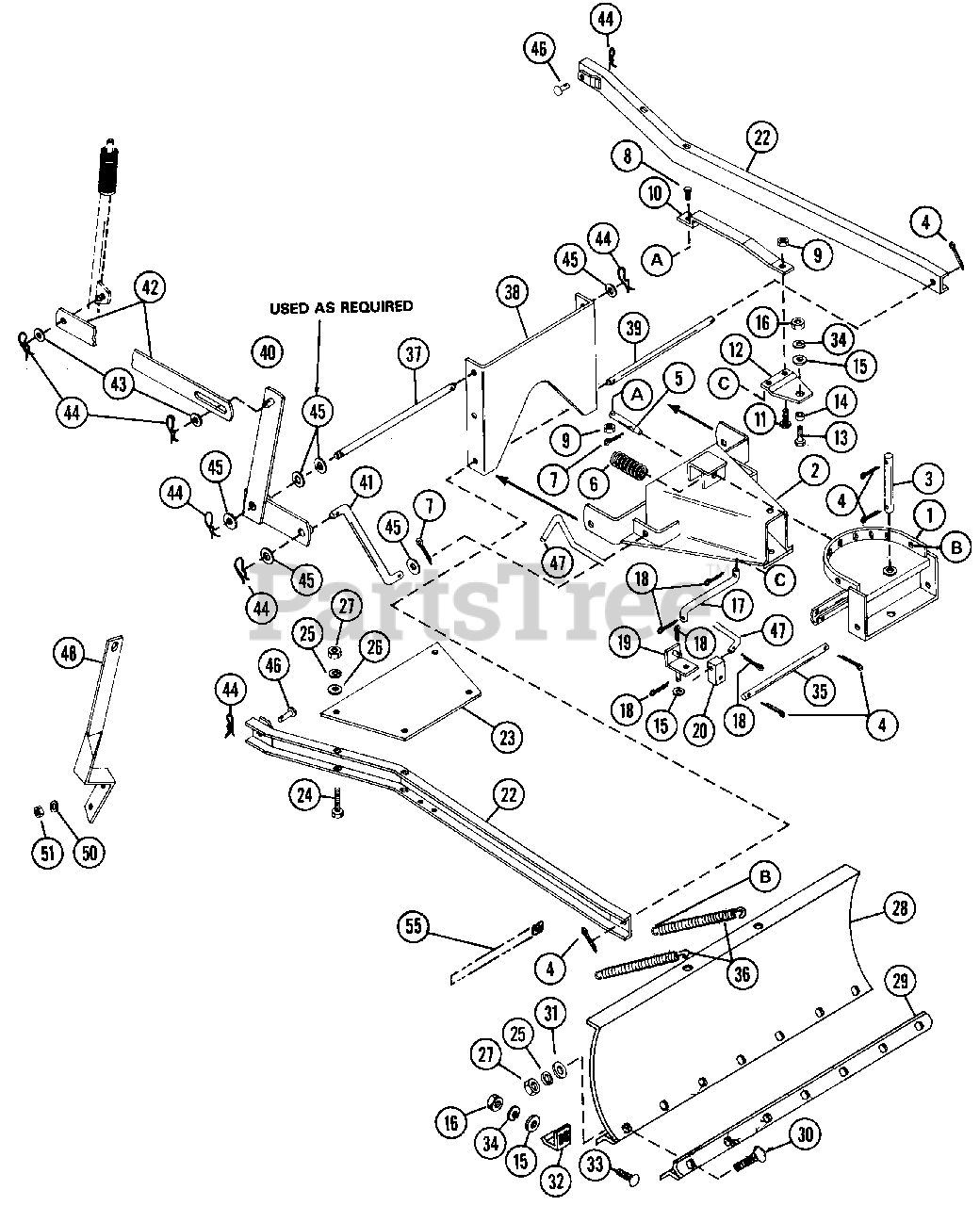

DOZER BLADE 42" Parts Diagram

  • Title
1

Gravely 036524

SUPPORT
(Superseded to 02918100)

$

$

Not available

2

Gravely 036525

PUSH FRAME
(Superseded to 03508700)

$

$

Not available

3

Gravely 036526

ROD
(Superseded to 02918400)

$

$

Not available

4

Gravely 187988

COTTER PIN 3/16X1
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

5

Gravely 036528

LATCH PIN
(Superseded to 03125400)

$

$

Not available

6

Gravely 036058

COMP. SPRING
(Superseded to 08313200)

$38.99

$

Usually ships in 4-12 days

0

7

Gravely 137185

COTTER PIN 1/8X1
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

8

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

9

Gravely 416310

LOCKNUT 5/16-18
(Superseded to 06530300)

$3.99

$

In Stock, only 3 left!

0

10

Gravely 036791

STRAP
(Superseded to 02918300)

$

$

Not available

11

Gravely 126211

BOLT, CARRIAGE 5/16-18X5/8
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 036535

PIVOT PLATE

$

$

Not available

13

Gravely 180122

BOLT, HEX 3/8-16X1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

14

$

$

Not available

15

Gravely 120388

WASHER 3/8
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 120377

NUT 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 036540

ROD
(Superseded to 02918200)

$

$

Not available

18

Gravely 177923

COTTER PIN 1/8X.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

19

$

$

Not available

20

Gravely 036543

UNIVERSAL BLOCK JOINT

$

$

Not available

22

Gravely 036544

CHANNEL
(Superseded to 03508000)

$

$

Not available

23

Gravely 036545

STIFFENER PLATE
(Superseded to 03508800)

$

$

Not available

24

Gravely 180091

BOLT, HEX 5/16-18X2.50
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 131099

LOCKWASHER 5/16
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

26

Gravely 120386

WASHER
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 120376

NUT 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

28

Gravely 036550

BLADE
(Superseded to 02918500)

$279.99

$

Usually ships in 4-12 days

0

29

Gravely 036533

WEAR PLATE
(Superseded to 02918600)

$

$

Not available

30

Gravely 126358

BOLT, CARRIAGE 5/16-18X1
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 120394

WASHER, 5/16
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 036554

SKID SHOE
(Superseded to 03127151)

$51.99

$

Usually ships in 4-12 days

0

33

Gravely 120915

BOLT, CARRIAGE 3/8-16X1

$

$

Not available

34

Gravely 120382

LOCKWASHER 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 036557

ROD
(Superseded to 02918700)

$

$

Not available

36

Gravely 036558

EXTENSION SPRING
(Superseded to 08313300)

$45.99

$

In Stock, only 2 left!

0

37

Gravely 036559

MOUNT ROD
(Superseded to 03508200)

$

$

Not available

38

Gravely 036560

PIVOT SUPPORT
(Superseded to 03508100)

$

$

Not available

39

Gravely 036561

PIVOT ROD
(Superseded to 03508300)

$

$

Not available

40

Gravely 036562

LIFT BELLCRANK
(Superseded to 03581500)

$

$

Not available

41

Gravely 036563

LIFT LINK
(Superseded to 03581600)

$

$

Not available

42

Gravely 036564

LIFT STRAP
(Superseded to 03508400)

$

$

Not available

43

Gravely 120389

WASHER 1/2
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

44

Gravely 036566

HAIR PIN, INTERNAL
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

45

Gravely 131016

WASHER 5/8
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

46

Gravely 036568

CLEVIS PIN
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

47

Gravely 036569

CONTROL ROD
(Superseded to 03509400)

$

$

Not available

48

Gravely 036570

CONTROL SUPPORT
(Superseded to 03507900)

$

$

Not available

50

Gravely 131099

LOCKWASHER 5/16
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

51

Gravely 120376

NUT 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

55

Gravely 024588

DECAL
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days
