835012 - Gravely 26" Tiller for 1100 & 1200 Series Tractor (SN: 000101 & Above) TINE ASSEMBLIES Parts Diagram

26" Tiller for 1100 & 1200 Series Tractor

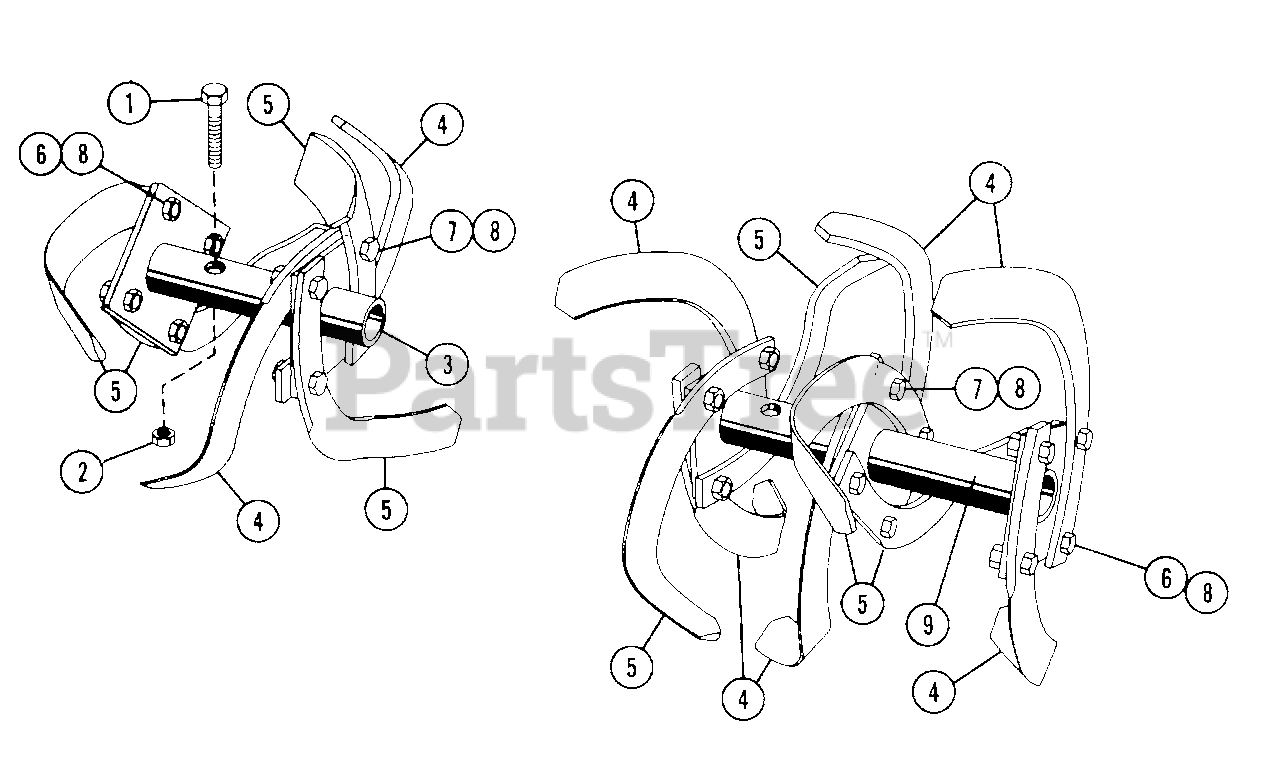

TINE ASSEMBLIES Parts Diagram

  • Title
1

Gravely 180128

BOLT, HEX 3/8-16X1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 035948

SHORT TINE TUBE
(Superseded to 03527500)

$

$

Not available

4

Gravely 035949

TINE, L.H.
(Superseded to 03527700)

$

$

Not available

5

Gravely 035950

TINE, R.H.
(Superseded to 03527800)

$

$

Not available

6

Gravely 180145

BOLT, HEX 7/16-14X1
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

7

Gravely 271547

BOLT, HEX 7/16-14X1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 419456

NUT, LOCK 7/16-14
(Superseded to 21068300)

$

$

Not available

9

Gravely 035954

LONG TINE TUBE
(Superseded to 03527900)

$

$

Not available
