835012 - Gravely 26" Tiller for 1100 & 1200 Series Tractor (SN: 000101 & Above) TILLER CHAIN CASE Parts Diagram

26" Tiller for 1100 & 1200 Series Tractor

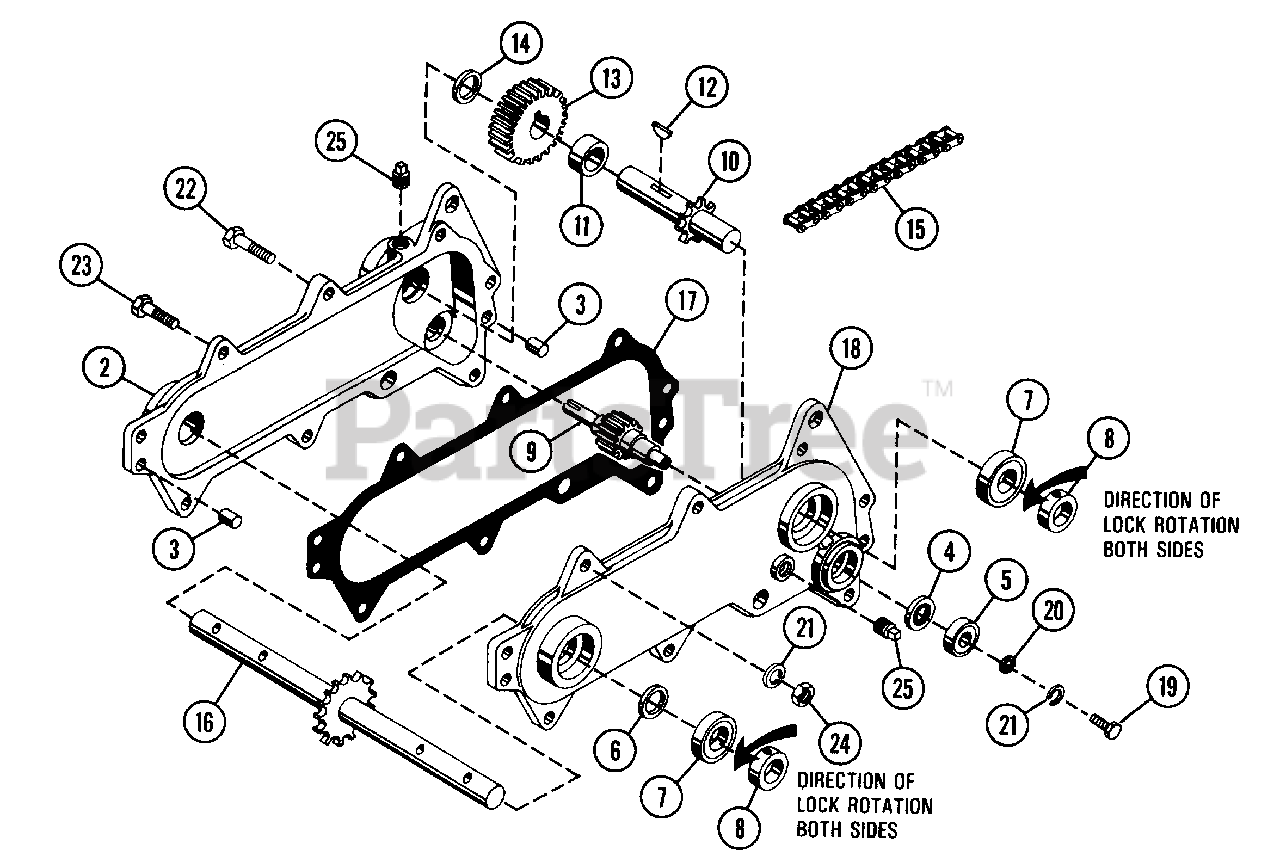

TILLER CHAIN CASE Parts Diagram

  • Title
1

Gravely 035921

CHAIN CASE ASM.

$

$

Not available

2

Gravely 035922

CHAIN CASE
(Superseded to 03529200)

$

$

Not available

3

Gravely 035923

DOWEL PIN
(Superseded to 00406700)

$

$

Not available

4

Gravely 035924

OIL SEAL
(Superseded to 05611100)

$

$

Not available

5

Gravely 035925

RADIAL BRG.
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

6

Gravely 035926

OIL SEAL
(Superseded to 05611200)

$

$

Not available

7

Gravely 035927

BALL BRG.
(Superseded to 05414100)

$

$

Not available

8

Gravely 035928

COLLAR
(Superseded to 03531900)

$

$

Not available

9

Gravely 035929

DRIVE SHAFT
(Superseded to 03529300)

$

$

Not available

10

Gravely 035930

DRIVEN SHAFT
(Superseded to 03529100)

$

$

Not available

11

Gravely 035931

SPACER
(Superseded to 03529400)

$

$

Not available

12

Gravely 124553

KEY, WOODRUFF .250X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

13

Gravely 035933

GEAR, 47T
(Superseded to 03529500)

$

$

Not available

14

Gravely 035934

SPACER
(Superseded to 03529600)

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 035935

ROLLER CHAIN
(Superseded to 03529700)

$

$

Not available

16

Gravely 035936

TINE SHAFT
(Superseded to 03529800)

$

$

Not available

17

Gravely 035937

GASKET
(Superseded to 03529900)

$

$

Not available

18

Gravely 035938

CHAIN CASE COVER
(Superseded to 03530000)

$

$

Not available

19

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 120214

WASHER, LOCK 5/16 REG.6
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 180087

BOLT, HEX 5/16-18X2
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 180083

BOLT, HEX 5/16-18X1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

24

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

25

Gravely 035945

PIPE PLUG
(Superseded to 00113800)

$5.99

$

Usually ships in 4-12 days

0
