835008 - Ariens Tiller Attachment (SN: 000101 & Above) Tine Assemblies Parts Diagram

Tiller Attachment

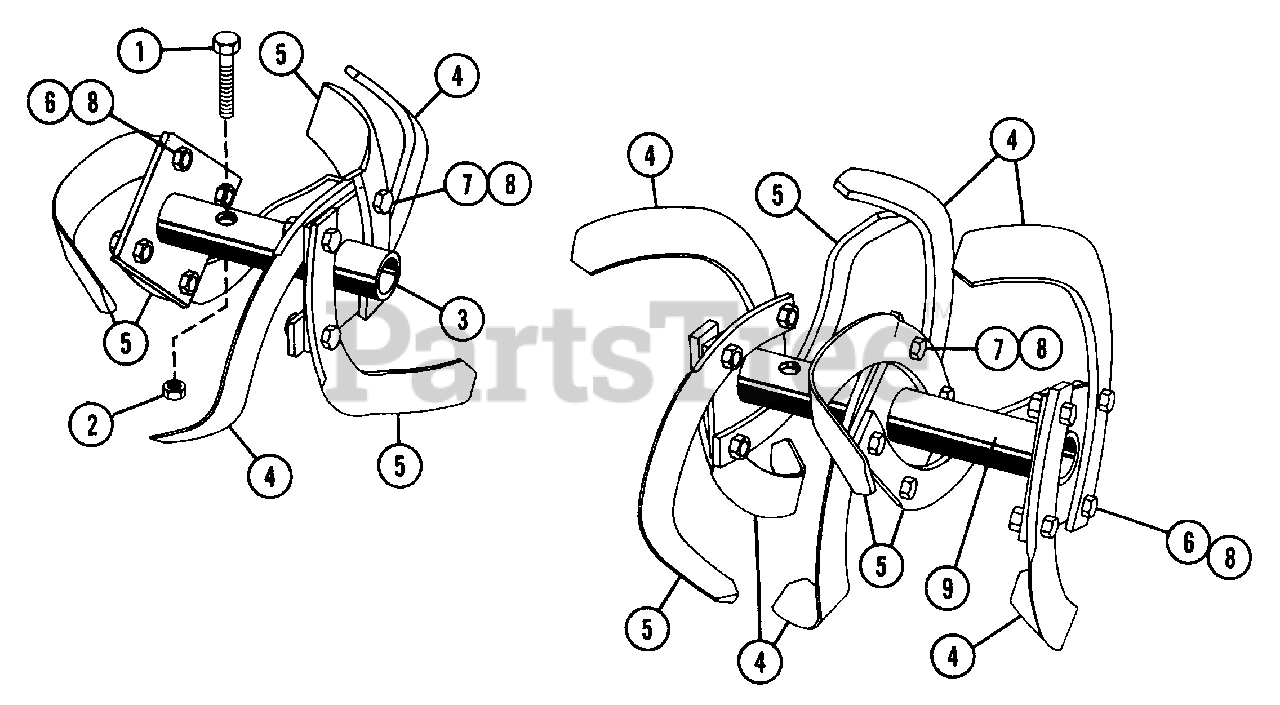

Tine Assemblies Parts Diagram

  • Title
1

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03527500

SHORT TINE TUBE WELDMENT

$

$

Not available

4

Ariens 03527700

TINE L.H.

$

$

Not available

5

Ariens 03527800

TINE R.H.

$

$

Not available

6

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

7

Ariens 05921000

BLT-HEX .44-14X1.50 GR5
(Superseded to 05962800)

$3.49

$

In Stock, Qty 11

0

8

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$2.99

$

In Stock, Qty 12

0

9

Ariens 03527900

LONG TINE TUBE WELDMENT

$

$

Not available
