835008 - Ariens Tiller Attachment (SN: 000101 & Above) Rotary Tiller 26" Parts Diagram

Tiller Attachment

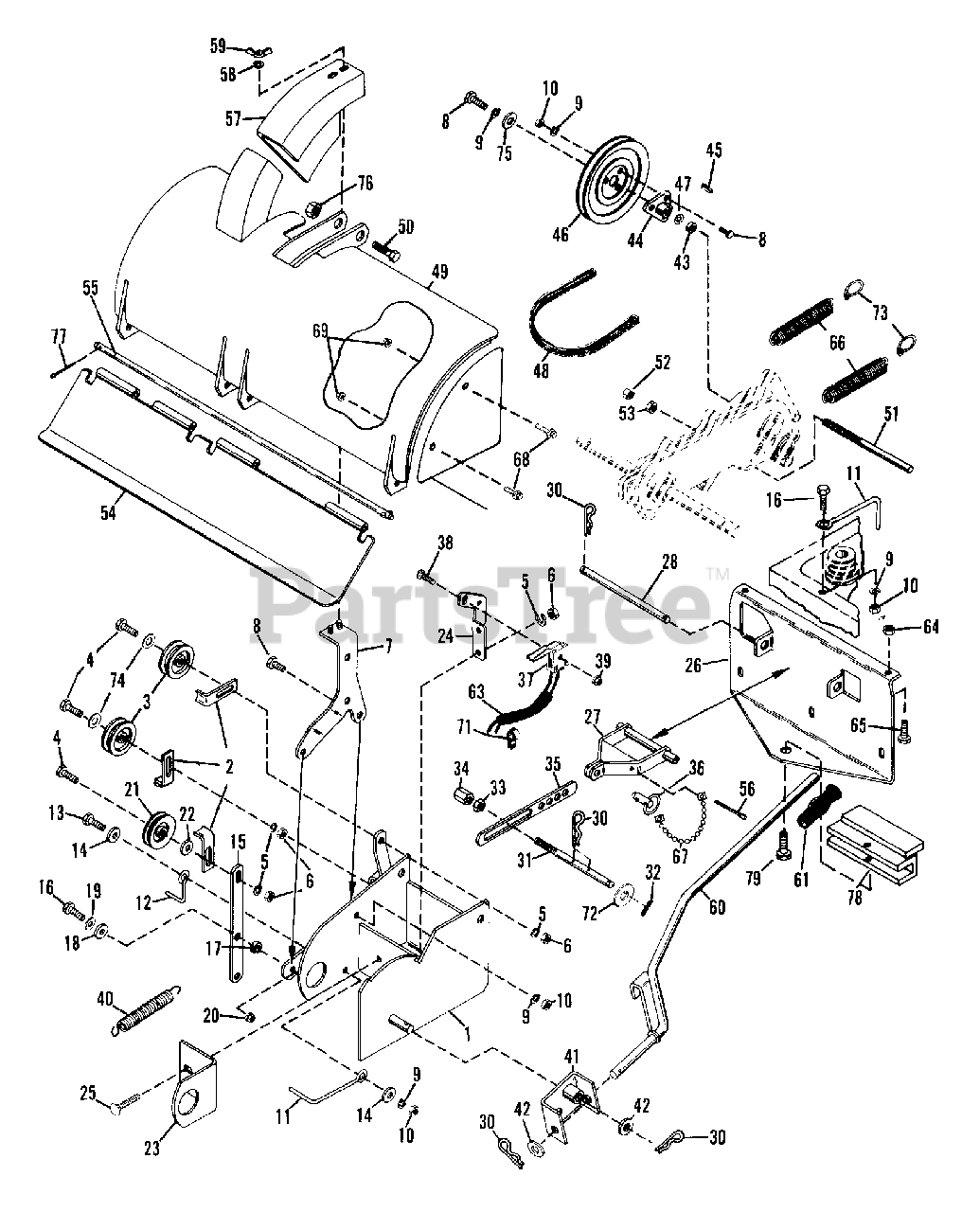

Rotary Tiller 26" Parts Diagram

  • Title

1

Ariens 03526600

FRAME WELDMENT

$

$

Not available

2

Ariens 03411000

BELT FINGER

$

$

Not available

3

Ariens 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

4

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

6

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03527200

BELT GUARD BRACKET

$

$

Not available

8

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

11

Ariens 03530600

BELT FINGER

$

$

Not available

12

Ariens 03533000

BELT FINGER

$

$

Not available

13

Ariens 05913400

BLT-HEX .31-18X1.25 PL GR5
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

14

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 03528600

CLUTCH ARM

$

$

Not available

16

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

19

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

20

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07310900

IDLER-V 3.06 X .38

$23.99

$

Usually ships in 4-12 days

0

22

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 03528400

CHAIN CASE MOUNTING BRACKET

$

$

Not available

24

Ariens 03528300

SWITCH BRACKET

$

$

Not available

25

Ariens 06202800

BLT-RDHDSQNK .38-16X1.0 GR5PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

26

Ariens 03528100

TILLER HITCH PLATE

Note: (DRAW BAR)

$

$

Not available

27

Ariens 03528000

DEPTH CONTROL

$

$

Not available

28

Ariens 03530100

MTG. PIN

$

$

Not available

30

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 2 left!

0

31

Ariens 03530300

PIN

$

$

Not available

32

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 03530400

ADJUSTMENT ROD

$

$

Not available

35

Ariens 03538500

STEERING COLUMN
(Superseded to 03505300)

$

$

Not available

36

Ariens 03532700

LATCH PIN

$

$

Not available

37

Ariens 02707800

SWITCH INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

38

Ariens 06105000

SCR-MCH 10-24X1.00 SLRH PL

$

$

Not available

39

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$0.99

$

In Stock, Qty 5

0

40

Ariens 08306800

SG-TENS .091X.73X5.28 WLD 30
(Superseded to 08306851)

$

$

Not available

41

Ariens 03527400

HANDLE PIVOT

$

$

Not available

42

Ariens 06408800

WSHR-FL-STL .755X1.250X.125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

43

Ariens 03530500

SPACER .765X1.000X.781

$

$

Not available

44

Ariens 00286200

HUB
(Superseded to 50202100)

$85.99

$

In Stock, only 3 left!

0

45

Ariens 06601700

KEY-SQ .188X.625X.188 SAE 61

$3.99

$

Usually ships in 4-12 days

0

46

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$51.99

$

In Stock, Qty 5

0

47

Ariens 06420700

WSHR-FL-STL .781X1.000X.015
(Superseded to 06420600)

$2.99

$

Usually ships in 4-12 days

0

48

Ariens 07212800

V-BELT, HA-WRAPPED

$39.99

$

In Stock, only 1 left!

0

49

Ariens 53503800

TINE HOOD ASSEMBLY

$

$

Not available

50

Ariens 05912100

BLT-HEX .31-18X3.00 PL GR5
(Superseded to 05962500)

$3.99

$

In Stock, only 4 left!

0

51

Ariens 03530700

LIFT PIN

$

$

Not available

52

Ariens 06505300

NUT-LK-CTR .75-10 PL

$

$

Not available

53

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

54

Ariens 03527100

TAIL BOARD WELDMENT

$

$

Not available

55

Ariens 03527600

ROD - TAIL BOARD HINGE

$

$

Not available

56

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

57

Ariens 03528700

SHIELD

$

$

Not available

58

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

59

Ariens 06501200

NUT-WING .250-20 YWZC

$2.49

$

Usually ships in 4-12 days

0

60

Ariens 03527000

LIFT HANDLE WELDMENT

$

$

Not available

61

Ariens 07510800

GRIP

$

$

Not available

63

Ariens 03530800

WIRE HARNESS

$

$

Not available

64

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

65

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

66

Ariens 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 6

0

67

Ariens 02716900

CHAIN

$

$

Not available

68

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

69

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

70

Ariens 03532000

SIDE PLATE

$

$

Not available

71

Ariens 07510700

WIRE CLIP

$

$

Not available

72

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

73

Ariens 03533600

SPRING HOOK

$

$

Not available

74

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

75

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

76

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

77

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

78

Ariens 03532900

ADAPTOR

$

$

Not available

79

Ariens 05914300

BLT-HEX .50-13X2.25 PL GR5
(Superseded to 05961000)

$3.49

$

In Stock, Qty 5

0
