835008 - Ariens Tiller Attachment (SN: 000101 & Above) Chain Case For 26" Tiller Parts Diagram

Tiller Attachment

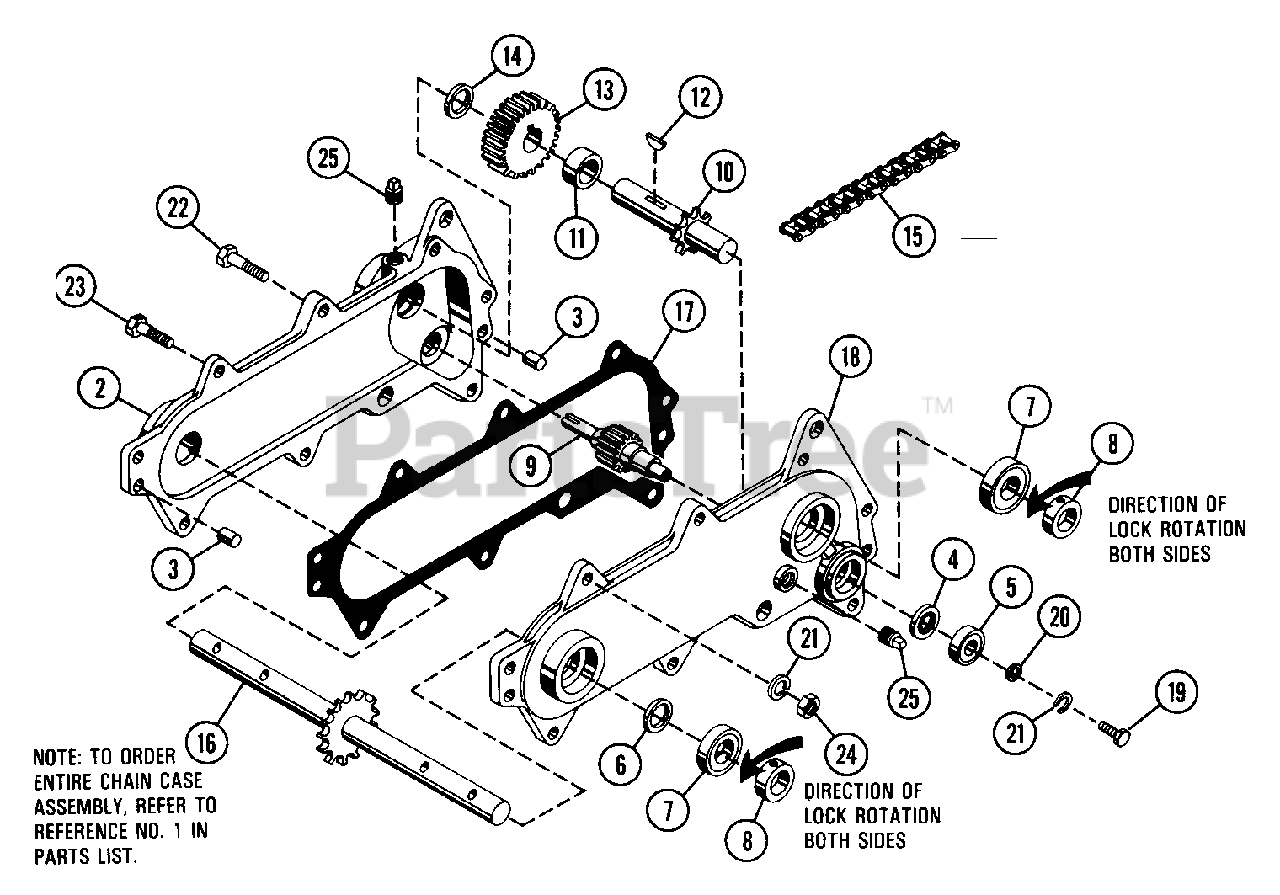

Chain Case For 26" Tiller Parts Diagram

  • Title

1

Ariens 63504700

CHAIN CASE ASSEMBLY

$

$

Not available

2

Ariens 03529200

CHAIN CASE

$

$

Not available

3

Ariens 00406700

DOWEL PIN

$

$

Not available

4

Ariens 05611100

SEAL 1.00X1.50X.188

$

$

Not available

5

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

6

Ariens 05611200

SEAL 1.125X1.874X.250

$

$

Not available

7

Ariens 05414100

BRG-BALL 1.125X2MMX18MM

$

$

Not available

8

Ariens 03531900

COLLAR-BEARING

$

$

Not available

9

Ariens 03529300

DRIVE SHAFT

$

$

Not available

10

Ariens 03529100

DRIVEN SHAFT

$

$

Not available

11

Ariens 03529400

SPACER 1.137X1.50X.656

$

$

Not available

12

Ariens 06600200

KEY-WDRF .25X1.00X.438 SAE15

$3.99

$

In Stock, only 2 left!

0

13

Ariens 03529500

GEAR 47T

$

$

Not available

14

Ariens 03529600

SPACER 1.006X1.438X.467

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 03529700

ROLLER CHAIN #60 44P

$

$

Not available

16

Ariens 03529800

TINE SHAFT

$

$

Not available

17

Ariens 03529900

GASKET

$

$

Not available

18

Ariens 03530000

CHAIN CASE COVER

$

$

Not available

19

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

21

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 05917000

BLT-HEX .31-18X2.00 PL GR5
(Superseded to 05957200)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 12

0

24

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

25

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0
