835002 - Ariens Dozer Blade (SN: 000101 & Above) Dozer Blade 42" Parts Diagram

Dozer Blade

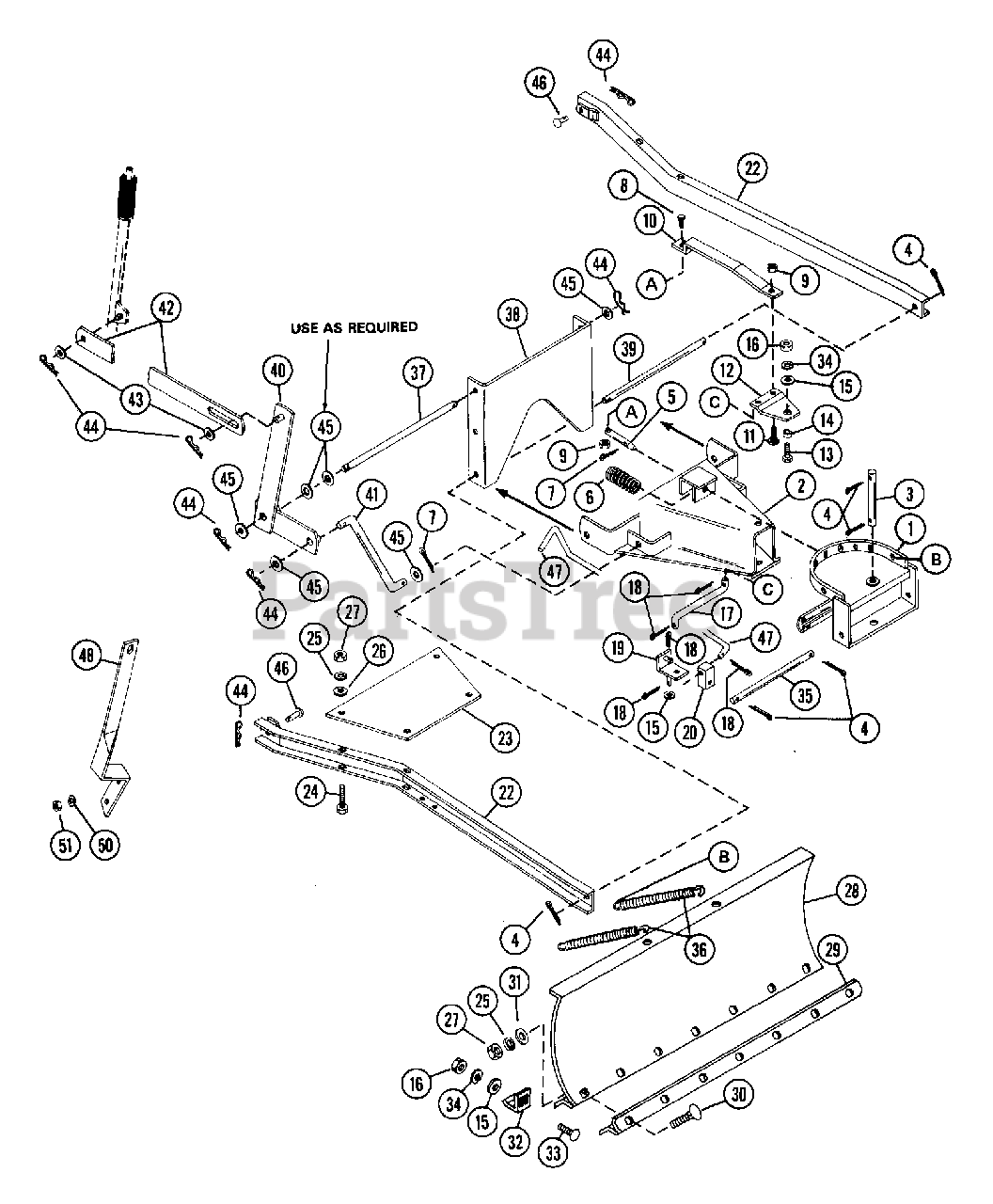

Dozer Blade 42" Parts Diagram

  • Title

1

Ariens 02918100

SUPPORT

$

$

Not available

2

Ariens 03508700

PUSH FRAME

$

$

Not available

3

Ariens 02918400

ROD

$

$

Not available

4

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

$1.99

$

In Stock, only 2 left!

0

5

Ariens 03125400

LATCH PIN

$

$

Not available

6

Ariens 08313200

SG-COMP .080X.85X1.44

$38.99

$

Usually ships in 4-12 days

0

7

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

8

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

9

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 02918300

STRAP

$

$

Not available

11

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 03125200

PIVOT PLATE

$

$

Not available

13

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 02914000

SPACER .406X.749X.162

$

$

Not available

15

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 02918200

ROD

$

$

Not available

18

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

19

Ariens 03126900

ANGLE

$

$

Not available

20

Ariens 03126800

UNIVERSAL BLOCK JOINT

$

$

Not available

22

Ariens 03543800

CHANNEL
(Superseded to 03508000)

$

$

Not available

23

Ariens 03544000

STIFFNER PLATE
(Superseded to 03508800)

$

$

Not available

24

Ariens 05916300

BLT-HEX .31-18X2.50 PL GR5
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

27

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

28

Ariens 02918500

WELDMENT, SNOW BLADE

$279.99

$

Usually ships in 4-12 days

0

29

Ariens 02918600

WEAR PLATE

$

$

Not available

30

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 03127100

SKID SHOE

$

$

Not available

33

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

34

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 02918700

ROD

$

$

Not available

36

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$45.99

$

In Stock, only 2 left!

0

37

Ariens 03508200

MOUNT ROD

$

$

Not available

38

Ariens 03544200

PIVOT SUPPORT
(Superseded to 03508100)

$

$

Not available

39

Ariens 03508300

PIVOT ROD

$

$

Not available

40

Ariens 03544400

LIFT BELLCRANK
(Superseded to 03581500)

$

$

Not available

41

Ariens 03508600

LIFT LINK
(Superseded to 03581600)

$

$

Not available

42

Ariens 03544600

LIFT STRAP
(Superseded to 03508400)

$

$

Not available

43

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

45

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

Usually ships in 4-12 days

0

46

Ariens 03138100

PIN-CLEV .494X1.25 YWZC
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

47

Ariens 03509400

CONTROL ROD

$

$

Not available

48

Ariens 03544800

CONTROL SUPPORT
(Superseded to 03507900)

$

$

Not available

50

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0
