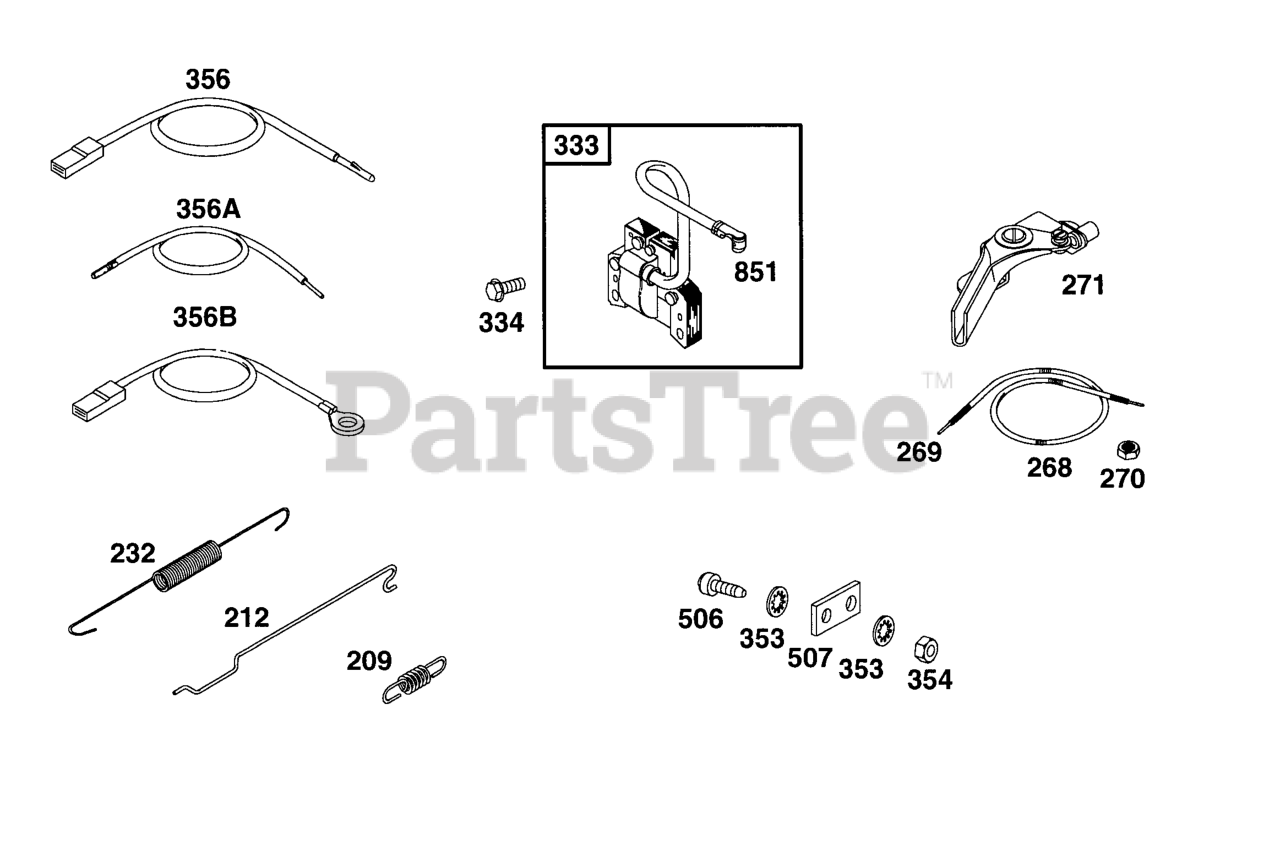

83412-0105-02 - Briggs & Stratton Horizontal Engine Elect, Controls Parts Diagram

Horizontal Engine

Elect, Controls Parts Diagram

  • Title

209

Briggs & Stratton 262576

Spring-Governor

$5.49

$

Usually ships in 2-12 days

0

212

Briggs & Stratton 262695

Link-Governor

$7.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 262696

Spring-Link

$

$

Not available

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 496914

Armature-Magneto
(Superseded to 591420)

$53.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356A

Briggs & Stratton 493401

Wire-Stop
(Superseded to 690792)

$11.99

$

Usually ships in 2-12 days

0

356B

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 493400

Wire-Stop
(Superseded to 690791)

$11.99

$

In Stock, only 1 left!

0

506

Briggs & Stratton 90200

Screw-Slotted (8-32 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

Insulator-Terminal

$4.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
