83412-0105-02 - Briggs & Stratton Horizontal Engine Carburetor Assy Parts Diagram

Horizontal Engine

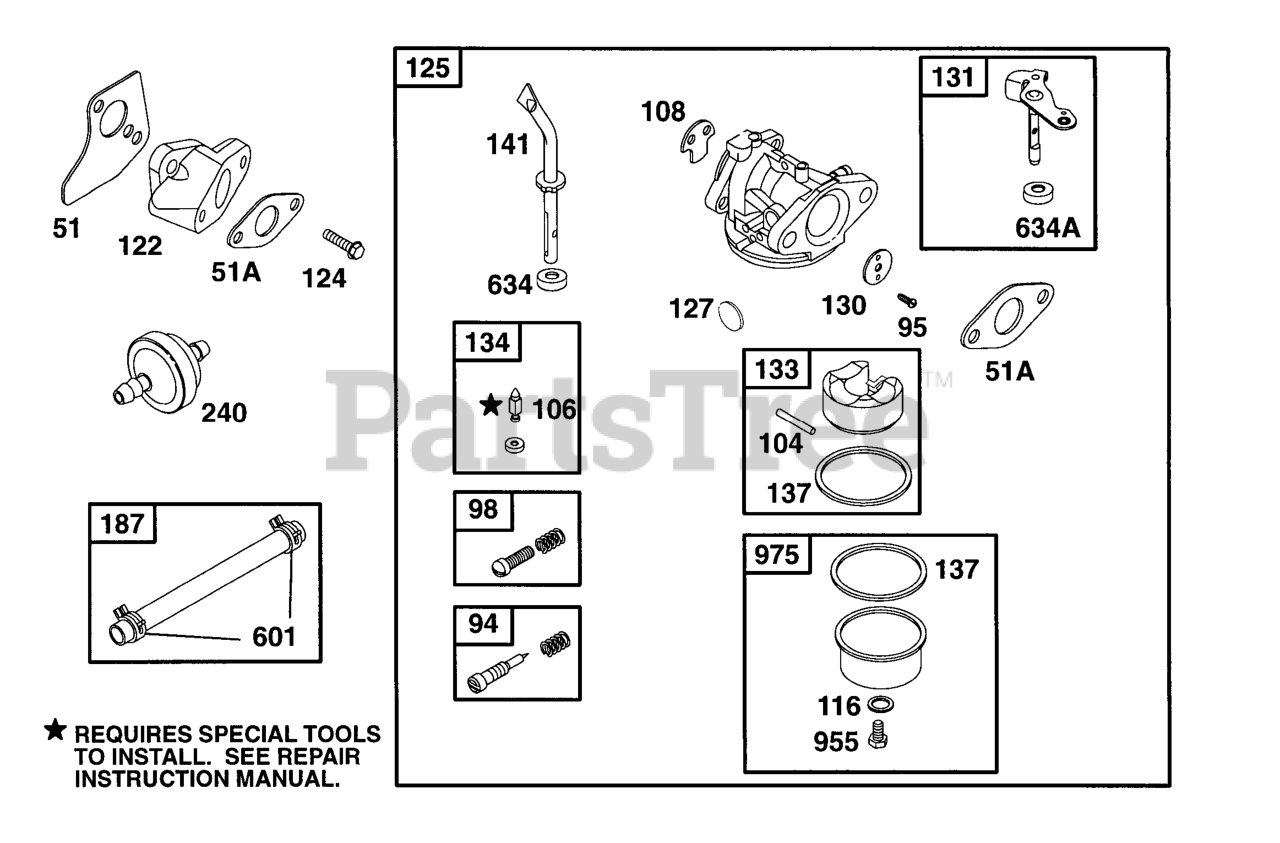

Carburetor Assy Parts Diagram

  • Title

51A

Briggs & Stratton 272295

Gasket-Intake
(Superseded to 692283)

Note: Included in Gasket Set-Part No. 397144

$4.49

$

In Stock, only 4 left!

0

51

Briggs & Stratton 272585

Gasket, Intake Port (2 Required)
(Superseded to 273113S)

Note: Included in Gasket Set-Part No. 397144

$4.49

$

In Stock, Qty 17

0

94

Briggs & Stratton 493765

Kit-Idle Mixture (Used On Carb. I.d. No. M24)

Note: Included in Carburetor Kit-Part No. 493762

$14.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 398185

Screw-Idle Speed (Lmt 26, 27, 28, 31)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Pin-Float Hinge Series
(Superseded to 797622)

Note: Included in Carburetor Kit-Part No. 493762

$3.99

$

In Stock, Qty 10

0

106

No Nomenclature

Note: Included in Carburetor Kit-Part No. 493762

$

$

Not available

108

Briggs & Stratton 223471

Valve, Choke Sold In Kit Only
(Superseded to 691182)

$9.49

$

Usually ships in 2-12 days

0

116

No Nomenclature

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937

$

$

Not available

122

Briggs & Stratton 213736

Spacer

$16.99

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 494466

Carburetor

$

$

Not available

127

No Nomenclature

Note: Included in Carburetor Kit-Part No. 493762

$

$

Not available

130

Briggs & Stratton 223470

Valve-Throttle
(Superseded to 691181)

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493556

Throttle-Shaft Kit

$16.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/seat (Pump Feed)

Note: Included in Carburetor Kit-Part No. 493762

$6.49

$

In Stock, Qty 20+

0

137

No Nomenclature

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937

$

$

Not available

141

Briggs & Stratton 231741

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

634

No Nomenclature

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937

$

$

Not available

634A

No Nomenclature

Note: Included in Carburetor Kit-Part No. 493762. Included in Carburetor Gasket Set-Part No. 490937

$

$

Not available

955

Briggs & Stratton 231373

Screw-Hex. Hd.

$5.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 398191

Bowl-Float
(Superseded to 796611)

$

$

Not available
