83412-0105-01 - Briggs & Stratton Horizontal Engine Crankshaft, Piston Grp Parts Diagram

Horizontal Engine

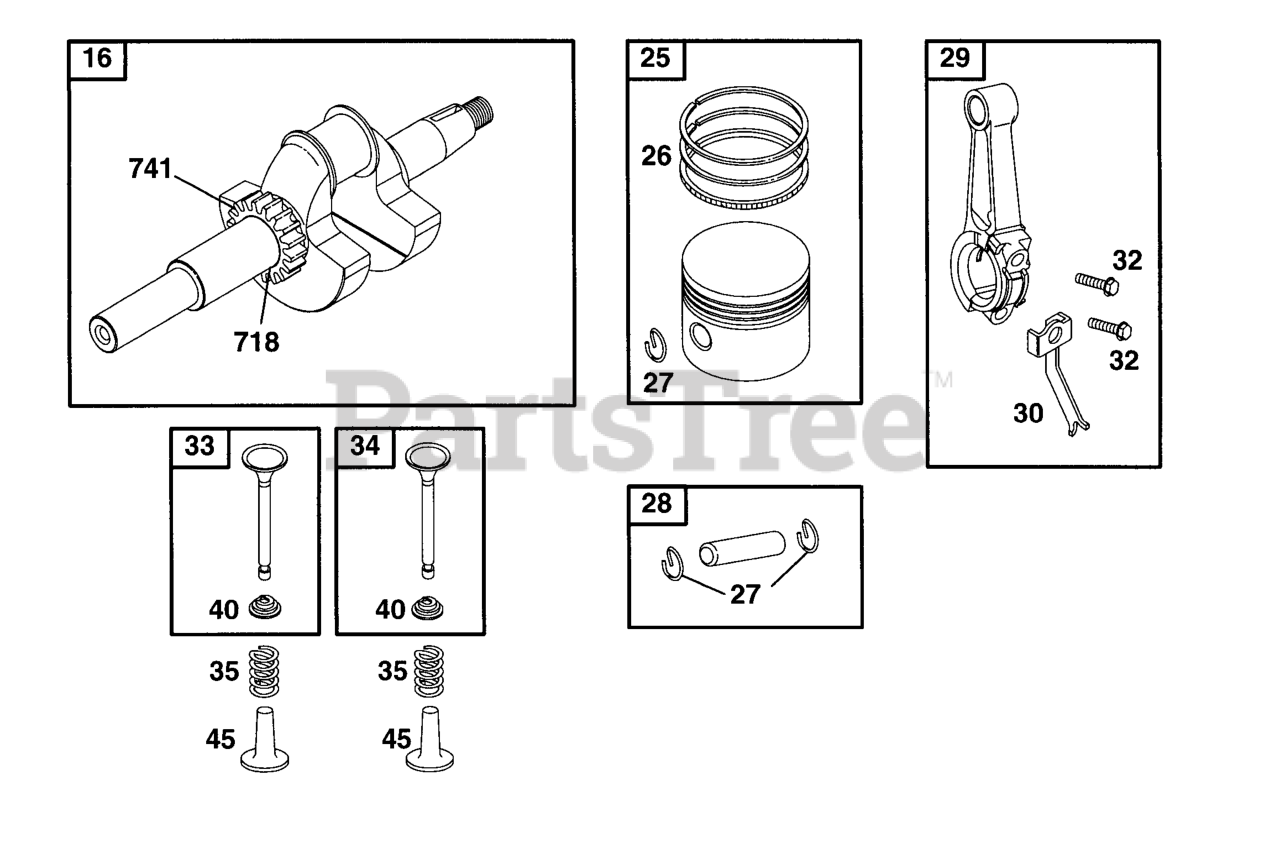

Crankshaft, Piston Grp Parts Diagram

  • Title

16

Briggs & Stratton 399006

Crankshaft

$142.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295587

Piston Assy-Std

$48.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295588

Piston Assy-010 (For 2-3/8" Bore)

$60.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295589

Piston Assy-020 (For 2-3/8" Bore)

$132.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 295590

Piston Assy-030 (For 2-3/8" Bore)

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294224

Ring Set-010 (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 294225

Ring Set-020 (.020" O.S.)

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294226

Ring Set-030

$57.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 294232

Ring Set-Std (Std.)

$

$

Not available

26

Briggs & Stratton 297201

Ring Set-Std Chr

$24.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 294367

Rod-Connecting (Standard)
(Superseded to 699655)

$39.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 296079

Rod-Connecting 020

$18.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 220670

Dipper-Connecting Rod
(Superseded to 691719)

$7.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

Screw, Hex Flange H
(Superseded to 691664)

$4.49

$

In Stock, only 1 left!

0

33

Briggs & Stratton 296676

Valve-Exhaust (Grooved Stem-Includes Retainer No. 93312)

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve-Intake (Grooved stem-includes Retainer)

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 499047

Pin-Locating

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261533

Gear, Timing
(Superseded to 691805)

Note: (For Plain Bearing 2 Piece Crankshaft)

$15.99

$

Usually ships in 2-12 days

0
