834035 - Gravely 40" Sno-Thro for GEM Tractor (SN: 000101 & Above) Gear Case Parts Diagram

40" Sno-Thro for GEM Tractor

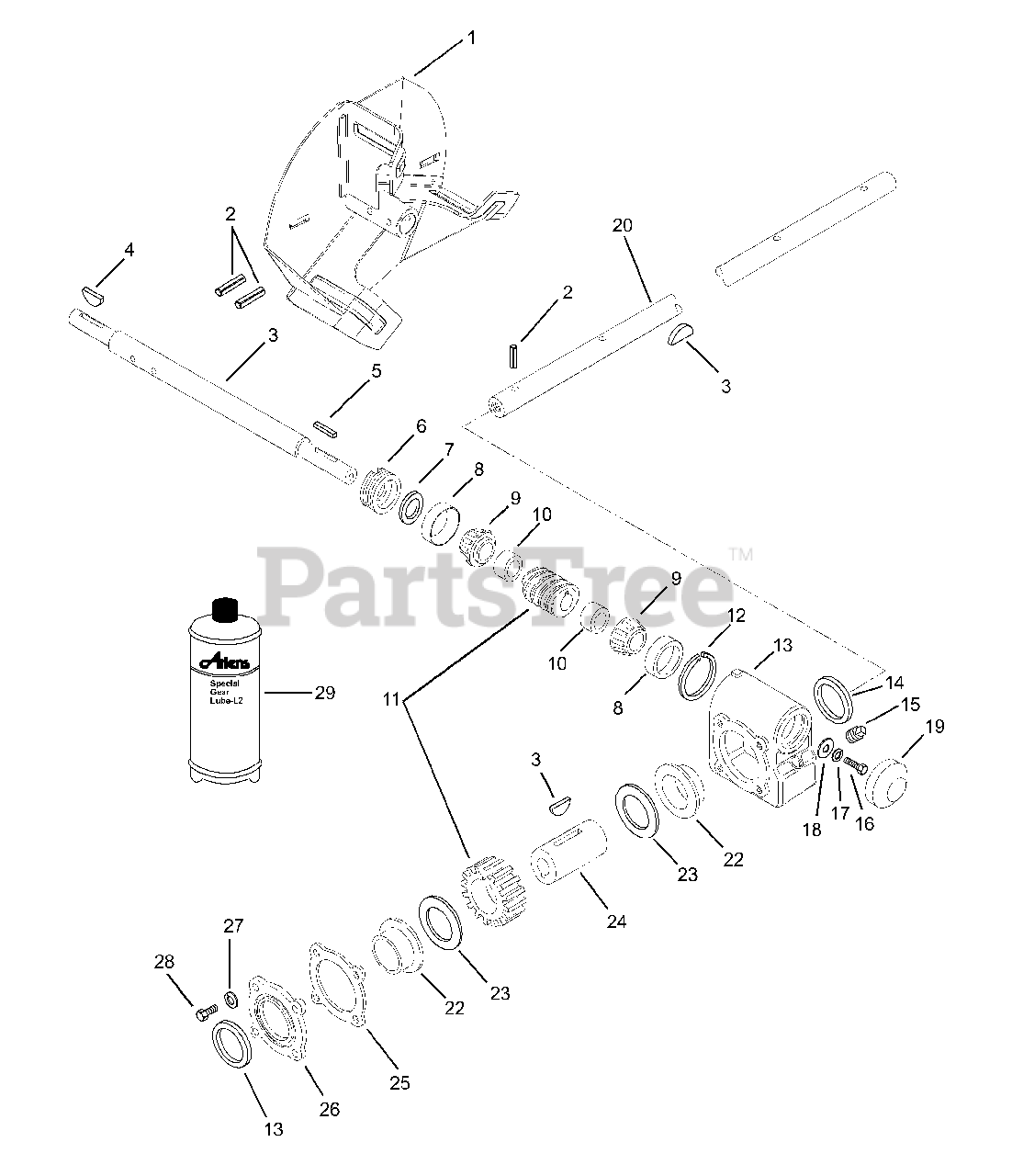

Gear Case Parts Diagram

  • Title

1

Gravely 036868

Fan
(Superseded to 02437651)

$281.99

$

Usually ships in 4-12 days

0

2

Gravely 036869

Pin-Roll .313 x 1.75
(Superseded to 05801500)

$2.49

$

In Stock, Qty 6

0

3

Gravely 036851

Worm Shaft
(Superseded to 03519400)

$218.99

$

In Stock, only 1 left!

0

4

Gravely 06600800

Key-Woodruff .25 x .875 x .375

$3.99

$

In Stock, only 2 left!

0

5

Gravely 036230

Key-Square .188 x 1.0 x .188
(Superseded to 06601300)

$1.49

$

In Stock, Qty 5

0

6

Gravely 036855

Adjustment Plug
(Superseded to 02401500)

$92.99

$

Usually ships in 4-12 days

0

7

Gravely 036854

Seal 1.000 x 1.312 x .150
(Superseded to 05606100)

$11.99

$

In Stock, Qty 20+

0

8

Gravely 018445

Bearing-Cup 1.781 x .475
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 018446

Bearing-Cone .750 x .61
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

10

Gravely 036852

Bearing Spacer 1.12 x 1.52 x .5
(Superseded to 00200500)

$7.49

$

In Stock, only 2 left!

0

11

Gravely 036858

Worm & Gear Service Assembly
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

12

Gravely 036921

Ring-Retaining-Internal 1.781 x .062
(Superseded to 05707500)

$9.49

$

In Stock, Qty 11

0

13

Gravely 036920

Gear Case
(Superseded to 02400200)

$

$

Not available

14

Gravely 036863

Seal 1.625 x 2.125 x .250
(Superseded to 05607000)

$9.99

$

In Stock, Qty 20+

0

15

Gravely 035945

Pipe Plug
(Superseded to 00113800)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06308600

Washer-Lock .312 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06437500

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

19

Gravely 036856

Dust Cap
(Superseded to 00403700)

$18.99

$

In Stock, only 1 left!

0

20

Gravely 03340300

Rake Shaft

Note: (Model 834033)

$56.99

$

Usually ships in 4-12 days

0

20

Gravely 036864

Rake Shaft
(Superseded to 03519500)

Note: (Model 836010)

$

$

Not available

21

Gravely 05803000

Pin-Roll .188 x 1.50

$0.99

$

In Stock, Qty 20+

0

22

Gravely 036860

Bushing-Flange 1.625 x 1.87 x 1.68 x 2.25
(Superseded to 05505900)

$14.99

$

In Stock, only 2 left!

0

23

Gravely 036859

Washer-Flat-Steel 1.625 x 2.500 x .012
(Superseded to 06408700)

$11.99

$

In Stock, only 4 left!

0

24

Gravely 036857

Gear Case Shaft
(Superseded to 02406400)

$180.99

$

Usually ships in 4-12 days

0

25

Gravely 036862

Gasket
(Superseded to 00200800)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 036861

Gear Case Cover
(Superseded to 02401300)

$136.99

$

Usually ships in 4-12 days

0

27

Gravely 06306800

Washer-Lock External .262 x .502 x .026
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 00008000

Ariens 16 Oz. Bottles of L2 Lube
(Superseded to 00068800)

$18.99

$

In Stock, Qty 20+

0
