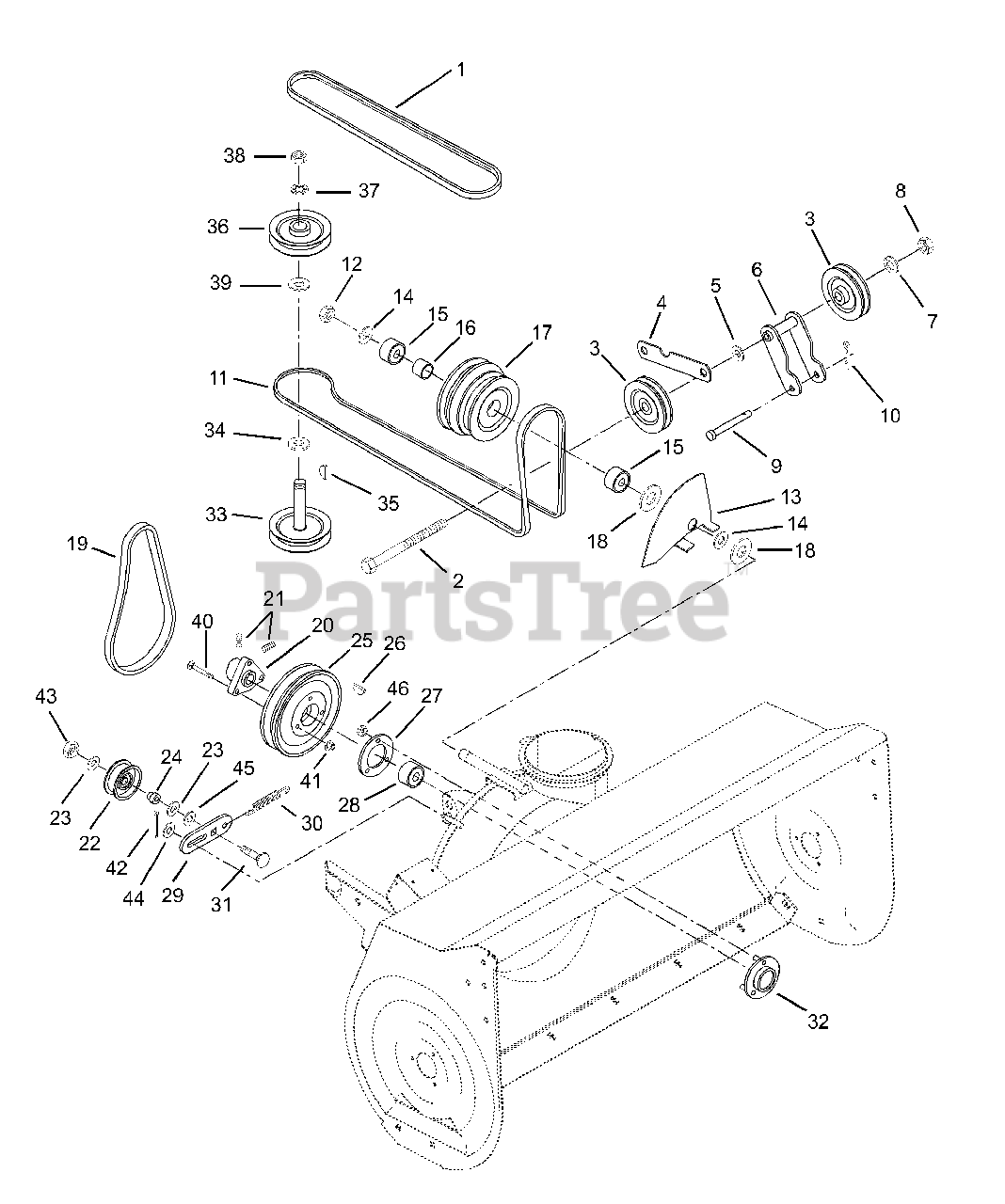

834035 - Gravely 40" Sno-Thro for GEM Tractor (SN: 000101 & Above) Belt Drive Parts Diagram

40" Sno-Thro for GEM Tractor

Belt Drive Parts Diagram

  • Title

1

Gravely 07231700

V-Belt (Main Drive)

Note: (Main Drive)

$

$

Not available

2

Gravely 05957700

Bolt-Hex .38-16 x 5.00 Grade 2
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 07311400

Idler-V 3.00 x .38
(Superseded to 07300528)

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 03339551

Strap
(Superseded to 03339543)

$

$

Not available

5

Gravely 06444100

Washer-Flat-Steel .754 x 1.000 x .032

$2.99

$

In Stock, Qty 17

0

6

Gravely 03632251

Idler Bracket
(Superseded to 03632243)

$102.99

$

Usually ships in 4-12 days

0

7

Gravely 06308800

Washer-Lock .375 x .115
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06529400

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 036845

Clevis Pin 3/8 x 3
(Superseded to 03518600)

$

$

Not available

10

Gravely 036075

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07233300

V-Belt 120.25 x .53 - Mule Drive

$71.99

$

Usually ships in 4-12 days

0

12

Gravely 06505300

Nut-Locking-Center .75-10

$

$

Not available

13

Gravely 051662

Shield
(Superseded to 03592543)

$

$

Not available

14

Gravely 06416700

Washer-Flat-Steel .781 x 1.250 x .059

$

$

Not available

15

Gravely 035925

Bearing-Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

16

Gravely 050831

Spacer 1.00 x .770/.760 x .813
(Superseded to 03519000)

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 03634500

Sheave

$62.99

$

Usually ships in 4-12 days

0

18

Gravely 06439000

Washer-Flat-Steel .781 x 1.500 x .188
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07210800

V-Belt 36-13/16 x 17/32

$46.99

$

In Stock, Qty 20+

0

20

Gravely 50202100

Hub

$85.99

$

In Stock, only 1 left!

0

21

Gravely 06005500

Screw-Set .31-18 x .38

$2.99

$

In Stock, Qty 13

0

22

Gravely 01213200

Idler
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

23

Gravely 06436800

Washer-Flat-Steel .390 x .88 x .18

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 036849

Spacer, Flanged .390 x .500 x .781
(Superseded to 03114500)

$9.99

$

In Stock, only 1 left!

0

25

Gravely 07307000

Pulley-V 9.0 x 1.25

$51.99

$

In Stock, only 4 left!

0

26

Gravely 103907

Key-Woodruff .188 x .875 x .38
(Superseded to 06600100)

$2.99

$

In Stock, Qty 7

0

27

Gravely 051655

Flange-Spherical
(Superseded to 03086100)

$17.99

$

In Stock, only 1 left!

0

28

Gravely 051656

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05418200)

$30.99

$

In Stock, Qty 11

0

29

Gravely 03589151

Idler Arm
(Superseded to 03589143)

$

$

Not available

30

Gravely 036850

Spring-Tension .090 x .75 x 3.50
(Superseded to 08312200)

$34.99

$

In Stock, only 1 left!

0

31

Gravely 06223800

Bolt-Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

32

Gravely 051657

Bearing Flange
(Superseded to 03086200)

$22.99

$

Usually ships in 4-12 days

0

33

Gravely 03635000

Spindle Shaft

$95.99

$

Usually ships in 4-12 days

0

34

Gravely 03634600

Spacer .755 x 1.250 x .370

$7.99

$

Usually ships in 4-12 days

0

35

Gravely 106751

Key-Woodruff .188 x .75
(Superseded to 06600300)

$1.49

$

In Stock, Qty 11

0

36

Gravely 07306000

Pulley-V 4.50 x .75

$68.99

$

Usually ships in 4-12 days

0

37

Gravely 06310800

Washer-Lock Internal .750 x .050

$1.49

$

Usually ships in 4-12 days

0

38

Gravely 06537700

Nut-Jam .75-10

$2.49

$

In Stock, only 2 left!

0

39

Gravely 06310300

Washer-Locking .75 x .188

$1.49

$

In Stock, Qty 20+

0

40

Gravely 07028700

Bolt-Serrated Round Head Slotted .31-18 x .87

$5.99

$

In Stock, Qty 13

0

41

Gravely 06530400

Nut-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

43

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 06436500

Washer-Flat-Steel .382 x .812 x .023

$2.49

$

In Stock, only 2 left!

0

45

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
