834034 - Gravely 42" Front Blade SierraTractor (SN: 000101 & Above) 42" BLADE Parts Diagram

42" Front Blade SierraTractor

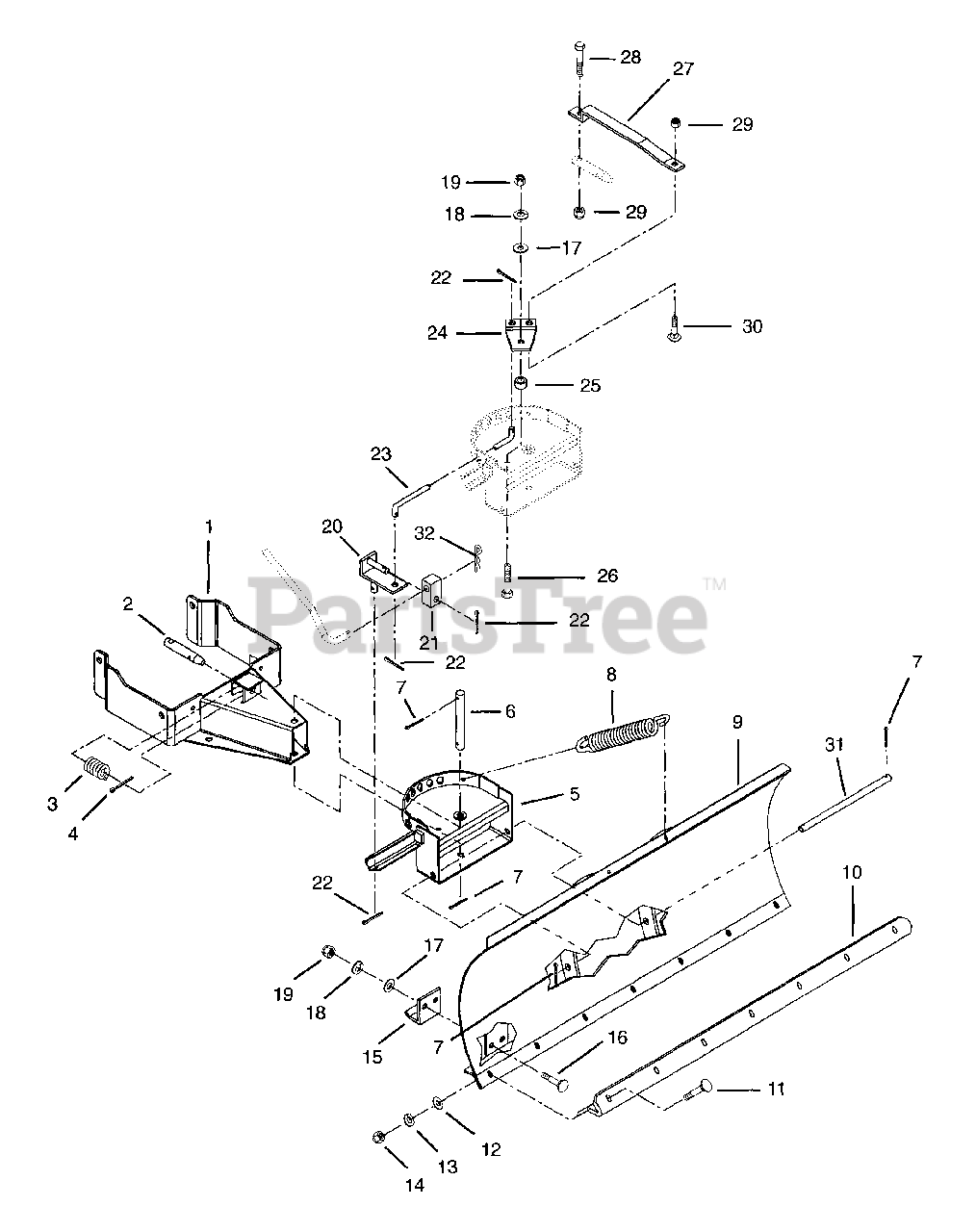

42" BLADE Parts Diagram

  • Title
1

Gravely 03360100

Frame-Push

$

$

Not available

2

Gravely 03125400

Latch Pin

$

$

Not available

3

Gravely 08313200

Spring-Compression .080 x .85 x 1.44

$38.99

$

Usually ships in 4-12 days

0

4

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 10

0

5

$

$

Not available

$

$

Not available

7

Gravely 06712000

Pin-Cotter .18 x 1.0

$1.99

$

In Stock, only 2 left!

0

8

Gravely 08313300

Spring-Tension .187 x .50 x 9.94

$45.99

$

In Stock, only 2 left!

0

$279.99

$

Usually ships in 4-12 days

0

10

Gravely 02918600

Wear Plate

$

$

Not available

11

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03127100

Skid Shoe

$

$

Not available

16

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.0
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

17

Gravely 06435900

Washer-Flat-Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06308800

Washer-Locking .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

20

$

$

Not available

21

Gravely 03126800

Universal Block Joint

$

$

Not available

22

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

$

$

Not available

24

Gravely 03125200

Pivot Plate

$

$

Not available

25

Gravely 02914000

Spacer .406 x .749 x .162

$

$

Not available

26

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

27

$

$

Not available

28

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

29

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

$

$

Not available

32

Gravely 06702000

Pin-Hair-Internal .08 x .18 x 1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0
