834034 - Ariens 42" Front Blade (SN: 000101 & Above) Linkage Parts Diagram

42" Front Blade

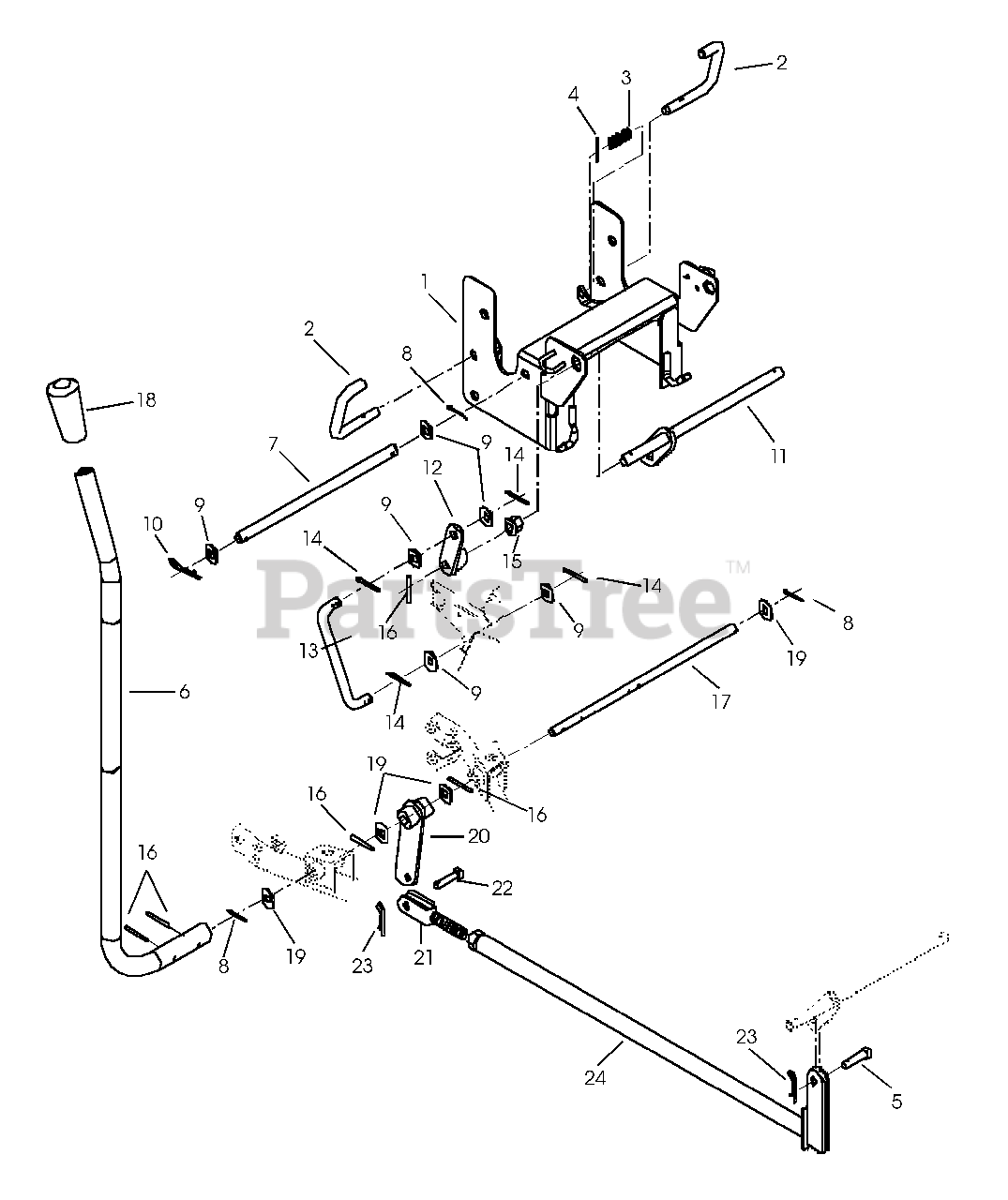

Linkage Parts Diagram

  • Title

1

Ariens 03360000

FRAME, PIVOT
(Superseded to 03360043)

$323.99

$

Usually ships in 4-12 days

0

2

Ariens 03359900

PIN, LATCH

$13.99

$

Usually ships in 4-12 days

0

3

Ariens 08326000

SG-COMP .072X.77X1.75

$

$

Not available

4

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

5

Ariens 04136800

CLEVIS PIN - .500 DIA. X 1.000
(Superseded to 06821500)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 03339200

LEVER
(Superseded to 03339243)

$284.99

$

Usually ships in 4-12 days

0

7

Ariens 03632300

ROD, PIVOT

$11.99

$

Usually ships in 4-12 days

0

8

Ariens 06712600

@PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

10

Ariens 06713300

PIN-HAIR-INT .17X.68X3.50 YWZC
(Superseded to 06700228)

$2.99

$

In Stock, only 1 left!

0

11

Ariens 03630800

PIVOT ROD

$

$

Not available

12

Ariens 03629800

ARM, LIFT
(Superseded to 03629843)

$11.99

$

Usually ships in 4-12 days

0

13

Ariens 03630600

LINK, LIFT

Note: (Sierra Only)

$8.99

$

Usually ships in 4-12 days

0

14

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

15

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$10.99

$

In Stock, Qty 20+

0

16

Ariens 05807100

PIN-GRV .250X1.50 TP A

$

$

Not available

17

Ariens 03630100

PIVOT ROD

$

$

Not available

18

Ariens 07526200

GRIP,HANDLE BAR

$9.99

$

Usually ships in 4-12 days

0

19

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03629700

LEVER, ACTUATOR

$

$

Not available

21

Ariens 03339300

CLEVIS R.H.

$39.99

$

Usually ships in 4-12 days

0

22

Ariens 03138100

PIN-CLEV .494X1.25 YWZC
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

23

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

24

Ariens 03630700

TUBE, LIFT
(Superseded to 03630743)

$205.99

$

Usually ships in 4-12 days

0
