834034 - Ariens 42" Front Blade (SN: 000101 & Above) 42" Blade Parts Diagram

42" Front Blade

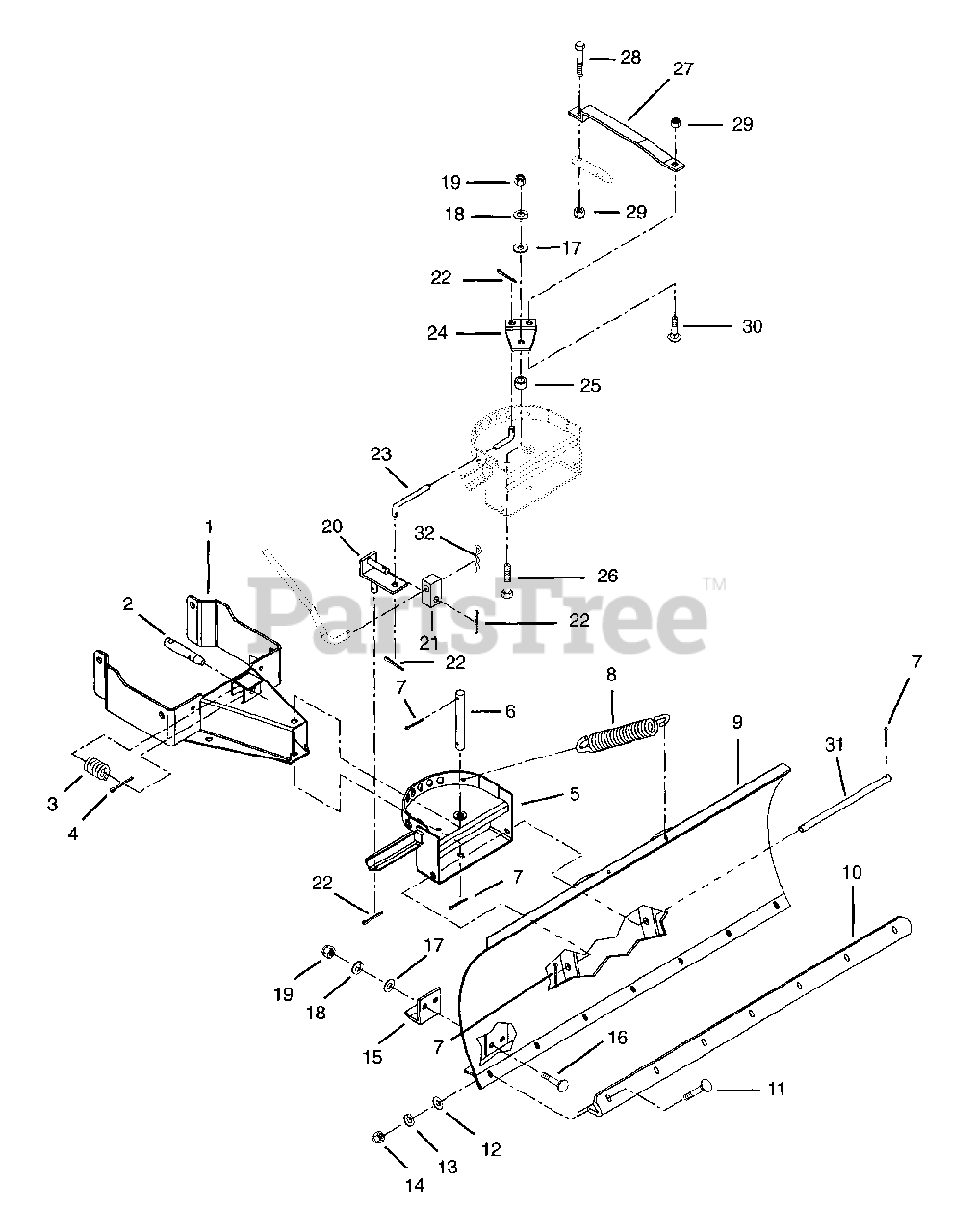

42" Blade Parts Diagram

  • Title
1

Ariens 03360100

FRAME - PUSH

$

$

Not available

2

Ariens 03125400

LATCH PIN

$

$

Not available

3

Ariens 08313200

SG-COMP .080X.85X1.44

$38.99

$

Usually ships in 4-12 days

0

4

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

5

Ariens 02918100

SUPPORT

$

$

Not available

$

$

Not available

7

Ariens 06712000

@PIN-CTR .18X1.00 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$45.99

$

In Stock, only 2 left!

0

9

Ariens 02918500

WELDMENT, SNOW BLADE

$279.99

$

Usually ships in 4-12 days

0

10

Ariens 02918600

WEAR PLATE

$

$

Not available

11

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 03127100

SKID SHOE

$

$

Not available

16

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 12

0

17

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

20

$

$

Not available

21

Ariens 03126800

UNIVERSAL BLOCK JOINT

$

$

Not available

22

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

$

$

Not available

24

Ariens 03125200

PIVOT PLATE

$

$

Not available

25

Ariens 02914000

SPACER .406X.749X.162

$

$

Not available

26

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

27

$

$

Not available

28

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

29

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

$

$

Not available

32

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0
