834033 - Ariens 40" Sno-Thro Attachment (SN: 000101 & Above) Carriage & Frame Parts Diagram

40" Sno-Thro Attachment

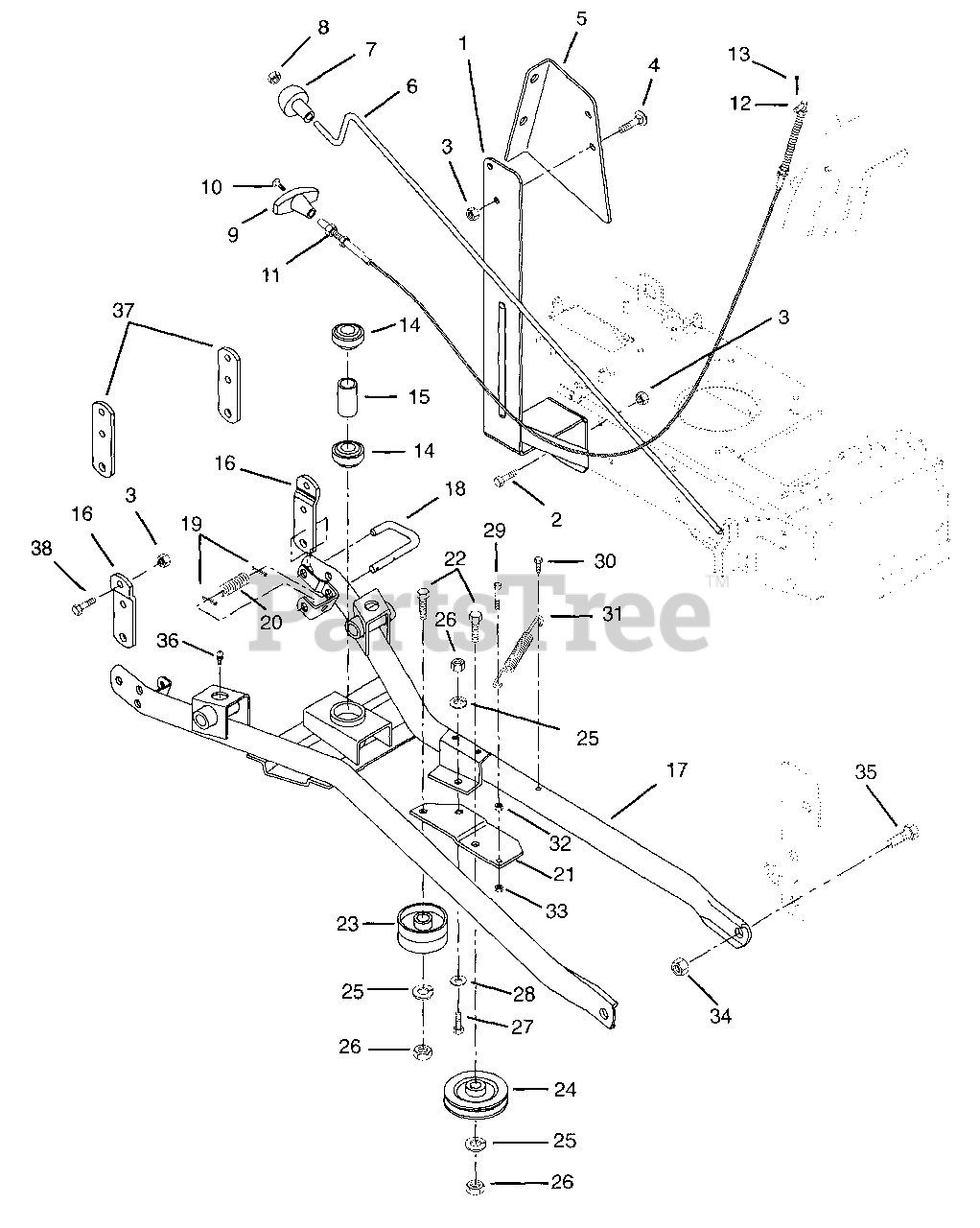

Carriage & Frame Parts Diagram

  • Title

1

Ariens 03339600

SUPPORT - CONTROL BRACKET
(Superseded to 03339643)

$

$

Not available

2

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (834033)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (836010)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (834033)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (836010)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

5

Ariens 03630400

CONTROL BRACKET
(Superseded to 03630443)

$6.99

$

Usually ships in 4-12 days

0

6

Ariens 03081900

CHUTE CONTROL CRANK

$154.99

$

Usually ships in 4-12 days

0

7

Ariens 07509600

KNOB

$

$

Not available

8

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07517100

KNOB-BLACK
(Superseded to 07530800)

$9.49

$

In Stock, only 1 left!

0

10

Ariens 07029300

SCR-MCH 8-32X.75 PN HD YWZC

$1.99

$

Usually ships in 4-12 days

0

11

Ariens 06917800

CONTROL CABLE
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

12

Ariens 06917500

PIVOT

$37.99

$

Usually ships in 4-12 days

0

13

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

14

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

15

Ariens 03517300

SPACER .765X1.000X1.252

$

$

Not available

16

Ariens 03343800

HANGER BRACKET- OFFSET
(Superseded to 03689151)

Note: (834033)

$

$

Not available

17

Ariens 03339100

CARRIAGE FRAME W/ SPINDLE&BRGS
(Superseded to 03339143)

$775.99

$

Usually ships in 4-12 days

0

18

Ariens 03584700

LATCH PIN

$

$

Not available

19

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

20

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

21

Ariens 03589400

IDLER ARM
(Superseded to 03589443)

$

$

Not available

22

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07310800

IDLER-FLAT 2.25 X .38

$34.99

$

In Stock, only 1 left!

0

24

Ariens 07310900

IDLER-V 3.06 X .38

$23.99

$

Usually ships in 4-12 days

0

25

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 00411500

SHOULDER BOLT .50 X .281
(Superseded to 07000034)

$3.99

$

In Stock, only 1 left!

0

28

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

29

Ariens 07406600

SCR-TAP 10-24X1.0 HWH PL TR
(Superseded to 07415200)

$3.49

$

Usually ships in 4-12 days

0

30

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

31

Ariens 08312200

SG-TENS .090X.75X3.50 WLD 34

$34.99

$

In Stock, only 1 left!

0

32

Ariens 06536600

@NUT-HEX 10-24 YWZC

$0.99

$

In Stock, Qty 5

0

33

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

Usually ships in 4-12 days

0

35

Ariens 05968700

@BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, only 3 left!

0

36

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

37

Ariens 03588700

HANGER BRACKET
(Superseded to 03588751)

Note: (836010)

$30.99

$

Usually ships in 4-12 days

0

38

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (834033)

$1.49

$

In Stock, Qty 20+

0
