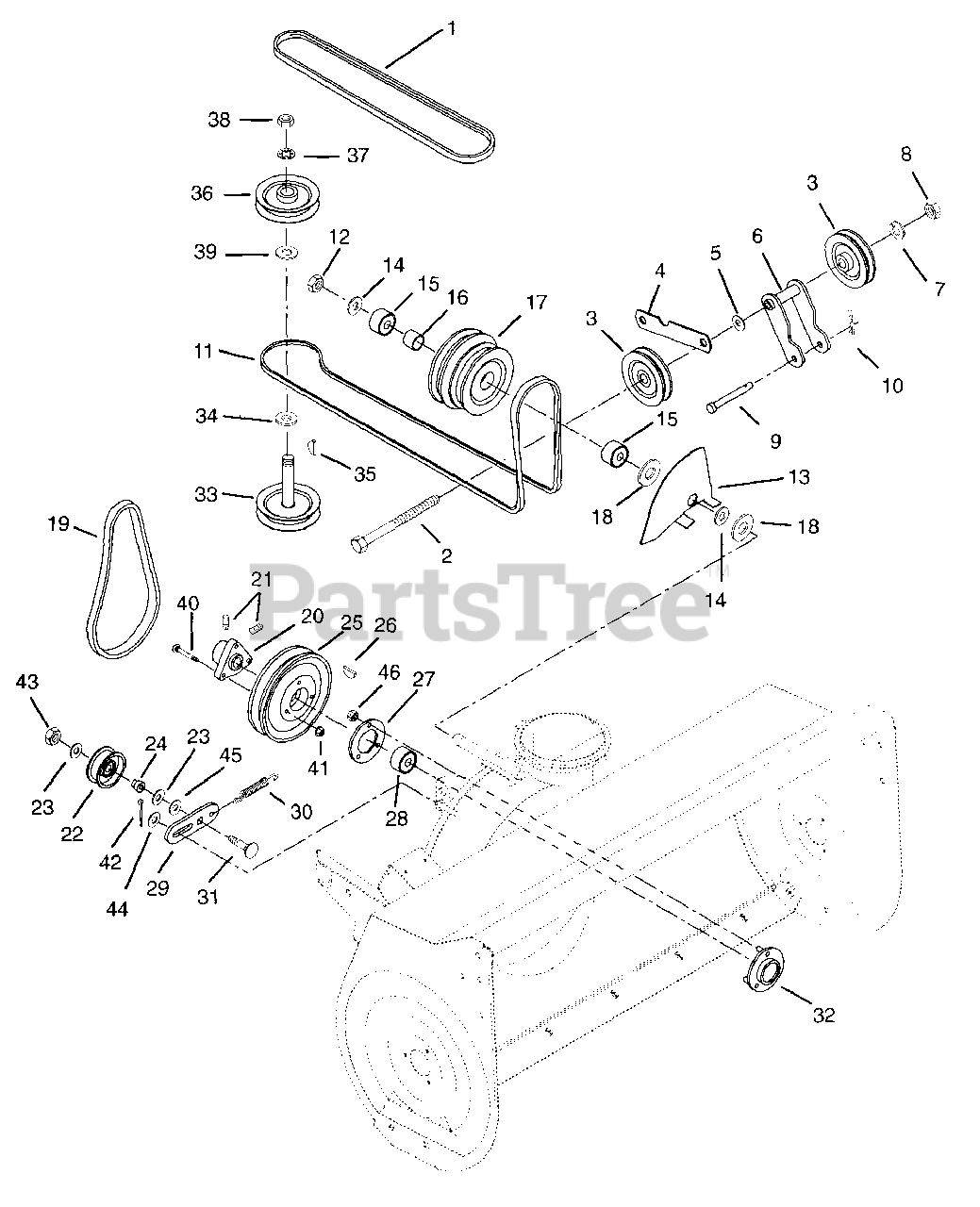

834033 - Ariens 40" Sno-Thro Attachment (SN: 000101 & Above) Belt Drive Parts Diagram

40" Sno-Thro Attachment

Belt Drive Parts Diagram

  • Title

1

Ariens 07231700

V-BELT, HA-RAW EDGE

Note: (Main Drive)

$

$

Not available

2

Ariens 05957700

@BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.99

$

Usually ships in 4-12 days

0

4

Ariens 03339500

STRAP
(Superseded to 03339543)

$

$

Not available

5

Ariens 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 17

0

6

Ariens 03632200

IDLER BRACKET

$

$

Not available

7

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03518600

CLEVIS PIN 3/8X3.0 YWZC

$

$

Not available

10

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 07233300

V-BELT, HA-WRAPPED

$71.99

$

Usually ships in 4-12 days

0

12

Ariens 06505300

NUT-LK-CTR .75-10 PL

$

$

Not available

13

Ariens 03592500

SHIELD
(Superseded to 03592543)

$

$

Not available

14

Ariens 06410800

WSHR-FL-STL .781X1.250X.059 PL
(Superseded to 06416700)

$

$

Not available

15

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

16

Ariens 03519000

SPACER 1.00 X .770/.760 X .813

$5.99

$

Usually ships in 4-12 days

0

17

Ariens 03634500

SHEAVE, DOUBLE

$62.99

$

Usually ships in 4-12 days

0

18

Ariens 06410900

WSHR-FL-STL .781X1.500X.188
(Superseded to 06439000)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07210800

V-BELT, 4L-RAW EDGE

$46.99

$

In Stock, Qty 20+

0

20

Ariens 00286200

HUB
(Superseded to 50202100)

$85.99

$

In Stock, only 1 left!

0

21

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0

22

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

23

Ariens 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 1 left!

0

25

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$51.99

$

In Stock, only 4 left!

0

26

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 7

0

27

Ariens 03086100

BEARING FLANGE

$17.99

$

In Stock, only 1 left!

0

28

Ariens 05418200

BRG-BALL1.0X2.0X.56

$30.99

$

In Stock, Qty 11

0

29

Ariens 03589100

IDLER ARM
(Superseded to 03589143)

$

$

Not available

30

Ariens 08312200

SG-TENS .090X.75X3.50 WLD 34

$34.99

$

In Stock, only 1 left!

0

31

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

32

Ariens 03086200

BEARING FLANGE

$22.99

$

Usually ships in 4-12 days

0

33

Ariens 03635000

SPINDLE SHAFT

$95.99

$

Usually ships in 4-12 days

0

34

Ariens 03634600

SPACER .755X1.250X.370

$7.99

$

Usually ships in 4-12 days

0

35

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

36

Ariens 07306000

PLY-V 4.50 X .75 W/KEY SALEM

$68.99

$

Usually ships in 4-12 days

0

37

Ariens 06310800

WSHR-LK-INT .750 YWZC

$1.49

$

Usually ships in 4-12 days

0

38

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.49

$

In Stock, only 2 left!

0

39

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.49

$

In Stock, Qty 20+

0

40

Ariens 07006000

BLT-SERRDHD SL .31-18X.87 PL
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

41

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

43

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 06436500

WSHR-FL-STL .382X.812X.023YWZC

$2.49

$

In Stock, only 2 left!

0

45

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
