834024 - Ariens 42"-48" Grass Pump (SN: 000101 & Above) Grass Pump Parts Diagram

42"-48" Grass Pump

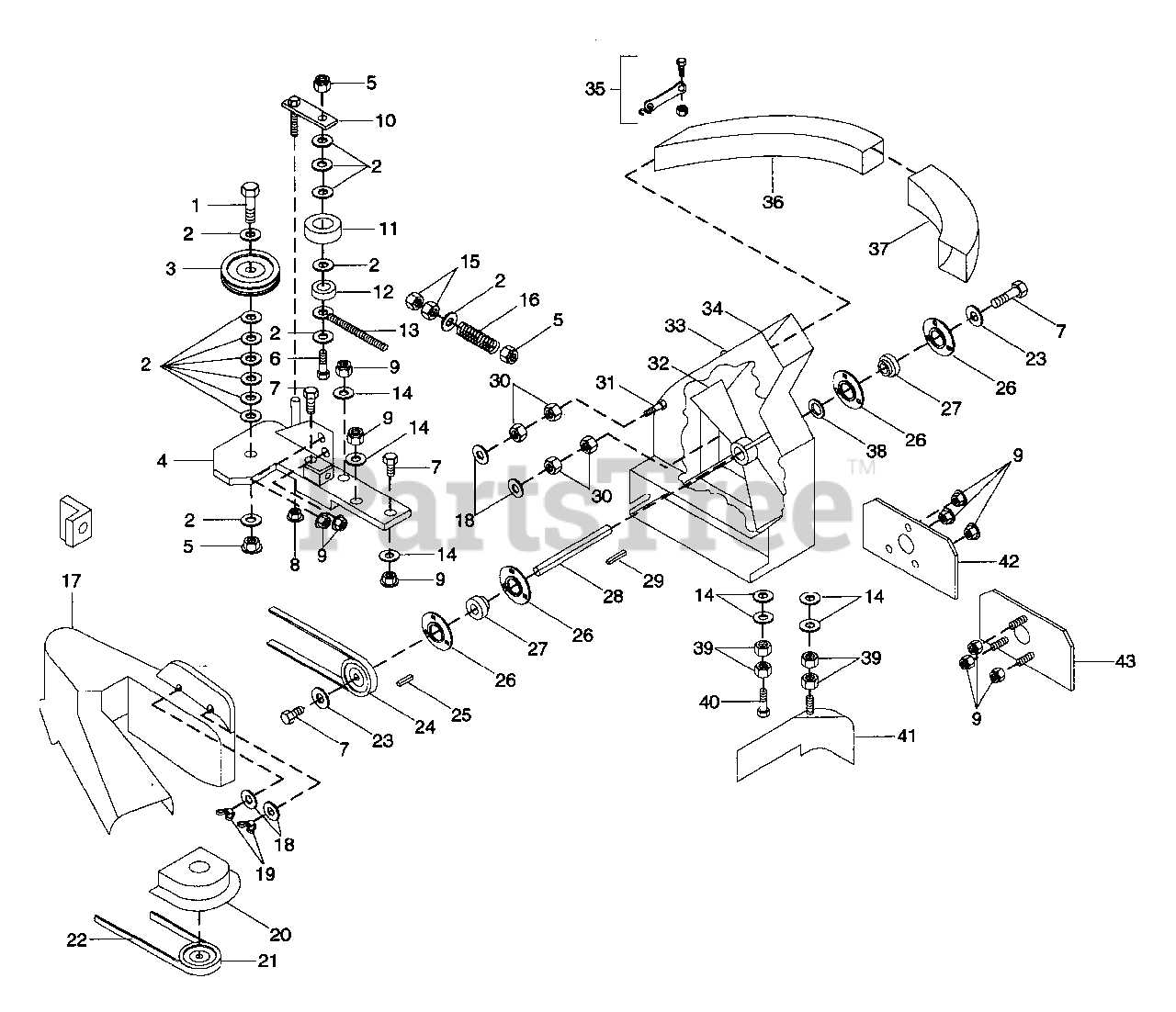

Grass Pump Parts Diagram

  • Title

1

Ariens 05916100

BLT-HEX .38-16X1.75 PL GR5
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03483400

FLAT IDLER 6 1/4

$

$

Not available

4

Ariens 03483500

BLOWER MOUNT PLATE

$

$

Not available

5

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, Qty 6

0

7

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

9

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 03484400

IDLER ARM

$

$

Not available

11

Ariens 03484300

V-IDLER 5"

$

$

Not available

12

Ariens 03484900

SPACER 3/8 ID

$

$

Not available

13

Ariens 03484800

SPRING ROD

$

$

Not available

14

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 03484700

SPRING

$

$

Not available

17

Ariens 03483700

BELT GUARD

$

$

Not available

18

Ariens 06422000

WSHR-FL-STL .260X.500X.060 PL

$

$

Not available

19

Ariens 06501200

NUT-WING .250-20 YWZC

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 03483600

BELT COVER - SMALL

$

$

Not available

21

Ariens 03482700

DRIVE PULLEY

$

$

Not available

22

Ariens 07203000

BELT,4L RAW COGGED

$

$

Not available

23

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

24

Ariens 03483200

DRIVEN PULLEY 3"

$

$

Not available

25

Ariens 03485000

KEY-SQ .188X.50X.188

$

$

Not available

26

Ariens 03482900

FLANGETTE

$

$

Not available

27

Ariens 03483100

BEARING

$

$

Not available

28

Ariens 03483000

SHAFT

$

$

Not available

29

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

30

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

31

Ariens 05908300

BLT-HEX .25-20X1.00 PL GR5
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

32

Ariens 03483300

IMPELLER

$

$

Not available

33

Ariens 03484600

ROPE TIE

$

$

Not available

34

Ariens 03482800

BLOWER HOUSING

$

$

Not available

35

Ariens 03484000

BUNGIE W/HOOK 6"

$

$

Not available

36

Ariens 03483900

LONG CHUTE

$

$

Not available

37

Ariens 03483800

SHORT CURVED CHUTE

$

$

Not available

38

Ariens 03484500

NARROW MACHINE BUSHING 10-3/4

$

$

Not available

39

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

40

Ariens 05912800

BLT-HEX .31-18X1.75 GR5
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

41

Ariens 03481900

BAFFLE WELD'T 42"

$

$

Not available

Ariens 03482000

BAFFLE WELD'T 48"

$

$

Not available

42

Ariens 03484100

WALL PLATE OUTER

$

$

Not available

43

Ariens 03484200

WALL PLATE - INNER

$

$

Not available
