834018 - Ariens 40" Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro Frame Parts Diagram

40" Sno-Thro Attachment

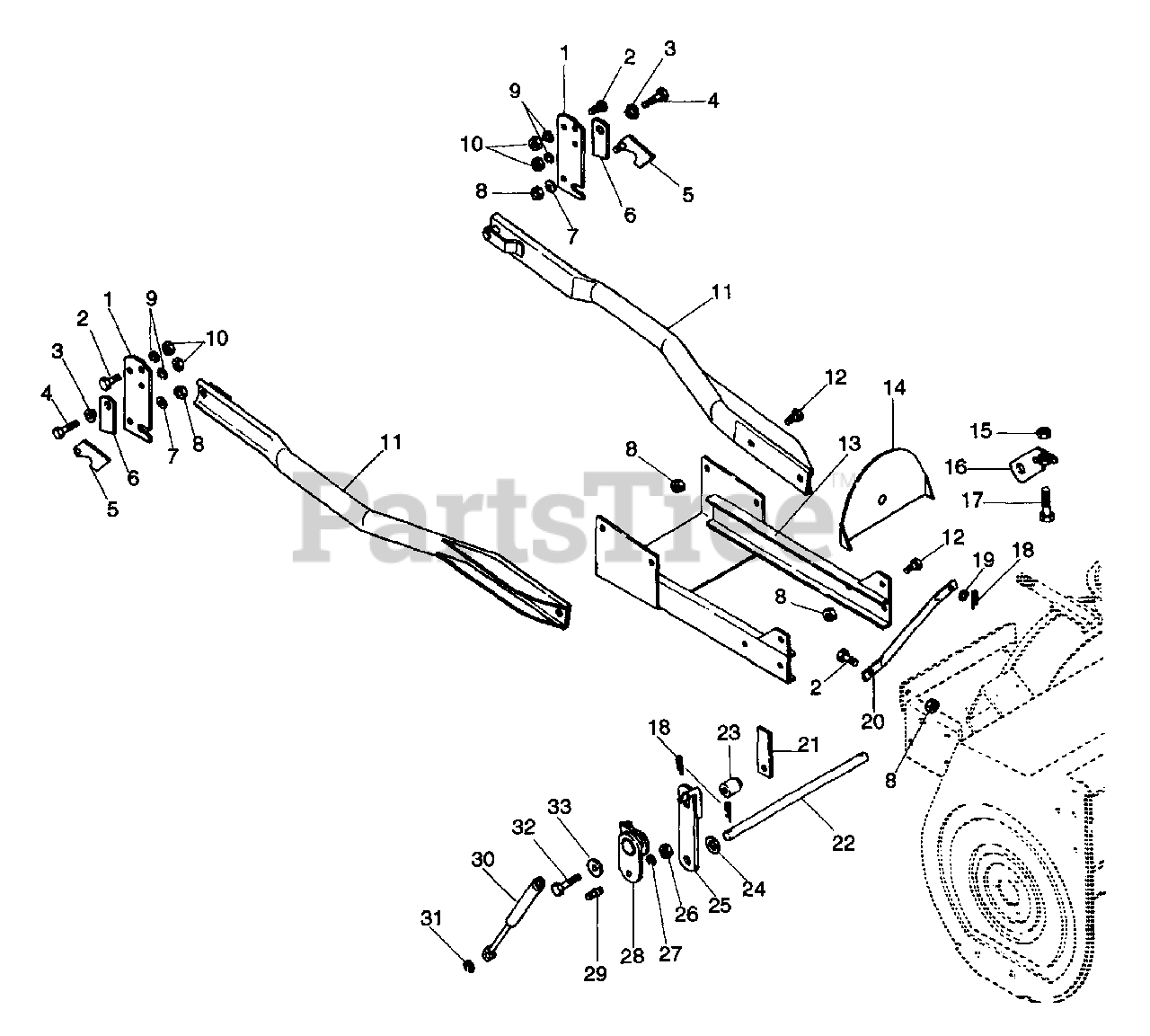

Sno-Thro Frame Parts Diagram

  • Title

IMPORTANT: Not for 934007

$

$

Not available

1

Ariens 03459500

REAR HANGER

$

$

Not available

2

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03459700

SPACER .400X.625X.400X.875

$

$

Not available

4

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

5

Ariens 03055400

LATCH RH

$

$

Not available

Ariens 03055500

LATCH LH

$62.99

$

Usually ships in 4-12 days

0

6

Ariens 03460000

LOCK STOP

$

$

Not available

7

Ariens 02902400

SPRING WASHER

$18.99

$

Usually ships in 4-12 days

0

8

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 2 left!

0

10

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03459900

REAR ATTACHMENT BRACE

$

$

Not available

12

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03460100

CHANNEL-CROSS

$

$

Not available

14

Ariens 03461900

SHIELD

$

$

Not available

15

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 03460900

ADJUST LINK

$

$

Not available

17

Ariens 05928500

BLT-HEX .50-13X2.00 PL GR2 FTH
(Superseded to 05968900)

$

$

Not available

18

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

20

Ariens 03461000

ROD

$

$

Not available

21

Ariens 03462100

BOLT PLATE

$

$

Not available

22

Ariens 03461100

PIVOT ROD

$

$

Not available

23

Ariens 03462200

PIVOT

$11.99

$

Usually ships in 4-12 days

0

24

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, only 3 left!

0

25

Ariens 03460400

RH LIFT

$

$

Not available

Ariens 03460500

LH LIFT

$25.99

$

Usually ships in 4-12 days

0

26

Ariens 06506100

NUT-JAM .312-18 PL
(Superseded to 06536100)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 03460200

SPRING BRACKET RH

$

$

Not available

Ariens 03460300

SPRING BRACKET LH

$

$

Not available

29

Ariens 03462000

PIN,THREADED

$

$

Not available

30

Ariens 03459800

SG- GAS COMP .31X.75X10.00

$

$

Not available

31

Ariens 05710700

RG-RTNG-EXT .312 X .020

$

$

Not available

32

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

33

Ariens 06410200

WSHR-FL-STL .406X1.125X.125 PL
(Superseded to 06309100)

$

$

Not available
