834018 - Ariens 40" Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro Controls Parts Diagram

40" Sno-Thro Attachment

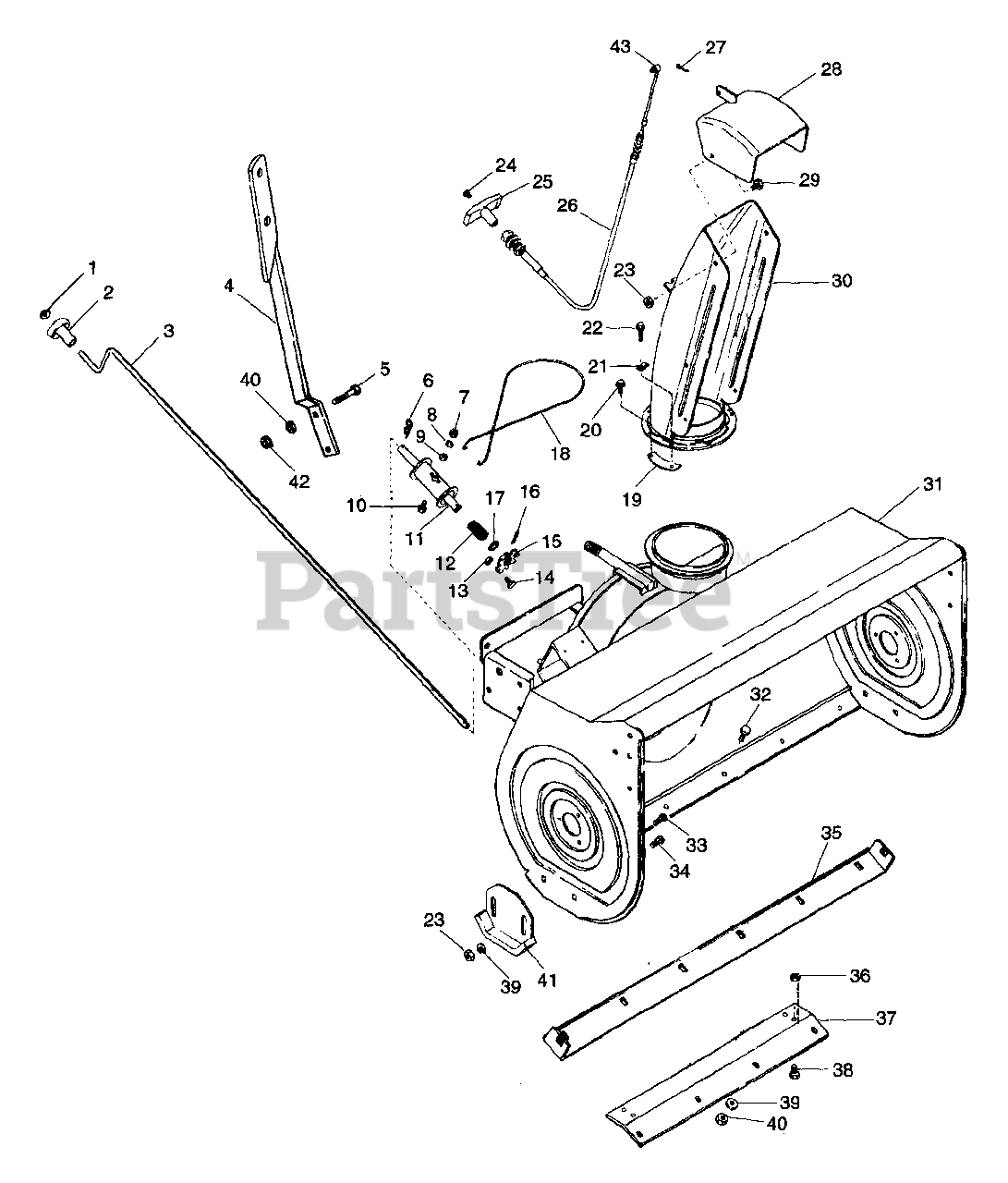

Sno-Thro Controls Parts Diagram

  • Title

IMPORTANT: Not for 934007

$

$

Not available

1

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

$

$

Not available

3

Ariens 03081900

CHUTE CONTROL CRANK

$154.99

$

Usually ships in 4-12 days

0

4

Ariens 03459300

CHUTE CRANK SUPPORT

$

$

Not available

5

Ariens 05921500

BLT-HEX .31-18X1.50 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

8

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.99

$

In Stock, only 2 left!

0

9

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

11

Ariens 03028600

SPOOL
(Superseded to 03028643)

$34.99

$

Usually ships in 4-12 days

0

12

Ariens 08316900

SG-COMP .054X.75X1.6

$

$

Not available

13

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

14

Ariens 05915600

SCR-SKH 10-24X.38

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 03028700

DISC ASSEMBLY

$54.99

$

Usually ships in 4-12 days

0

16

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

18

$11.99

$

Usually ships in 4-12 days

0

19

Ariens 02459000

CHUTE CLAMP
(Superseded to 52409200)

$29.99

$

In Stock, only 1 left!

0

20

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 06900300

CABLE CLAMP

$

$

Not available

22

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

23

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06108600

SCR-MCH 8-32X.75 SLPAN PL
(Superseded to 07029300)

$1.99

$

Usually ships in 4-12 days

0

25

Ariens 07517100

KNOB-BLACK
(Superseded to 07530800)

$9.49

$

In Stock, only 1 left!

0

26

Ariens 06917800

CONTROL CABLE
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

27

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

28

Ariens 03006000

CHUTE DEFLECTOR
(Superseded to 53114400)

$

$

Not available

29

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 03028300

DISCHARGE CHUTE
(Superseded to 03028359)

$

$

Not available

31

Ariens 53404100

40 AUGER/16 IMPELLER HOUSING

$

$

Not available

32

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

33

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

34

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 03436359

SCRAPPER BLADE

$83.99

$

Usually ships in 4-12 days

0

36

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 03438100

SCRAPER BLADE BRACE
(Superseded to 03438143)

$

$

Not available

38

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 03075500

RUNNER-SKID SHOE
(Superseded to 03075559)

$38.99

$

In Stock, only 4 left!

0

42

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

43

$37.99

$

Usually ships in 4-12 days

0
