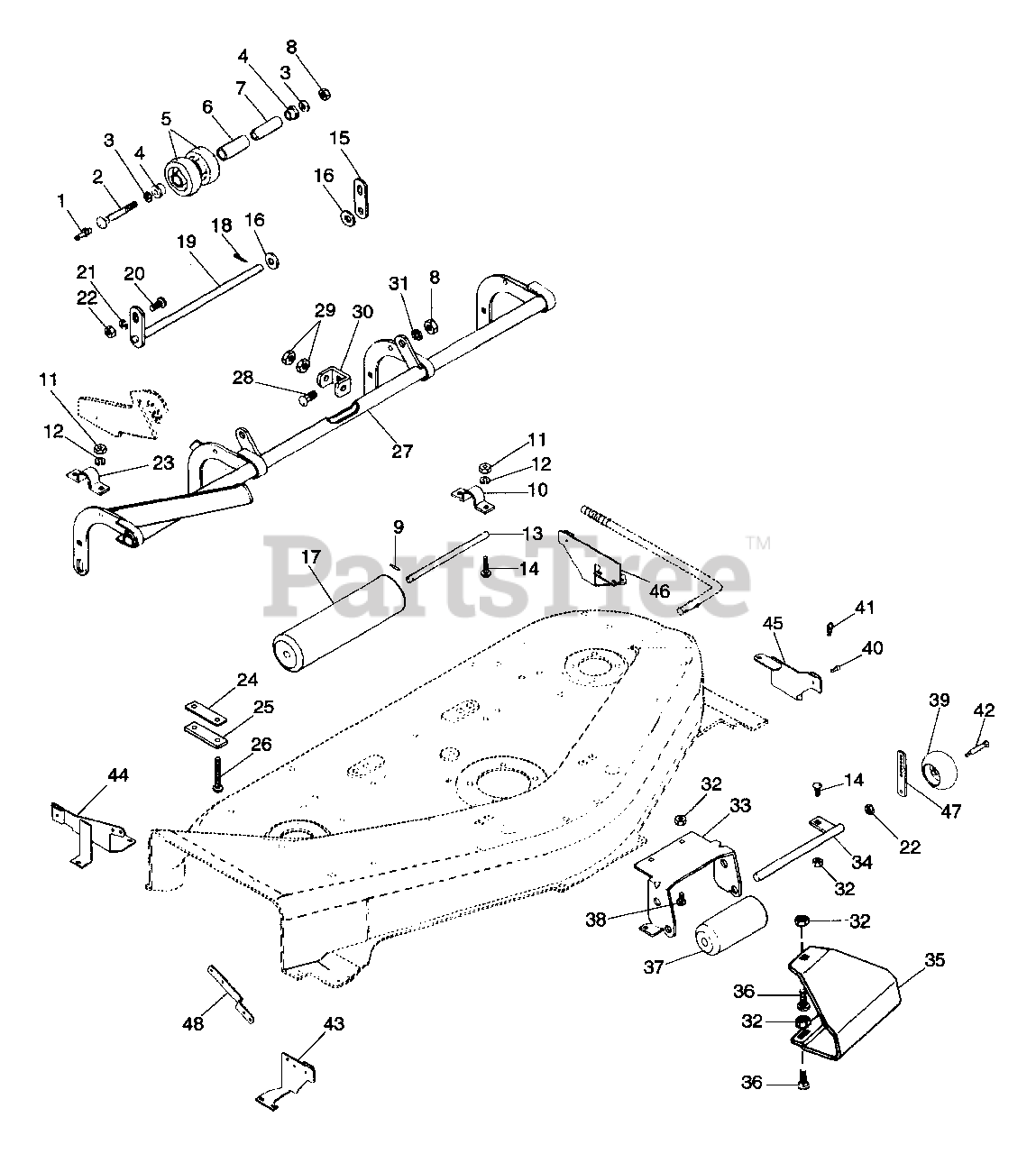

834015 - Ariens 42" Mower Deck (SN: 000101 & Above) Mower Rollers Parts Diagram

42" Mower Deck

Mower Rollers Parts Diagram

  • Title

1

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

Note: (17)

$

$

Not available

2

Ariens 53115000

WHEEL BOLT W/ZERK

Note: (17)

$

$

Not available

3

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

Note: (17)

$2.99

$

In Stock, Qty 20+

0

4

Ariens 05414300

BRG-BALL .500X1.125X.500

Note: (17)

$39.99

$

Usually ships in 4-12 days

0

5

Ariens 07113300

WHL 5 IN O.D.

Note: (17)

$

$

Not available

6

Ariens 03033900

WHEEL HUB

Note: (17)

$

$

Not available

7

Ariens 03034000

SPACER .512X.747X3.396

Note: (17)

$56.99

$

Usually ships in 4-12 days

0

8

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

Note: (17)

$3.99

$

In Stock, only 1 left!

0

9

Ariens 05800600

PIN-ROLL .250X1.00

Note: (17)

$1.99

$

Usually ships in 4-12 days

0

10

Ariens 03032700

ROLLER CLAMP

Note: (17)

$

$

Not available

11

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

Note: (15,16,17)

$0.99

$

In Stock, Qty 10

0

12

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (834015, 016, 017)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03032600

SHAFT

Note: (17)

$

$

Not available

14

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

Note: (17)

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

Note: (16)

$2.49

$

In Stock, Qty 20+

0

15

Ariens 03115600

LINK

Note: (15,16)

$

$

Not available

16

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

Note: (16)

$2.49

$

In Stock, only 3 left!

0

17

Ariens 03402200

ROLLER

Note: (15)

$

$

Not available

17

Ariens 03404200

ROLLER

Note: (16)

$55.99

$

In Stock, only 2 left!

0

18

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

Note: (15,16)

$1.99

$

Usually ships in 4-12 days

0

19

Ariens 03401400

ROLLER SHAFT

Note: (15)

$

$

Not available

19

Ariens 03435500

ROLLER SHAFT

Note: (16)

$64.99

$

Usually ships in 4-12 days

0

20

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

Note: (15,16)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

Note: (15,16)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

Note: (15,16)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03402300

CLAMP

Note: (15,16)

$25.99

$

Usually ships in 4-12 days

0

23

Ariens 03034300

CLAMP
(Superseded to 03034351)

Note: (17)

$

$

Not available

24

Ariens 03434100

ADJUSTMENT PLATE

Note: (16)

$

$

Not available

24

Ariens 03034200

PAD
(Superseded to 03034251)

Note: (17)

$

$

Not available

25

Ariens 03402400

ADJUSTMENT PLATE

Note: (15)

$

$

Not available

25

Ariens 03402400

ADJUSTMENT PLATE

Note: (16)

$

$

Not available

26

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

Note: (15)

$2.49

$

In Stock, only 3 left!

0

26

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

Note: (16)

$2.49

$

In Stock, only 3 left!

0

26

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

Note: (16)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06205100

BLT-RDHDSQNK .31-18X2.75 SHPL
(Superseded to 06212300)

Note: (16)

$2.99

$

In Stock, only 4 left!

0

27

Ariens 03456900

ROLLER FRAME

Note: (15)

$

$

Not available

27

Ariens 03468100

ROLLER FRAME

Note: (16)

$

$

Not available

27

Ariens 03458600

ROLLER FRAME 60

Note: (17)

$

$

Not available

28

Ariens 06201400

BLT-RDHDSQNK .50-13X1.25 PL
(Superseded to 06224700)

Note: (15,16,17)

$5.99

$

Usually ships in 4-12 days

0

29

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

Note: (15,16,17)

$3.99

$

In Stock, only 1 left!

0

30

Ariens 03400400

YOKE

Note: (15,16,17)

$

$

Not available

31

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

Note: (834015, 016, 017)

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (834016, 017)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (834015)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 03435100

BRACKET, ROLLER
(Superseded to 03435151)

Note: (16)

$81.99

$

Usually ships in 4-12 days

0

33

Ariens 03464300

BRACKET, ROLLER
(Superseded to 03464359)

Note: (17)

$77.99

$

Usually ships in 4-12 days

0

34

Ariens 03435200

ROLLER SHAFT

Note: (16)

$51.99

$

Usually ships in 4-12 days

0

34

Ariens 03426200

ROLLER SHAFT

Note: (17)

$49.99

$

Usually ships in 4-12 days

0

35

Ariens 03405100

SKID 42 INCH MOWER

Note: (15,22)

$

$

Not available

36

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

Note: (15,22)

$2.99

$

In Stock, Qty 20+

0

37

Ariens 03114100

ROLLER

Note: (16)

$22.99

$

In Stock, Qty 20+

0

38

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

Note: (17)

$2.49

$

In Stock, Qty 20+

0

39

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

Note: (22)

$15.99

$

In Stock, Qty 20+

0

40

Ariens 03130200

CLEVIS PIN
(Superseded to 06814000)

Note: (22)

$3.99

$

In Stock, only 1 left!

0

41

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

Note: (834022)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 07011700

BLT-SHLDR .38-16X2.50 GR5 PL

Note: (22)

$

$

Not available

43

Ariens 03472200

BRACKET,RIGHT FRONT

Note: (22)

$

$

Not available

44

Ariens 03471900

BRACKET,RIGHT REAR

Note: (22)

$

$

Not available

45

Ariens 03472600

BRACKET,LEFT FRONT

Note: (22)

$

$

Not available

46

Ariens 03472700

BRACKET, LEFT REAR - 1 PIECE

Note: (22)

$

$

Not available

47

Ariens 03471800

SLIDING BAR

Note: (22)

$5.53

$

Usually ships in 4-12 days

0

48

Ariens 03472400

BRACE

Note: (22)

$

$

Not available
