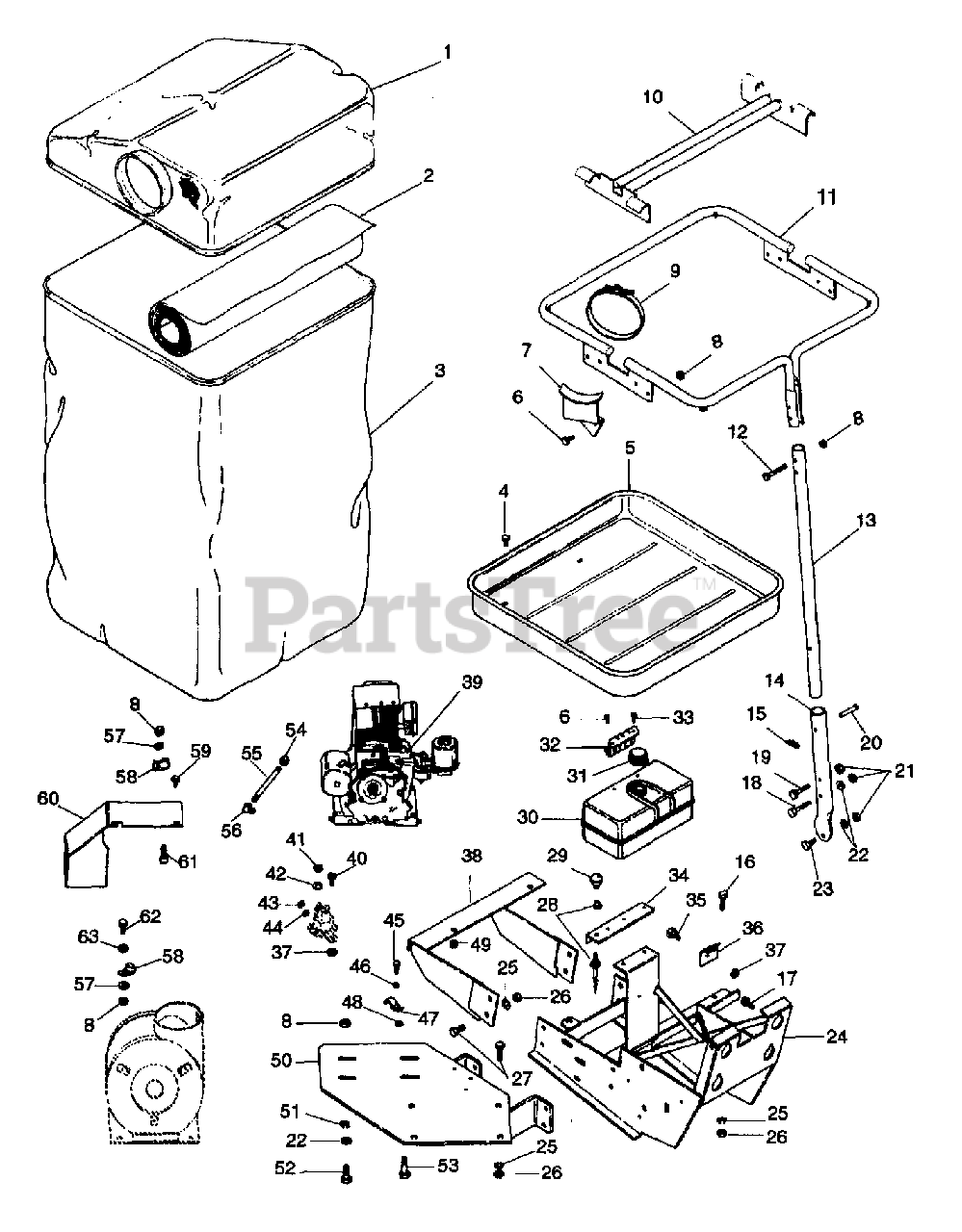

834014 - Ariens Vac Bagger (SN: 000101 & Above) Bagger Vac Collector Parts Diagram

Vac Bagger

Bagger Vac Collector Parts Diagram

  • Title

1

Ariens 03023500

COVER

$

$

Not available

2

Ariens 03023300

BAGS PLASTIC

$

$

Not available

3

Ariens 03087700

BAG

$265.99

$

Usually ships in 4-12 days

0

4

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03026100

BAG TRAY

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03053500

BRACKET-ELBOW SUPPORT

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$17.99

$

Usually ships in 4-12 days

0

10

Ariens 03023600

CENTER BAG SUPPORT

$

$

Not available

11

Ariens 03023200

SUPPORT, BAG

$216.99

$

Usually ships in 4-12 days

0

12

Ariens 05913700

BLT-HEX .31-18X2.25 PL GR2
(Superseded to 05963700)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03441700

TUBE SUPPORT

$

$

Not available

14

Ariens 03427400

TUBE MOUNTING

$

$

Not available

15

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05920000

BLT-HEX .50-13X1.50 PL GR5
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

17

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

$

$

Not available

18

Ariens 05914900

BLT-HEX .38-16X2.25 PL GR2
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

20

Ariens 00212300

CLEVIS PIN

$3.49

$

In Stock, only 3 left!

0

21

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03464400

FRAME

$

$

Not available

25

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

26

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

27

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

28

Ariens 06913400

CHOKE CONTROL
(Superseded to 06919100)

$

$

Not available

29

Ariens 07512400

PUSH/PULL CONTROL KNOB

$9.99

$

Usually ships in 4-12 days

0

30

Ariens 03464800

FUEL TANK

$

$

Not available

31

Ariens 07517600

FUEL CAP

$

$

Not available

32

Ariens 03464900

TANK BRACKET

$

$

Not available

33

Ariens 07409200

SCREW TECUMSEH 42584-60

$

$

Not available

34

Ariens 03464500

CABLE PLATE

$

$

Not available

35

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 03465000

PLATE

$

$

Not available

37

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 03421100

BAG SUPPORT WELDMENT

$

$

Not available

39

Ariens 08230100

TEC HS40 W/ES

$

$

Not available

40

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

$0.99

$

In Stock, Qty 13

0

42

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

43

Ariens 06502600

NUT 10-32 PL

$

$

Not available

44

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

45

Ariens 05920700

BLT-HEX 10-24X.75 PL GR2

$

$

Not available

46

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

48

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

49

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 03462700

ENGINE PLATE

$

$

Not available

51

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

52

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

53

Ariens 05912800

BLT-HEX .31-18X1.75 GR5
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

54

Ariens 02520800

HEX CAP

$

$

Not available

55

Ariens 03576700

OIL DRAIN PIPE

$

$

Not available

56

Ariens 01048500

STREET ELBOW

$

$

Not available

57

Ariens 06421300

WSHR-FL-STL .250X.500X.049

$

$

Not available

58

Ariens 06905700

CLIP

$

$

Not available

59

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

60

Ariens 03464200

BELT COVER

$

$

Not available

61

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

62

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

63

Ariens 06513800

NUT-HEAVY .312-18 PL

$

$

Not available
