834012 - Ariens Vac Bagger (SN: 000101 & Above) Bagger Vac Bag And Frame Parts Diagram

Vac Bagger

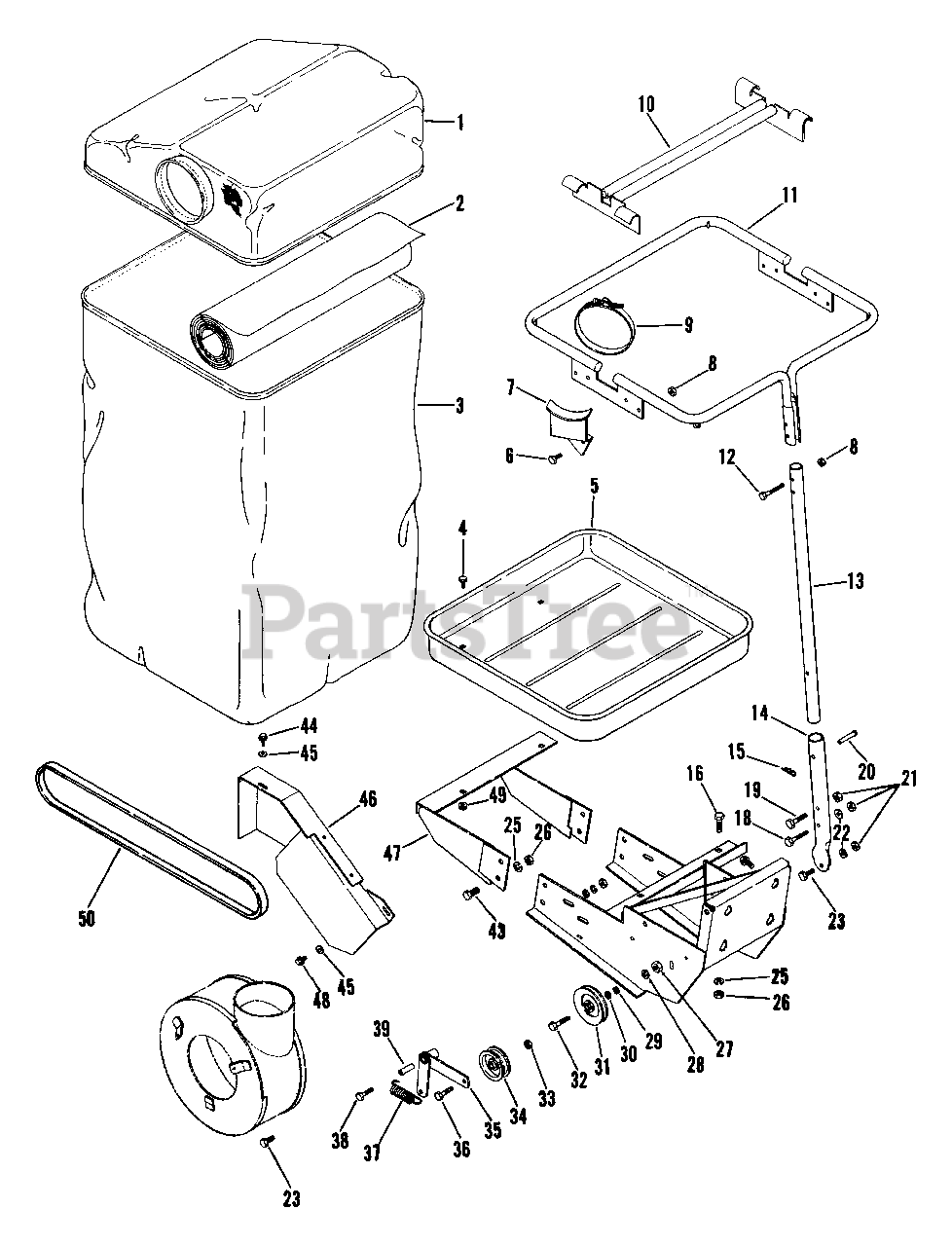

Bagger Vac Bag And Frame Parts Diagram

  • Title

1

Ariens 03023500

COVER

$

$

Not available

2

Ariens 03023300

BAGS PLASTIC

$

$

Not available

3

Ariens 03023700

BAG
(Superseded to 03087700)

$265.99

$

Usually ships in 4-12 days

0

4

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03026100

BAG TRAY

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03053500

BRACKET-ELBOW SUPPORT

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$17.99

$

Usually ships in 4-12 days

0

10

Ariens 03023600

CENTER BAG SUPPORT

$

$

Not available

11

Ariens 03023200

SUPPORT, BAG

$216.99

$

Usually ships in 4-12 days

0

12

Ariens 05913700

BLT-HEX .31-18X2.25 PL GR2
(Superseded to 05963700)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03441700

TUBE SUPPORT

$

$

Not available

14

Ariens 03427400

TUBE MOUNTING

$

$

Not available

15

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05920000

BLT-HEX .50-13X1.50 PL GR5
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

17

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

$

$

Not available

18

Ariens 05903000

BLT-HEX .38-16X2.25 GR2
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

18

Ariens 05914900

BLT-HEX .38-16X2.25 PL GR2
(Superseded to 05962900)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

20

Ariens 00212300

CLEVIS PIN

$3.49

$

In Stock, only 3 left!

0

21

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03443800

FRAME

$

$

Not available

25

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

26

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

In Stock, only 1 left!

0

27

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

29

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

30

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

32

Ariens 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$2.99

$

In Stock, only 1 left!

0

33

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

35

Ariens 03443700

IDLER ARM

$

$

Not available

36

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

37

Ariens 08322900

SG-TENS .120X1.0X4.46 WLD 47

Note: (12)

$34.99

$

Usually ships in 4-12 days

0

38

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 03443900

BSHG-SLV .334 X .50 X 1.62

Note: (12)

$

$

Not available

40

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

41

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

43

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

44

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 2 left!

0

46

Ariens 03444000

COVER

$

$

Not available

47

Ariens 03421100

BAG SUPPORT WELDMENT

$

$

Not available

48

Ariens 07402800

SCR-TAP .250-20X.75 HWH PL TR
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

49

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 07214000

V-BELT, HA-WRAPPED

Note: (4)

$

$

Not available

50

Ariens 07214800

OBSOLETE
(Superseded to 07218900)

Note: (12)

$38.99

$

In Stock, only 1 left!

0
