834007 - Ariens 42" Front Blade (SN: 000101 & Above) BLADE 42" Parts Diagram

42" Front Blade

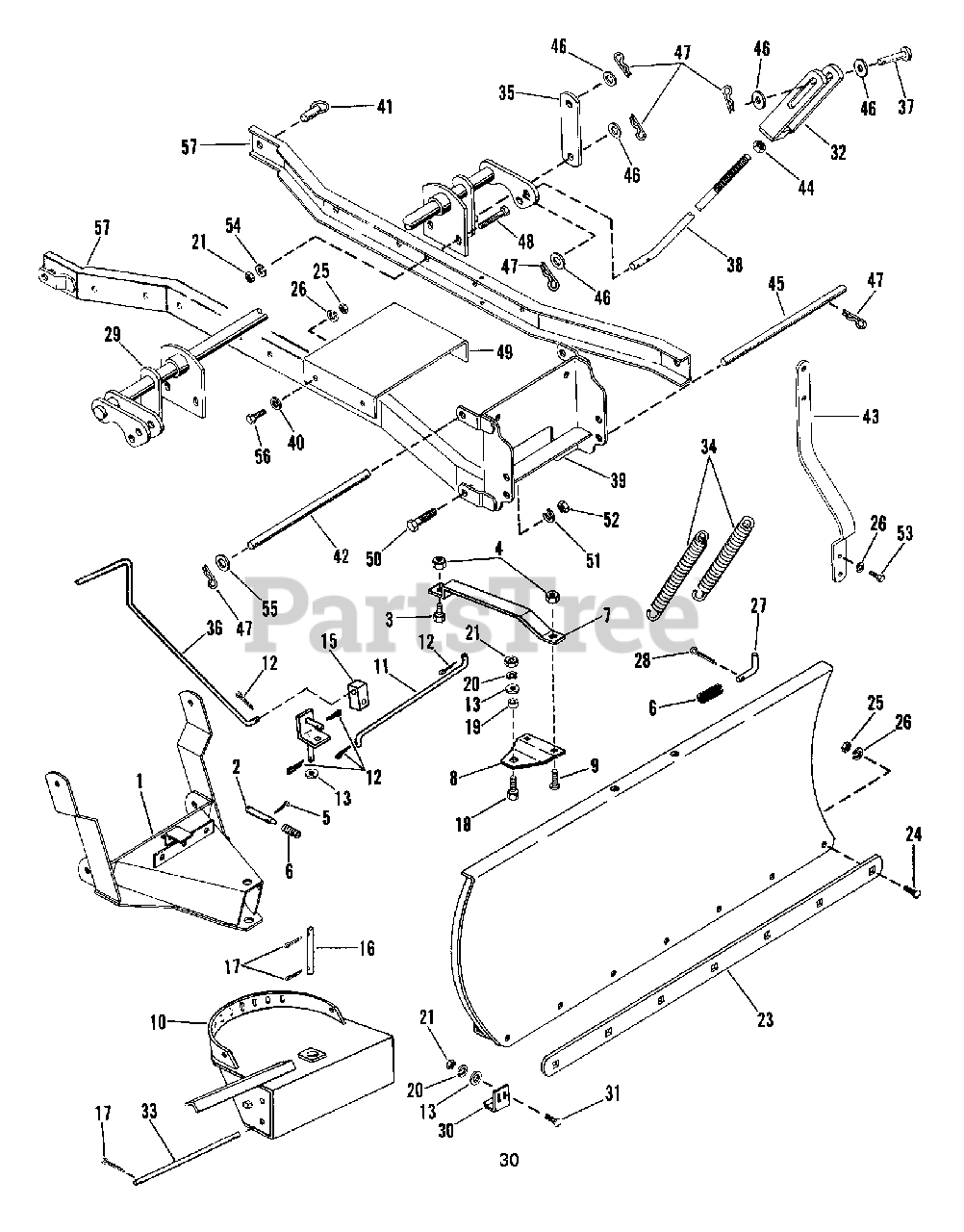

BLADE 42" Parts Diagram

  • Title

1

Ariens 03431200

FRAME

$

$

Not available

2

Ariens 03125400

LATCH PIN

$

$

Not available

3

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

4

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

6

Ariens 08313200

SG-COMP .080X.85X1.44

$38.99

$

Usually ships in 4-12 days

0

7

Ariens 03126700

STRAP

$

$

Not available

8

Ariens 03125200

PIVOT PLATE

$

$

Not available

9

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 03125100

SUPPORT

$

$

Not available

11

Ariens 03125300

ROD

$

$

Not available

12

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

13

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 03126900

ANGLE

$

$

Not available

15

Ariens 03126800

UNIVERSAL BLOCK JOINT

$

$

Not available

16

Ariens 03127600

PIN

$34.99

$

Usually ships in 4-12 days

0

17

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

$1.99

$

In Stock, only 2 left!

0

18

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 02914000

SPACER .406X.749X.162

$

$

Not available

20

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03431300

BLADE 42 INCH

$

$

Not available

23

Ariens 03431400

WEAR PLATE
(Superseded to 02918600)

$

$

Not available

24

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

26

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 03127700

JACK PIN

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

29

Ariens 03423200

LIFT BELLCRANK WELDMENT

$

$

Not available

30

Ariens 03127100

SKID SHOE

$

$

Not available

31

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

32

Ariens 03403300

LIFT CLEVIS WELDMENT

$

$

Not available

33

Ariens 03127200

ROD

$39.99

$

Usually ships in 4-12 days

0

34

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$45.99

$

In Stock, only 2 left!

0

35

Ariens 03423400

CONNECTING LINK

$5.99

$

Usually ships in 4-12 days

0

36

Ariens 03431500

ROD

$

$

Not available

37

Ariens 03105100

PIN-CLEV .494X1.94 YWZC

$

$

Not available

38

Ariens 03423100

LIFT ROD

$

$

Not available

39

Ariens 03431700

MOUNTING BRACKET

$

$

Not available

40

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

41

Ariens 03421500

HITCH PIN

$

$

Not available

42

Ariens 03424700

PIVOT ROD

$

$

Not available

43

Ariens 03424200

CHUTE CRANK SUPPORT

$

$

Not available

44

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 03432000

PIVOT ROD

$

$

Not available

46

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

47

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

48

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 03431600

STIFFENER BRACKET

$

$

Not available

50

Ariens 05904000

BLT-HEX .62-11X1.50 PL GR2
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

51

Ariens 06300700

WSHR-LK .625X.156 MED PL
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

52

Ariens 06500700

NUT-HEX .625-11
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

53

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

54

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

55

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

Usually ships in 4-12 days

0

56

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 03423000

CHANNEL WELDMENT

$

$

Not available
