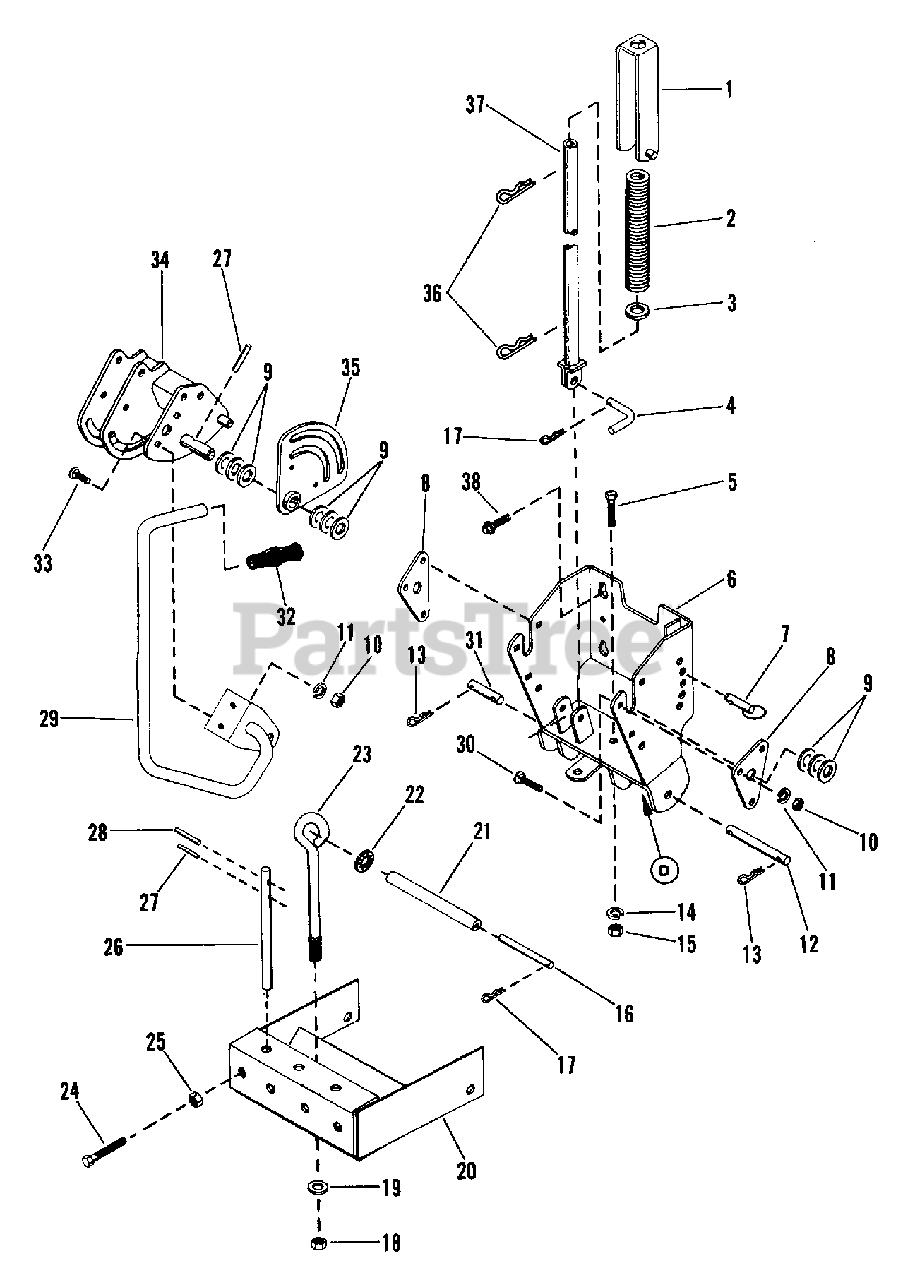

834005 - Ariens 32" Tiller Attachment (SN: 000101 & Above) Sleeve Hitch And Lift Parts Diagram

32" Tiller Attachment

Sleeve Hitch And Lift Parts Diagram

  • Title

1

Ariens 03430900

RETAINER

$

$

Not available

2

Ariens 08321500

SG-COMP .307X1.34X9.88 WLD ??

$

$

Not available

3

Ariens 06421000

WSHR-FL-STL 1.140X1.718X.134PL

$

$

Not available

4

Ariens 03427000

PIN

$

$

Not available

5

Ariens 05914600

BLT-HEX .50-13X1.25 PL GR5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

6

Ariens 03430000

LIFT FRAME

$

$

Not available

7

Ariens 03430500

HITCH PIN

$

$

Not available

8

Ariens 03430400

BEARING PLATE

$

$

Not available

9

Ariens 06420200

WSHR-FL-STL 1.062X1.344X.032PL

$4.49

$

In Stock, Qty 7

0

10

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

12

Ariens 03430800

PIN

Note: (05)

$

$

Not available

12

Ariens 03443500

PIN

Note: (13)

$

$

Not available

13

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 2 left!

0

14

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

15

Ariens 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 03430600

PIN

$

$

Not available

17

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

19

Ariens 06405400

WSHR-FL-STL .565X1.375X.125 PL

$

$

Not available

20

Ariens 03432100

DRAW BAR

$

$

Not available

21

Ariens 03432600

SPACER .632X.844X4.156

$

$

Not available

22

Ariens 07008500

NUT-PUSH .83 TINRMAN

$

$

Not available

23

Ariens 03432200

EYE BOLT

$

$

Not available

24

Ariens 05916400

BLT-HEX .50-13X2.50 PL GR2 FTH

$

$

Not available

25

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 03432300

PIN

$

$

Not available

27

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 18

0

28

Ariens 05807000

PIN-ROLL .250X3.00

$

$

Not available

29

Ariens 03430300

LIFT HANDLE

$

$

Not available

30

Ariens 06208100

BLT-RDHDSQNK .38-16X1.25 GR5PL
(Superseded to 06224100)

$2.49

$

In Stock, only 3 left!

0

31

Ariens 03430700

PIN

$

$

Not available

32

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

33

Ariens 06202800

BLT-RDHDSQNK .38-16X1.0 GR5PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

34

Ariens 03430100

LIFT CRANK

$

$

Not available

35

Ariens 03430200

QUADRANT

$

$

Not available

36

Ariens 06703800

PIN-HAIR INT .17X.68X3.50 PL
(Superseded to 06713300)

$2.99

$

In Stock, only 1 left!

0

37

Ariens 03431000

SPRING GUIDE

$

$

Not available

38

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

$

$

Not available
