83311 - Toro PTO Kit for Tractor (1969) PARTS LIST-POWER TAKE-OFF MODEL 8-3311 Parts Diagram

PTO Kit for Tractor

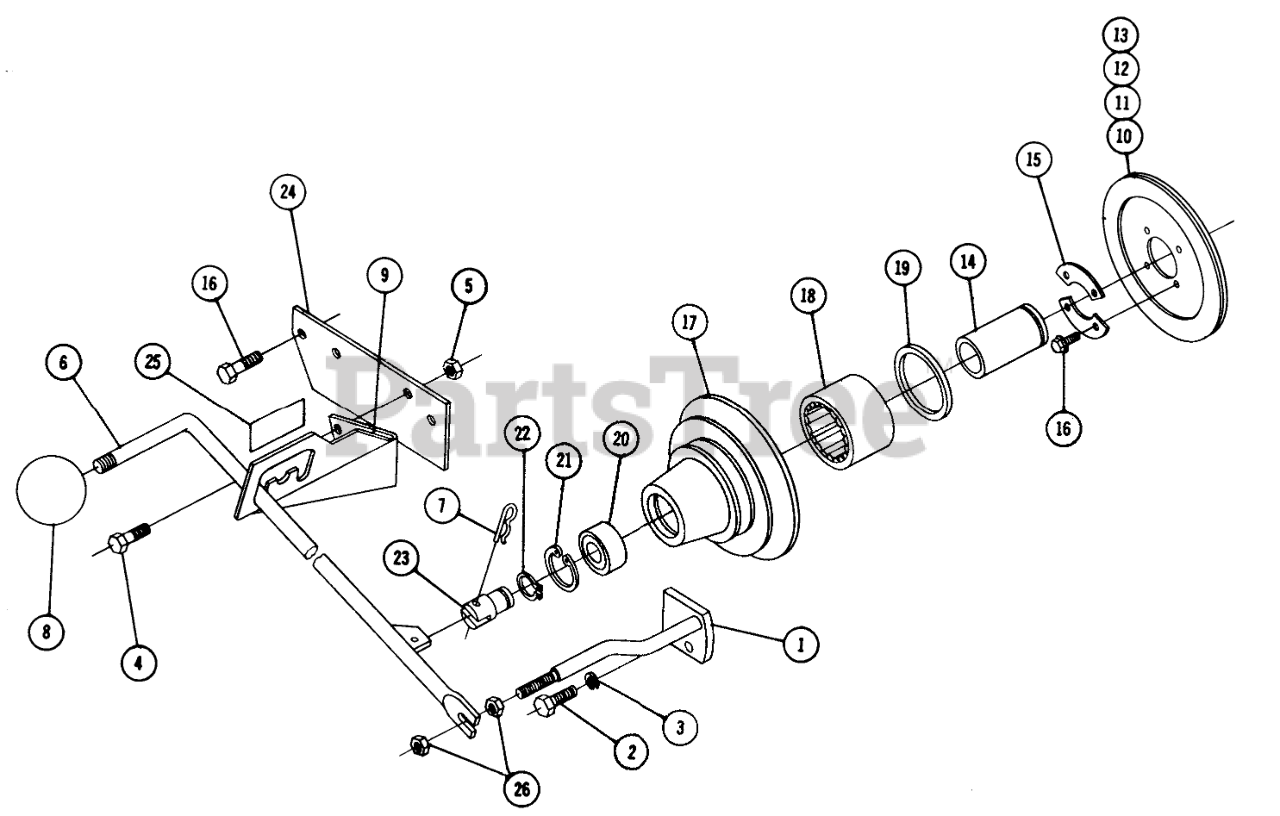

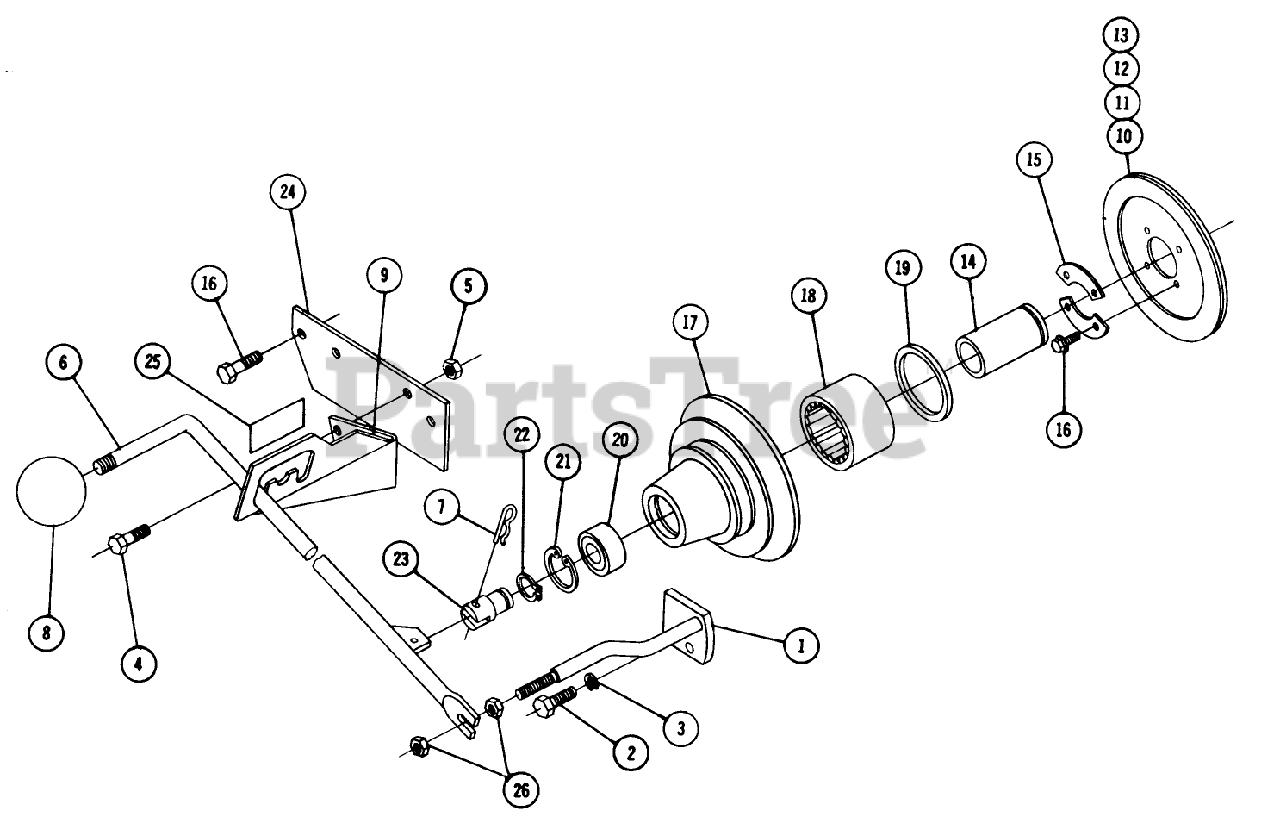

PARTS LIST-POWER TAKE-OFF MODEL 8-3311 Parts Diagram

  • Title
1

Toro 7270

Ass-y-Plate and Shaft

$

$

Not available

2

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

3

Toro 920083-4

Lockwasher

$

$

Currently unavailable

4

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

5

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

6

Toro 4355

ROD ASSY

$

$

Not available

7

Toro 933506-4

Hairpen

$

$

Currently unavailable

8

Toro 2709

Knob
(Superseded to 102891)

$69.99

$

Usually ships in 3-6 days

0

9

Toro 4383

Bracket

$

$

Not available

10

Toro 6655

L/A CLUTCHPLATE&FACI

$

$

Not available

11

Toro 6656

Clutch Plate
(Superseded to 6655)

$

$

Not available

12

Toro 4365

CLUTCH FACING

$90.99

$

In Stock, only 2 left!

0

13

Toro 6657

RIVET-BRASS

$1.49

$

In Stock, Qty 5

0

14

Toro 6935

BEARING RACE

$

$

Not available

15

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

16

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

17

Toro 6660

Housing-Clutch

$

$

Not available

18

Toro 6662

Seal
(Superseded to 106769)

$60.99

$

Usually ships in 3-6 days

0

19

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

20

Toro 5196

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 1 left!

0

21

Toro 935032

Snap Ring 1 3/4 Internal

$

$

Currently unavailable

22

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

23

Toro 5197

SHAFT

$

$

Not available

24

Toro 7273

Plate Adaptor

$

$

Currently unavailable

25

Toro 7359

Decal-Clutch Adj.
(Superseded to 5194)

$

$

Not available

26

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable
