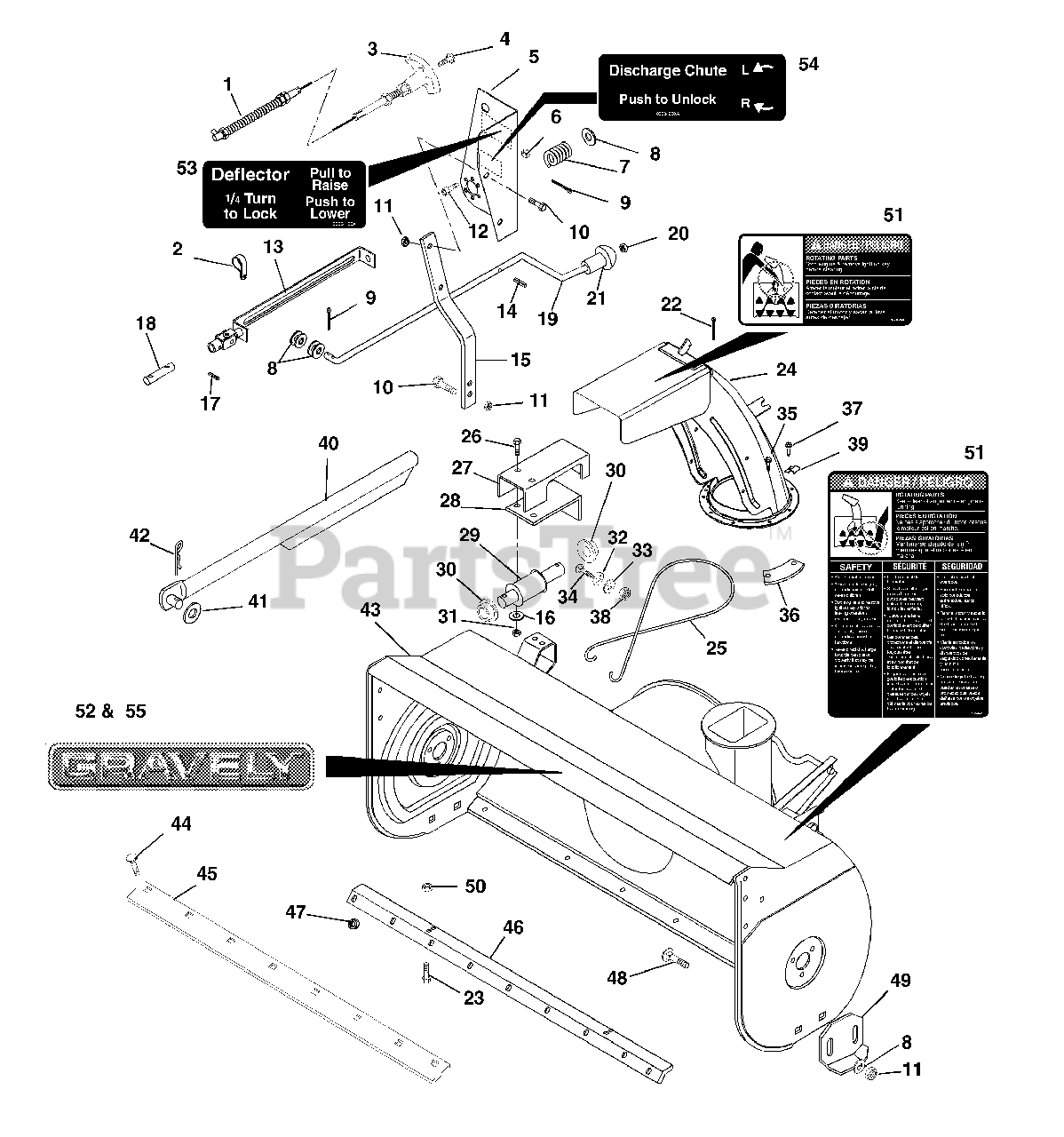

833005 - Gravely 40" Snow Blower for 4-Wheel Tractor (SN: 000101 & Above) Housing, Discharge Chute And Controls Parts Diagram

40" Snow Blower for 4-Wheel Tractor

Housing, Discharge Chute And Controls Parts Diagram

  • Title

1

Gravely 06943400

Control Cable

$168.99

$

In Stock, only 1 left!

0

2

Gravely 03334000

Cable Clamp

$

$

Not available

3

Gravely 07530800

Knob-Black

$9.49

$

In Stock, only 1 left!

0

4

Gravely 07029300

Screw-Machine 8-32 x .75

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 03333743

Control Bracket

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 06530600

Nut-Locking Dual Face 10-24

$0.99

$

In Stock, Qty 8

0

7

Gravely 036058

Spring-Compression
(Superseded to 08313200)

$38.99

$

Usually ships in 4-12 days

0

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06707500

Pin-Cotter .06 x .75

$0.99

$

In Stock, only 3 left!

0

10

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 036885

Screw-Socket Head 10-24 x .38
(Superseded to 05915600)

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 03333543

Slotted Bracket

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 05800200

Pin-Roll .125 x 1.25 (006-S/N 000913 & up, 005-S/N 000351 & up)

Note: (006-S/N 000913 & up, 005-S/N 000351 & up)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 456542

Pin-Roll .187 x 1.500 (006-S/N 000101-000912, 005-S/N 000101-000350)
(Superseded to 05809400)

Note: (006-S/N 000101-000912, 005-S/N 000101-000350)

$

$

Not available

15

Gravely 03324343

Bracket, Bar Crank

$

$

Not available

16

Gravely 06437300

Pin-Roll .187 x 1.000
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05803400

Pin-Roll .125 x .750

$0.99

$

In Stock, Qty 16

0

18

Gravely 03333400

Connector Rod

$

$

Not available

19

Gravely 08799300

Rod-Control (006-S/N 000913 & up)

Note: (006-S/N 000913 & up)

$

$

Not available

19

Gravely 58701300

Service Kit (006-S/N 000101-000912, 005-S/N 000101 & up)

Note: (006-S/N 000101-000912, 005-S/N 000101 & up)

$

$

Not available

20

Gravely 036903

Cap 3/8" Rod
(Superseded to 01019800)

$2.99

$

In Stock, Qty 15

0

21

Gravely 036902

Knob
(Superseded to 07508300)

$13.99

$

In Stock, Qty 7

0

22

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

23

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 53128200

Discharge Chute with Cap & Decal

$362.99

$

Usually ships in 4-12 days

0

25

Gravely 036888

Cable
(Superseded to 03187100)

$142.99

$

Usually ships in 4-12 days

0

26

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 03190143

Cover

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 03333343

Spool Bracket

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 03028643

Spool

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 010174

Bushing-Flange .76 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

31

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06310600

Washer-Lock .313 x .062

$5.99

$

In Stock, only 2 left!

0

33

Gravely 06437300

Washer-Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06213800

Bolt-Round Head Square Neck .25-20 x .62

$

$

Not available

35

Gravely 07411300

Screw-Tapping 12-24 x .500 Torx Head

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 049103

Chute Clamp
(Superseded to 02463500)

$

$

Not available

37

Gravely 07411400

Screw-Tapping 12-24 x .75 Torx Head
(Superseded to 07414600)

$3.49

$

Usually ships in 4-12 days

0

38

Gravely 06533200

Nut-Hex .250-20 Grade 2
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

39

Gravely 036897

Cable Clamp
(Superseded to 06900300)

$

$

Not available

40

Gravely 08863243

Rod-Push Weldment

$193.99

$

Usually ships in 4-12 days

0

41

Gravely 06439000

Washer-Flat-Steel .812 x 1.500 x .139
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06714000

Pin-Hair Cotter Internal .15 x 2.937

$2.99

$

In Stock, Qty 6

0

43

Gravely 53303200

40" Blower Housing (005-S/N 000437 & up)

Note: (Includes Item 55 )

$

$

Not available

43

Gravely 53302500

40" Blower Housing (005-S/N 000101-000436)

Note: (Includes Item 52)

$

$

Not available

43

Gravely 53303100

48" Blower Housing (006-S/N 001131 & up)

Note: (Includes Item 55 )

$

$

Not available

43

Gravely 53302600

48" Blower Housing (006-S/N 000101-001130)

Note: (Includes Item 52)

$

$

Not available

44

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 03331843

Scraper Blade 48"(006)

Note: (006)

$96.99

$

Usually ships in 4-12 days

0

45

Gravely 03331743

Scraper Blade 40"(005)

Note: (005)

$

$

Not available

46

Gravely 03185843

Scraper Blade Brace (006)

Note: (006)

$258.99

$

Usually ships in 4-12 days

0

46

Gravely 03330943

Scraper Blade Brace (005)

Note: (005)

$148.99

$

Usually ships in 4-12 days

0

47

Gravely 06529800

Nut-Locking-Center .31-18 (005)
(Superseded to 06500826)

Note: (005)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 06529800

Nut-Locking-Center .31-18 (006)
(Superseded to 06500826)

Note: (006)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 06212000

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 02483043

Runner-Skid Shoe (005-S/N 000437 & up, 006-S/N 001131 & up)

Note: (005-S/N 000437 & up, 006-S/N 001131 & up)

$39.99

$

Usually ships in 4-12 days

0

49

Gravely 040825

Runner-Skid Shoe (005-S/N 000101-000436, 006-S/N 000101-001130)
(Superseded to 03075553)

Note: (005-S/N 000101-000436, 006-S/N 000101-001130)

$39.99

$

Usually ships in 4-12 days

0

50

Gravely 06512200

Nut-Locking Top .375-16

$2.49

$

Usually ships in 4-12 days

0

51

Gravely 63611800

Decal-Danger-Set

$

$

Not available

52

Gravely 05355800

Decal, Gravely Logo
(Superseded to 07800338)

$11.99

$

In Stock, Qty 16

0

53

Gravely 051157

Deflector Decal
(Superseded to 03334100)

$

$

Not available

54

Gravely 051158

Chute Crank Decal
(Superseded to 03334200)

$

$

Not available

55

Gravely 05355800

Decal, 15" Gravely Logo-Krinkle Black
(Superseded to 07800338)

$11.99

$

In Stock, Qty 16

0
