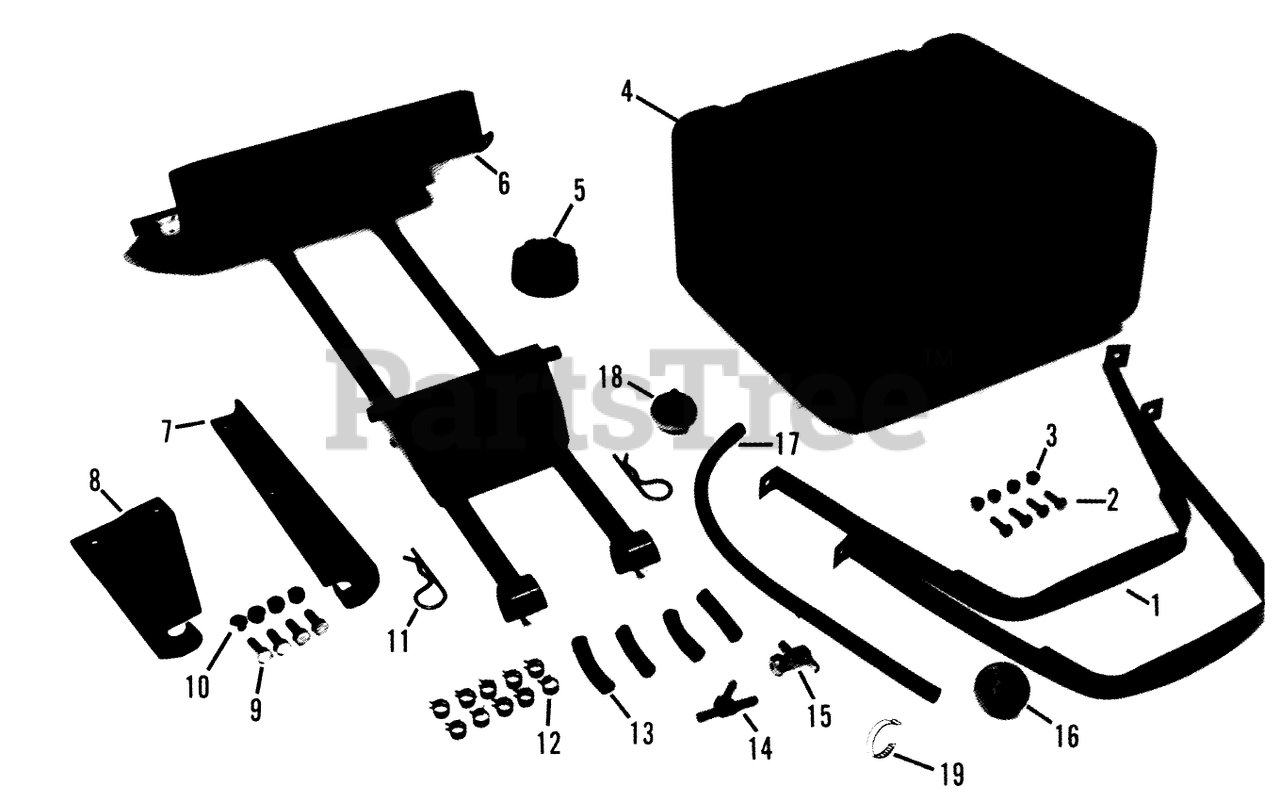

83300 - Toro Fuel Tank (1989) PARTS LIST-AUXILIARY FUEL TANK VEHICLE IDENTIFICATION NUMBER 83300 Parts Diagram

Fuel Tank

PARTS LIST-AUXILIARY FUEL TANK VEHICLE IDENTIFICATION NUMBER 83300 Parts Diagram

  • Title

1

Toro 114777

Strap
(Superseded to 62-5500)

$

$

Not available

2

Toro 908002

H H C S
(Superseded to 321-3)

Note: Indicates part is in 807153 Loose Parts Package

$1.49

$

In Stock, Qty 20+

0

3

Toro 915661

Nut
(Superseded to 3296-42)

Note: Indicates part is in 807153 Loose Parts Package

$0.99

$

In Stock, Qty 20+

0

4

Toro 114774

Fuel Tank
(Superseded to 62-4040)

$

$

Not available

5

Toro 114775

Tank Cap
(Superseded to 55-3570)

Note: Indicates part is in 807153 Loose Parts Package

$14.99

$

In Stock, Qty 11

0

6

Toro 113919

Frame
(Superseded to 83300)

$

$

Not available

7

Toro 115130

SUPPORT-BAGGER R. B
(Superseded to 115130-03)

$

$

Not available

8

Toro 115131

SUPPORT-BAGGER L. B
(Superseded to 115131-03)

$

$

Not available

9

Toro 908018

HHCS
(Superseded to 322-4)

Note: Indicates part is in 807153 Loose Parts Package

$0.99

$

In Stock, Qty 20+

0

10

Toro 915662

Nut
(Superseded to 3296-29)

Note: Indicates part is in 807153 Loose Parts Package

$2.49

$

In Stock, Qty 20+

0

11

Toro 933506

Hairpin
(Superseded to 9335064)

Note: Indicates part is in 807153 Loose Parts Package

$2.49

$

In Stock, Qty 11

0

12

Toro 101349

CLAMP
(Superseded to 2412-98)

Note: Indicates part is in 807153 Loose Parts Package

$1.49

$

In Stock, Qty 20+

0

13

Toro 113864

Fuel Hose-2" Long
(Superseded to 101338)

Note: Indicates part is in 807153 Loose Parts Package

$

$

Not available

14

Toro 111879

FITTING-FUEL 45-Y

Note: Indicates part is in 807153 Loose Parts Package

$

$

Not available

15

Toro 114773

Fuel Shut-off Valve
(Superseded to 1-603770)

Note: Indicates part is in 807153 Loose Parts Package

$8.49

$

In Stock, Qty 5

0

16

Toro 113897

VALVE-CHECK

Note: Indicates part is in 807153 Loose Parts Package

$

$

Not available

17

Toro 102604

Skid Bracket
(Superseded to 100061)

Note: Indicates part is in 807153 Loose Parts Package

$

$

Not available

18

Toro 109585

FILTER-FUEL
(Superseded to 139-5916)

Note: Indicates part is in 807153 Loose Parts Package

$9.49

$

In Stock, Qty 20+

0

19

Toro 100571

PLASTIC TIE

Note: Indicates part is in 807153 Loose Parts Package

$

$

Not available
