833 R (12A-750-190) - White Outdoor 33" Walk-Behind Mower (1999) Transaxle Assembly Parts Diagram

33" Walk-Behind Mower

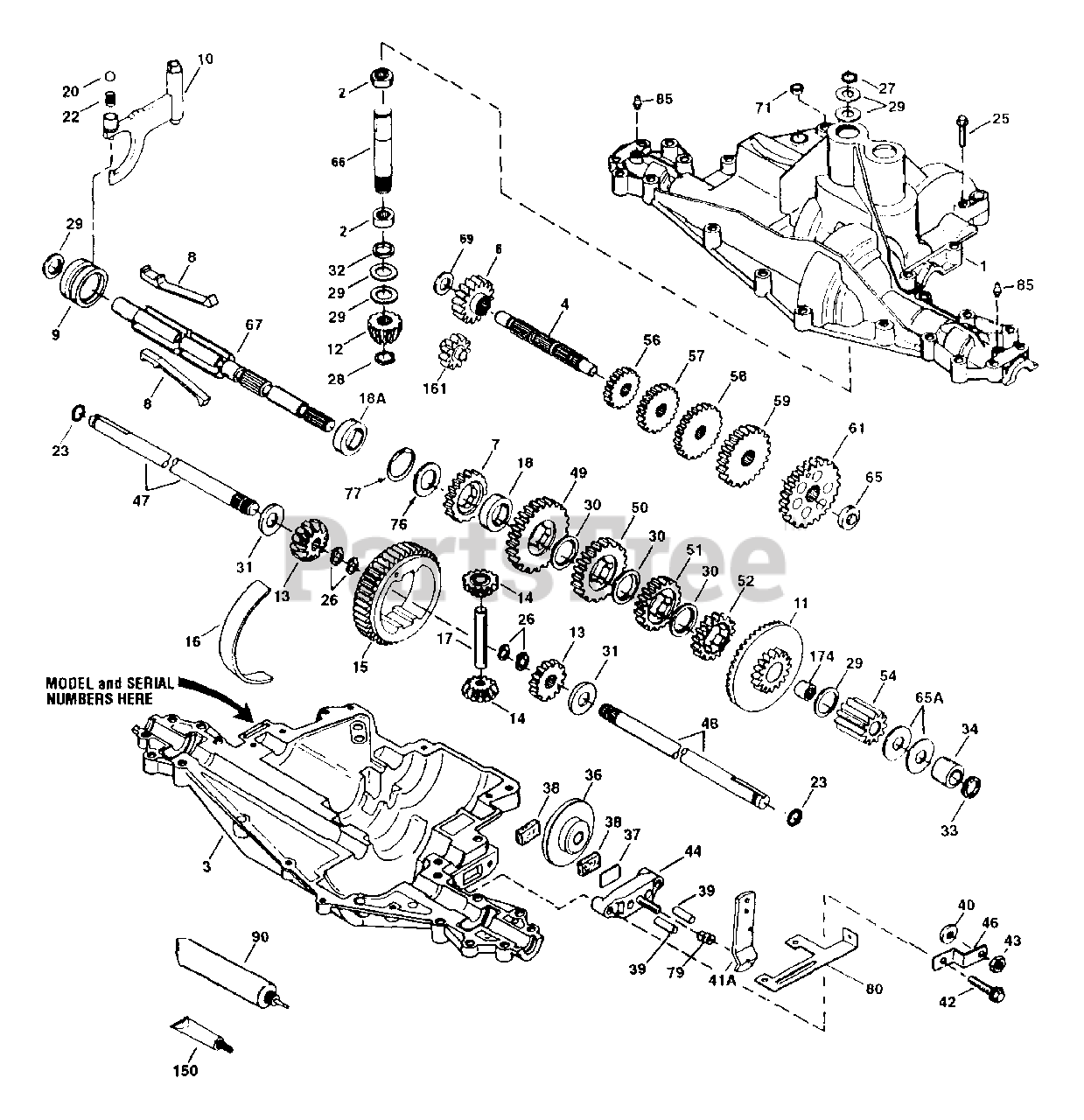

Transaxle Assembly Parts Diagram

  • Title

1

MTD TC-772113

Transaxle Cover

Note: NLA

$

$

Currently unavailable

1

MTD TC-772135

Transaxle Cover

$128.99

$

Usually ships in 3-12 days

0

2

MTD TC-780086A

Needle Bearing
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

3

MTD TC-770110A

Transaxle Case

$121.99

$

Usually ships in 3-12 days

0

4

MTD TC-776300

Countershaft

$57.99

$

Usually ships in 3-12 days

0

6

MTD TC-778281

Spur Gear (16 teeth)

$25.99

$

In Stock, only 1 left!

0

7

MTD TC-778122A

Spur Gear (22 teeth)

$39.99

$

Usually ships in 3-12 days

0

8

MTD TC-792160A

Shift Key

$21.99

$

In Stock, only 1 left!

0

9

MTD TC-784373

Shift Collar

$11.99

$

Usually ships in 3-12 days

0

10

MTD TC-784365

Shift Rod & Fork

Note: NLA

$

$

Currently unavailable

11

MTD TC-778261

Bevel Gear & Bearing

Note: NLA

$67.99

$

Usually ships in 3-12 days

0

12

MTD TC-778262

Bevel Pinion (14 teeth)

$17.99

$

In Stock, only 1 left!

0

13

MTD TC-778221

Bevel Gear (16 teeth)

Note: NLA

$

$

Not available

14

MTD TC-778131

Differential Pinion

$39.99

$

In Stock, Qty 6

0

15

MTD TC-778260

Ring Gear

Note: NLA

$88.99

$

Usually ships in 3-12 days

0

16

MTD TC-786150

Bearing Strip

$11.99

$

In Stock, only 1 left!

0

17

MTD TC-786139

Drive Pin

$12.99

$

In Stock, only 1 left!

0

18

MTD TC-786147

Neutral Spacer

Note: NLA

$4.49

$

Usually ships in 3-12 days

0

18A

MTD TC-786159

Neutral Spacer

Note: NLA

$

$

Not available

20

MTD TC-792077A

Ball, 5/16" dia

$4.49

$

In Stock, only 4 left!

0

22

MTD TC-792079

Spring

$4.49

$

In Stock, only 1 left!

0

23

MTD TC-788061

Seal Ring

$4.49

$

In Stock, Qty 6

0

25

MTD TC-792073A

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

26

MTD TC-792125

Retaining Ring

$4.49

$

In Stock, only 3 left!

0

27

MTD TC-792035

Retaining Ring

$4.49

$

In Stock, Qty 13

0

28

MTD TC-788040

Retaining Ring

$4.49

$

In Stock, only 4 left!

0

29

MTD TC-780072

Washer

$4.49

$

In Stock, Qty 20+

0

30

MTD TC-780108

Washer

$4.49

$

In Stock, Qty 9

0

31

MTD TC-780001

Washer

$4.49

$

In Stock, only 4 left!

0

32

MTD TC-792001

O Ring

$4.49

$

In Stock, Qty 11

0

33

MTD TC-788076

O Ring

$4.49

$

Usually ships in 3-12 days

0

34

MTD TC-780159

Bushing

$4.49

$

In Stock, only 1 left!

0

36

MTD TC-790071

Brake Disk

$16.99

$

Usually ships in 3-12 days

0

37

MTD TC-90007

Brake Pad Plate

Note: NLA

$

$

Currently unavailable

38

MTD TC-799021A

Brake Pad
(Superseded to TC-799021)

Note: (Pkg. of 2)

$10.99

$

In Stock, only 1 left!

0

39

MTD TC-786026

Dowel Pin

$4.49

$

Usually ships in 3-12 days

0

40

MTD 736-3078

Washer

$4.49

$

In Stock, only 3 left!

0

41

MTD TC-790045

Brake Lever

Note: NLA

$

$

Not available

42

MTD TC-792073A

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

43

MTD 912-0237

Locknut, 5/16 24
(Superseded to 712-0237)

$

$

Not available

44

MTD TC-790025

Brake Pad Holder

$17.99

$

Usually ships in 3-12 days

0

46

MTD TC-786086

Brake Lever Bracket

$6.49

$

Usually ships in 3-12 days

0

47

MTD TC-774747

Axle (16-1/4" long)

Note: NLA

$

$

Not available

48

MTD TC-774888

Axle (11" long)

$56.99

$

Usually ships in 3-12 days

0

49

MTD TC-778124A

Spur Gear (30 teeth)

$34.99

$

In Stock, only 3 left!

0

50

MTD TC-778123A

Spur Gear (25 teeth)

$48.99

$

Usually ships in 3-12 days

0

51

MTD TC-778122A

Spur Gear (22 teeth)

$39.99

$

Usually ships in 3-12 days

0

52

MTD TC-778273

Spur Gear (19 teeth)

$49.99

$

Usually ships in 3-12 days

0

54

MTD TC-778263

Spur Gear (11 teeth)

Note: NLA

$85.99

$

Usually ships in 3-12 days

0

56

MTD TC-778126A

Spur Gear (20 teeth)

$48.99

$

Usually ships in 3-12 days

0

57

MTD TC-778127A

Spur Gear (25 teeth)

$53.99

$

In Stock, only 3 left!

0

58

MTD TC-778128A

Spur Gear (28 teeth)

$40.99

$

Usually ships in 3-12 days

0

59

MTD TC-778129A

Spur Gear (30 teeth)

Note: NLA

$37.99

$

In Stock, only 1 left!

0

61

MTD TC-778265

Spur Gear (34 teeth)

$40.99

$

In Stock, only 1 left!

0

65

MTD TC-780162

Washer

Note: NLA

$6.49

$

Usually ships in 3-12 days

0

65A

MTD TC-780160

Washer

$4.49

$

Usually ships in 3-12 days

0

66

MTD TC-776299

Input Shaft

$22.99

$

In Stock, only 1 left!

0

67

MTD TC-776352

Shifter & Brake Shaft

Note: NLA

$156.99

$

In Stock, only 1 left!

0

69

MTD TC-780161

Washer

$4.49

$

Usually ships in 3-12 days

0

71

MTD TC-788069

Square Cut Ring

$4.49

$

Usually ships in 3-12 days

0

76

MTD TC-780090

Washer

$4.49

$

In Stock, Qty 7

0

77

MTD TC-788078A

Inverted Retaining Ring

Note: (Pkg. of 2)

$4.49

$

Usually ships in 3-12 days

0

79

MTD TC-792144

Spring

$4.49

$

In Stock, only 2 left!

0

80

MTD TC-790063A

Brake Bracket

Note: NLA

$5.49

$

Usually ships in 3-12 days

0

85

MTD 737-04006

Lubrication Fitting

$

$

Not available

90

MTD TC-788067C

Grease

Note: (32 oz. bottle Bentonite grease)

$

$

Not available

150

MTD TC-510334

Gasket Eliminator

Note: (Loctite #515)

$12.99

$

Usually ships in 3-12 days

0

161

MTD TC-776302

Reverse Idler

Note: NLA

$21.99

$

Usually ships in 3-12 days

0

174

MTD TC-740085

Needle Bearing

$

$

Currently unavailable
