833 R (12A-750-190) - White Outdoor 33" Walk-Behind Mower (1999) Handlebar And Console Assembly Parts Diagram

33" Walk-Behind Mower

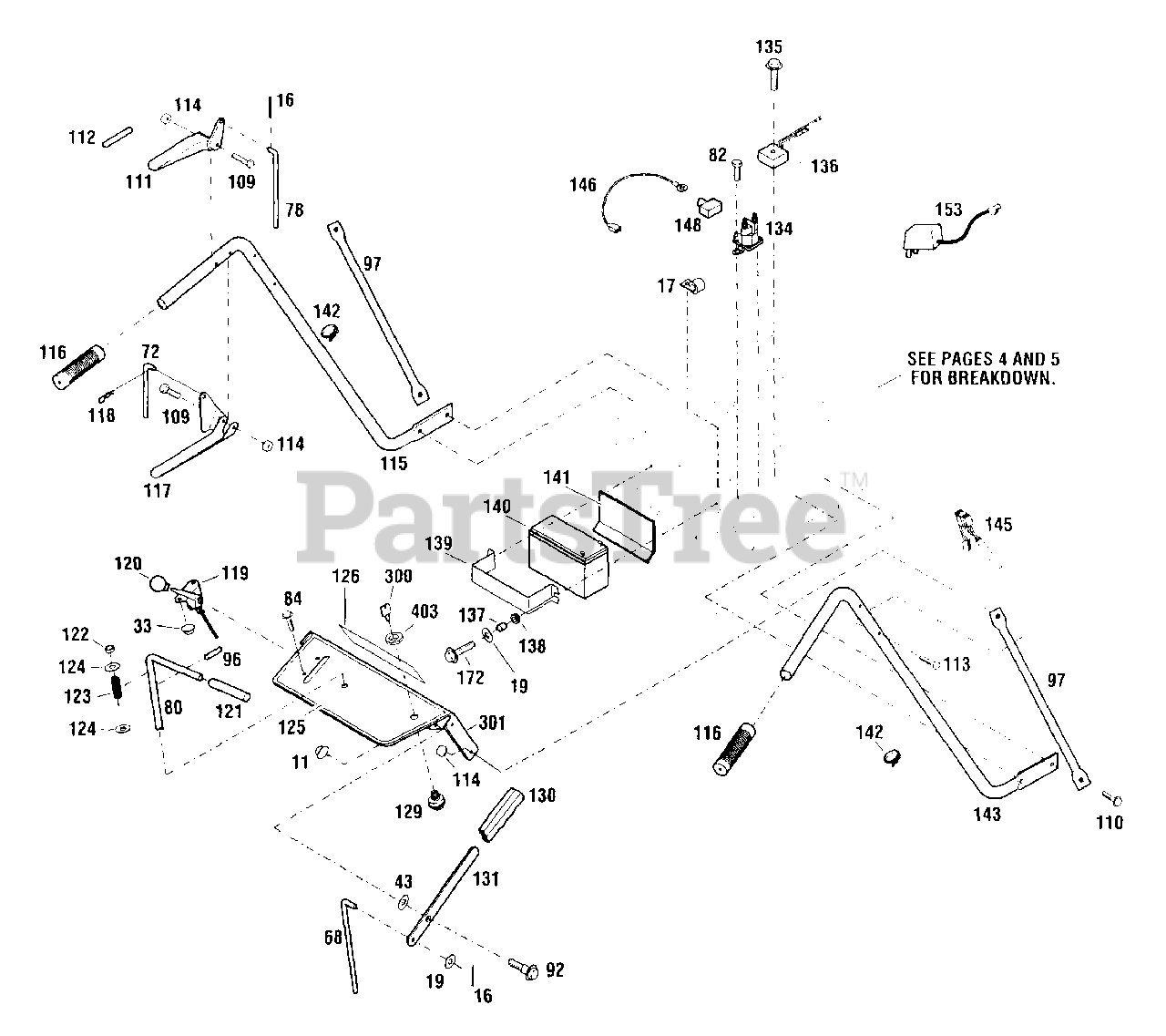

Handlebar And Console Assembly Parts Diagram

  • Title

11

MTD 1186393

Flange Locknut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

16

MTD 914-0111

Cotter Pin, 3/32 x 5/8
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

17

MTD 1721252

J-Clip

Note: NLA

$

$

Not available

19

MTD 936-0275

Flat Washer, 5/16
(Superseded to 736-0275)

$

$

Not available

33

MTD 1186389

Flange Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

43

MTD 1702646

Flat Washer, 1/2

$

$

Not available

68

MTD 1769888

Upper Blade Rod

$

$

Not available

72

MTD 1773607

Upper Transmission Rod

$

$

Not available

78

MTD 1769872

Upper Brake Rod

$

$

Not available

80

MTD 1769874

Shift Rod

$33.99

$

Usually ships in 3-6 days

0

82

MTD 1724492

Thread Cut Screw, 1/4-20 x 1/2

Note: NLA For model 833-E

$

$

Not available

84

MTD 710-0599

Flange Lock Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

92

MTD 1703051

Shoulder Bolt

$11.99

$

Usually ships in 3-6 days

0

96

MTD 1185279

Roll Pin, 1/4 x 2-1/4

$

$

Not available

97

MTD 1915545001

Brace, Handlebar

$

$

Not available

109

MTD 1111601

Hex Screw, 1/4-20 x 1-3/4

$

$

Not available

110

MTD 710-04043

Flange Lock Screw, 5/16 x 3/4

$4.49

$

Usually ships in 3-6 days

0

111

MTD 1770445001

Control Handle

$

$

Not available

112

MTD 1768452

Operator Presence Control Decal

Note: NLA

$

$

Not available

113

MTD 710-0136

Hex Screw, 1/4-20 x 1-3/4, Grade 8

$3.99

$

In Stock, Qty 20+

0

114

MTD 912-0291

Locknut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

115

MTD 1764922001

Left Handlebar

$94.99

$

In Stock, only 1 left!

0

116

MTD 720-0274

Handle Grip

$11.99

$

In Stock, Qty 11

0

117

MTD 1773605001

Control Handle

$

$

Not available

118

MTD 1717897

Hair Pin, 5/64

$3.49

$

Usually ships in 3-6 days

0

119

MTD 1768191P

Throttle Control

$

$

Not available

120

MTD 731-0108

Knob

$9.49

$

In Stock, only 2 left!

0

121

MTD 720-0312

Handle Grip

$4.99

$

In Stock, Qty 5

0

122

MTD 1715716

Nylon Bushing

$3.49

$

Usually ships in 3-6 days

0

123

MTD 1721492

Compression Spring

$

$

Not available

124

MTD 936-0326

Flat Washer, 1/2
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

125

MTD 1768456

Warning Decal

Note: NLA For model 833-R

$

$

Not available

125

MTD 1768457

Warning Decal

Note: NLA For model 833-E

$

$

Not available

126

MTD 1915681

Logo Decal

Note: NLA For model 833-R

$

$

Not available

126

MTD 1915771

Logo Decal

Note: NLA For model 833-E

$

$

Not available

129

MTD 925-0267B

Ignition Switch

Note: NLA For model 833-E

$35.99

$

In Stock, Qty 20+

0

130

MTD 720-0313

Handle Grip

$19.99

$

Usually ships in 3-6 days

0

131

MTD 1768223

Mower Engage Lever

$

$

Not available

134

MTD 1752137P

Solenoid

$70.99

$

Usually ships in 3-6 days

0

135

MTD 1747027

Thread-Cut Screw, 1/4-20 x 1-1/2

Note: NLA For model 833-E

$

$

Not available

136

MTD BS-794360

Regulator

$64.99

$

In Stock, only 2 left!

0

137

MTD 1749778

Spacer

Note: NLA For model 833-E

$

$

Not available

138

MTD 1769080

Grommet

$

$

Not available

139

MTD 1915696065

Battery Bracket

Note: NLA For model 833-E

$

$

Not available

140

MTD 1915750P

Battery

$

$

Not available

141

MTD 1769081

Battery Pad

Note: NLA For model 833-E

$

$

Currently unavailable

142

MTD 725-0157

Plastic Tie

$3.99

$

In Stock, Qty 20+

0

143

MTD 1764923001

Right Handlebar

$101.99

$

Usually ships in 3-6 days

0

145

MTD 1915758

Wiring Harness

$

$

Not available

146

MTD 1915759

Wire Lead

$

$

Not available

148

MTD 1734364

Boot

Note: NLA For model 833-E

$

$

Currently unavailable

153

MTD 1768449

Battery Charger
(Superseded to 725-13345)

Note: For model 833-E. (Shipped loose)

$65.99

$

Usually ships in 3-6 days

0

172

MTD 710-1260A

Screw, 5/16-18 x 3/4"

$3.99

$

In Stock, Qty 20+

0

300

MTD 1753986

Ignition Key

Note: NLA For model 833-E

$

$

Not available

301

MTD 1915734

Console Assembly

Note: NLA For model 833-R. (Incl. Ref. 125)

$

$

Not available

MTD 1915735

Console Assembly

Note: NLA For model 833-E. (Incl. Ref. 125)

$

$

Not available

403

MTD 1770592

Nut, Ignition Switch

Note: NLA

$

$

Currently unavailable
