833 R (12A-750-190) - White Outdoor 33" Walk-Behind Mower (1998) Mower Deck Assembly Parts Diagram

33" Walk-Behind Mower

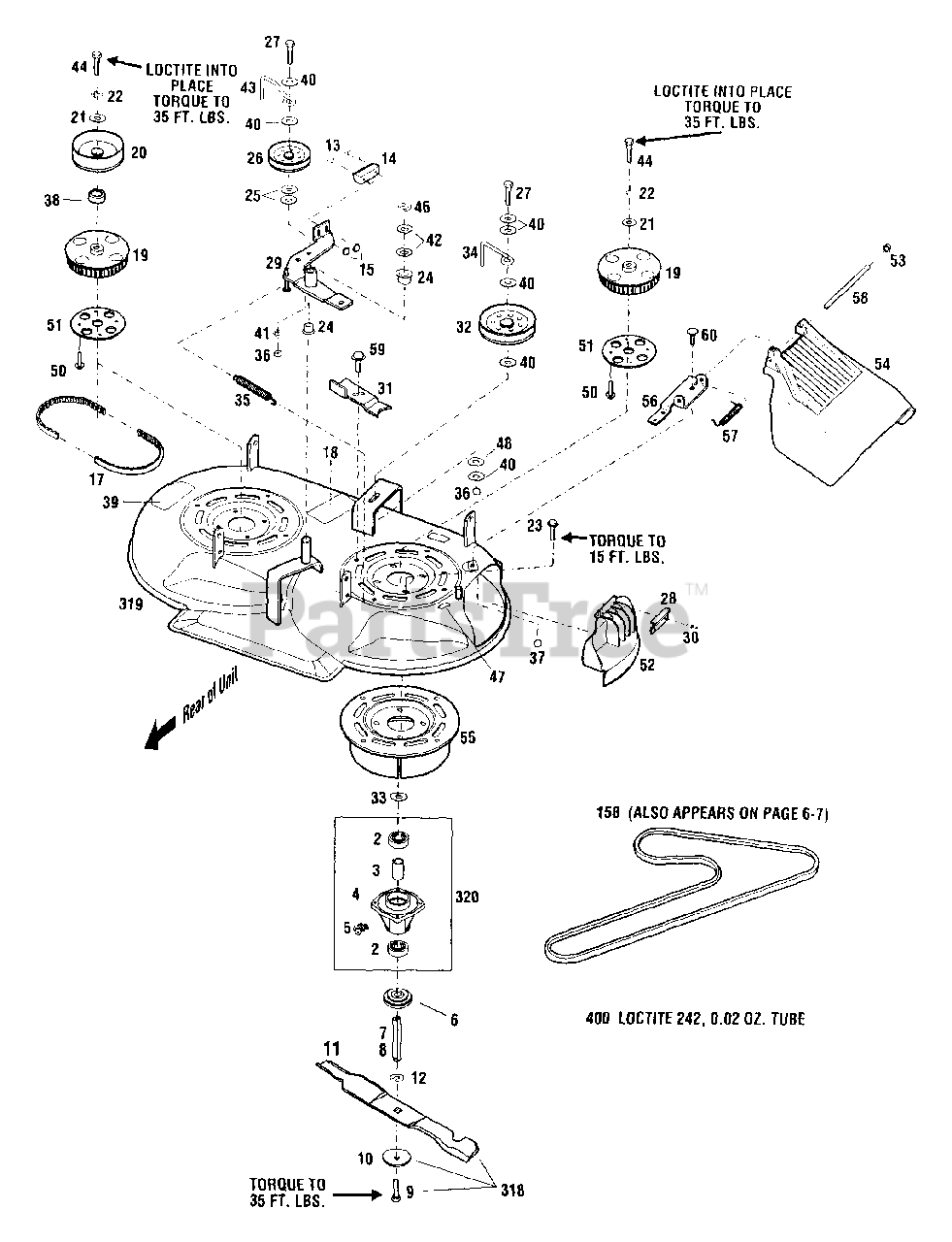

Mower Deck Assembly Parts Diagram

  • Title

2

MTD 1185574P

Ball Bearing

$34.99

$

In Stock, Qty 11

0

3

MTD 1746869

Spacer

$19.99

$

In Stock, only 2 left!

0

4

MTD 1769048099

Mower Spindle

$175.99

$

In Stock, Qty 12

0

5

MTD 737-3004

Grease Fitting

$11.99

$

In Stock, Qty 6

0

6

MTD 1765029

Blade Spacer

$13.99

$

In Stock, Qty 10

0

7

MTD 1918880

Right Spindle Shaft

$97.99

$

In Stock, Qty 20+

0

8

MTD 1918880

Left Spindle Shaft (long)

$97.99

$

In Stock, Qty 20+

0

9

MTD 1765196

Screw, 7/16-14 x 1

$3.99

$

In Stock, Qty 20+

0

10

MTD 1765197

Belleville Washer

$26.99

$

In Stock, only 4 left!

0

11

MTD 1910917

Blade, 33" Mulching
(Superseded to 1910917001)

$33.99

$

In Stock, Qty 16

0

12

MTD 1185649

Retaining Ring

$

$

Not available

13

MTD 1771081

Flat Head Screw, #10-24 x 1-1/4

$3.49

$

In Stock, only 2 left!

0

14

MTD 1771083

Brake Pad

$

$

Not available

15

MTD 712-0272

Nylon Locknut, #10-24

$3.99

$

Usually ships in 3-6 days

0

17

MTD 1773600

Toothed Drive Belt

$48.99

$

In Stock, only 2 left!

0

18

MTD 1768435

Caution Decal

Note: NLA

$

$

Not available

19

MTD 913-04050

Cogged Pulley, 56T

$162.99

$

In Stock, only 1 left!

0

20

MTD 1918625

Drive Pulley

$

$

Not available

21

MTD 736-0322

Flat Washer, 7/16

$9.49

$

In Stock, Qty 8

0

22

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

23

MTD 710-0602

Flange Lock Screw, 5/16-18 x 1

$4.49

$

In Stock, Qty 20+

0

24

MTD 1764140

Flange Bushing

$5.49

$

In Stock, Qty 11

0

25

MTD 1701055

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

26

MTD 1918626

Idler Pulley

$33.99

$

In Stock, only 1 left!

0

27

MTD 1100062

Hex Head Capscrew, 3/8-16 x 2-1/2

$

$

Not available

28

MTD 1911054

Adapter Trim

Note: NLA

$

$

Not available

29

MTD 1770803

Idler Arm

$

$

Not available

30

MTD 1186059

Pop Rivet

Note: NLA

$

$

Currently unavailable

31

MTD 1911021001

Belt Tension Adjustment Bracket

$

$

Not available

32

MTD 1749911

Idler Pulley

$

$

Not available

33

MTD 1766787

Special Thrust Washer

$6.49

$

In Stock, only 2 left!

0

34

MTD 1720717

Belt Guide

$

$

Not available

35

MTD 1756595

Extension Spring

$17.99

$

In Stock, only 1 left!

0

36

MTD 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

37

MTD 1732499

Locknut, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

38

MTD 1723996

Pulley Spacer
(Superseded to 750-05218)

$7.49

$

In Stock, only 1 left!

0

39

MTD 1739687

Danger Decal

$7.49

$

Usually ships in 3-6 days

0

40

MTD 736-0262

Flat Washer, 3/8 x 3/4

$3.99

$

In Stock, Qty 20+

0

41

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

42

MTD 1701447

Flat Washer

$4.49

$

In Stock, Qty 18

0

43

MTD 1764135

Belt Guide

$

$

Not available

44

MTD 1769397

Screw, 7/16-14 x 1-1/4
(Superseded to 710-04070)

$3.99

$

In Stock, Qty 20+

0

46

MTD 916-0101

Retaining Ring
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

47

MTD 777S30503

Warning Decal

$11.99

$

In Stock, only 3 left!

0

48

MTD 1185715

Pyramid Washer, 3/8

$

$

Not available

50

MTD 710-04065

Triplask Screw, 1/4-20 x 5/8

$6.49

$

In Stock, Qty 20+

0

51

MTD 1771922001

Sprocket Plate

$

$

Not available

52

MTD 631-04252

Mulcher Cover, Fold-Up Style

Note: (Incl. Ref. 28 and 30)

$33.99

$

In Stock, only 2 left!

0

53

MTD 726-0135

Cap

$6.99

$

In Stock, only 1 left!

0

54

MTD 931-04244

Discharge Chute

$70.99

$

In Stock, Qty 20+

0

55

MTD 987-02004-0637

Weldment Doubler

$

$

Not available

56

MTD 1910951001

Bracket, Chute Hinge

$32.99

$

Usually ships in 3-6 days

0

57

MTD 1910971

Spring, Discharge Chute

$12.99

$

In Stock, only 2 left!

0

58

MTD 1910972

Pin, Discharge Chute

$13.99

$

In Stock, only 1 left!

0

59

MTD 710-1260A

Screw, Thread-Forming

$3.99

$

In Stock, Qty 20+

0

60

MTD 1186098

Bolt, Carriage, 3/8-18 x 3/4

$

$

Not available

158

MTD 1769767

V-Belt

$44.99

$

In Stock, Qty 20+

0

318

MTD 1915787

Mulching Blade Kit

Note: NLA (Incl. Refs. 9, 10 and 11)

$

$

Currently unavailable

319

MTD 1915739

Mower Deck Assembly

Note: NLA (Incl. Refs. 18, 39 & 47)

$

$

Not available

320

MTD 1769048099

Mower Spindle Assembly

Note: (Incl. Refs. 2, 3, 4 & 5)

$175.99

$

In Stock, Qty 12

0

400

MTD GW-97092

Loctite 242, 0.02 oz. Tube

Note: Item not included with unit. order separately.

$17.99

$

Usually ships in 3-6 days

0
