833 R (12A-750-100) - Cub Cadet Walk-Behind Mower Peerless Transaxle Parts Diagram

Walk-Behind Mower

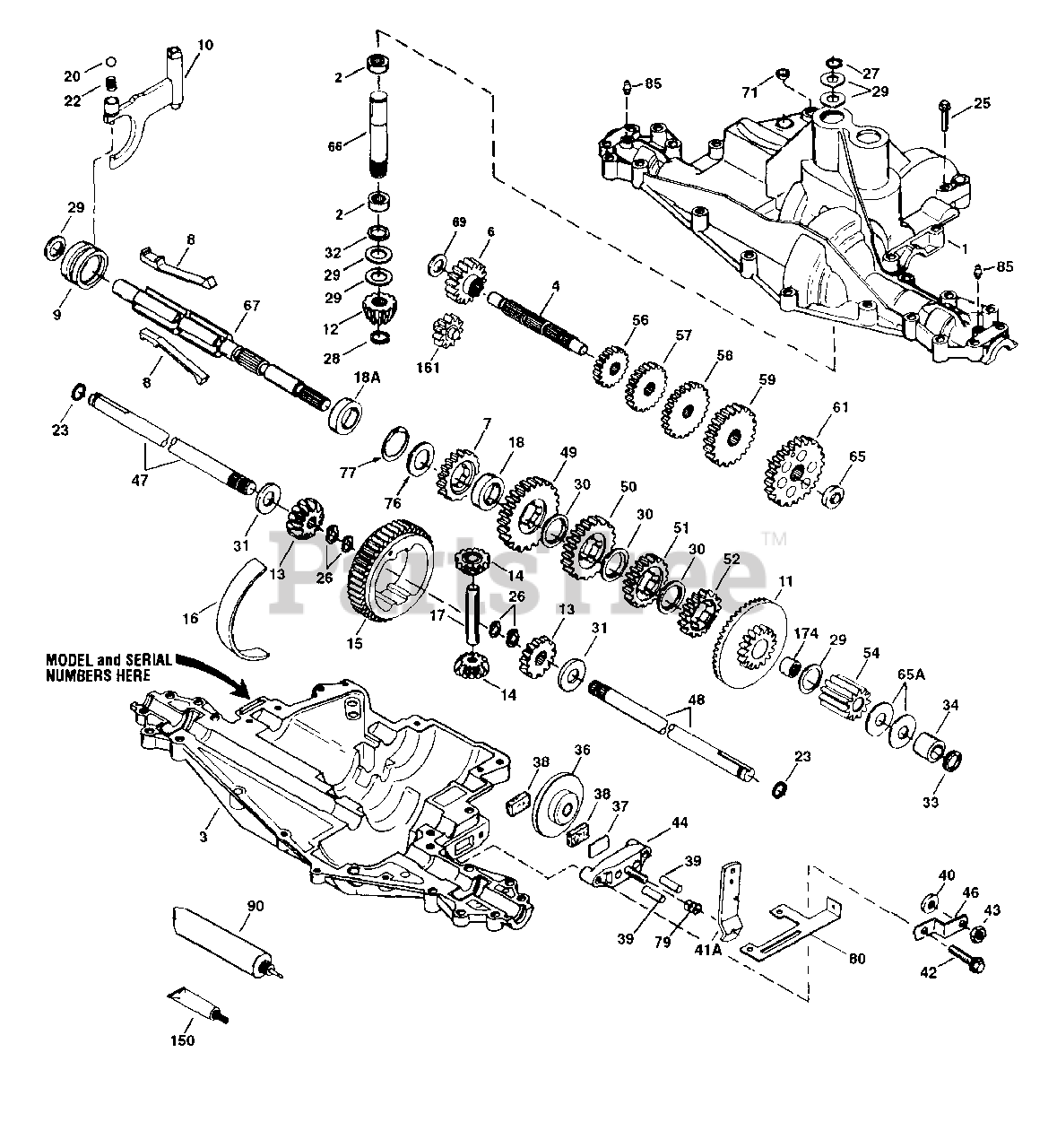

Peerless Transaxle Parts Diagram

  • Title

1

Cub Cadet TC-772135

Transaxle Cover

$128.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-780086

Needle Bearing

$37.99

$

Usually ships in 3-6 days

0

3

Cub Cadet TC-770110

Transaxle Case

$

$

Not available

4

Cub Cadet TC-776300

Countershaft

$57.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-778281

Spur Gear

Note: (16 teeth)

$25.99

$

In Stock, only 1 left!

0

7

Cub Cadet TC-778122A

Spur Gear

Note: (22 teeth)

$39.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-792160

Shift Key
(Superseded to TC-792160A)

$21.99

$

In Stock, only 1 left!

0

9

Cub Cadet TC-784373

Shift Collar

$11.99

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-784365

Shift Rod & Fork

$

$

Currently unavailable

11

Cub Cadet TC-778261

Bevel Gear & Bearing

Note: (Incl. 174)

$67.99

$

Usually ships in 3-12 days

0

12

Cub Cadet TC-778262

Bevel Pinion

Note: (14 teeth)

$17.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-778221

Bevel Gear

Note: (16 teeth)

$

$

Not available

14

Cub Cadet TC-778068

Differential Pinion
(Superseded to TC-778131)

$39.99

$

In Stock, Qty 6

0

15

Cub Cadet TC-778260

Ring Gear

$88.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-786150

Bearing Strip

$11.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-786139

Drive Pin

$12.99

$

In Stock, only 1 left!

0

18

Cub Cadet TC-786147

Neutral Spacer

$4.49

$

Usually ships in 3-12 days

0

18A

Cub Cadet TC-786159

Neutral Spacer

$

$

Not available

20

Cub Cadet TC-792077

Ball, 5/16" dia
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet TC-792079

Spring

$4.49

$

In Stock, only 1 left!

0

23

Cub Cadet TC-788061

Seal Ring

$4.49

$

In Stock, Qty 6

0

25

Cub Cadet TC-792073

Screw, 1/4-20 x 1-1/4"
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

26

Cub Cadet TC-792125

Retaining Ring

$4.49

$

In Stock, only 3 left!

0

27

Cub Cadet TC-792035

Retaining Ring

$4.49

$

In Stock, Qty 13

0

28

Cub Cadet TC-788040

Retaining Ring

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet TC-780072

Washer

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet TC-780108

Washer

$4.49

$

In Stock, Qty 9

0

31

Cub Cadet TC-780001

Washer

$4.49

$

In Stock, only 4 left!

0

32

Cub Cadet TC-792001

"O" Ring

$4.49

$

In Stock, Qty 11

0

33

Cub Cadet TC-788076

"O" Ring

$4.49

$

Usually ships in 3-12 days

0

34

Cub Cadet TC-780159

Bushing

$4.49

$

In Stock, only 1 left!

0

36

Cub Cadet TC-790071

Brake Disk

$16.99

$

Usually ships in 3-12 days

0

37

Cub Cadet TC-90007

Brake Pad Plate

$

$

Currently unavailable

38

Cub Cadet TC-799021

Brake Pad

Note: (pkg. of 2)

$10.99

$

In Stock, only 1 left!

0

39

Cub Cadet TC-786026

Dowel Pin

$4.49

$

Usually ships in 3-12 days

0

40

Cub Cadet TC-792076A

Washer
(Superseded to 736-3078)

$4.49

$

In Stock, only 4 left!

0

41

Cub Cadet TC-790045

Brake Lever

$

$

Not available

42

Cub Cadet TC-792073

Screw, 1/4-20 x 1-1/4"
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

43

Cub Cadet TC-792075

Locknut, 5/16-24
(Superseded to 912-0237)

$

$

Not available

44

Cub Cadet TC-790025

Brake Pad Holder

$17.99

$

Usually ships in 3-12 days

0

46

Cub Cadet TC-786086

Brake Lever Bracket

$6.49

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-774747

Axle

Note: (16-1/4" long)

$

$

Not available

48

Cub Cadet TC-774888

Axle

Note: (11" long)

$56.99

$

Usually ships in 3-12 days

0

49

Cub Cadet TC-778124A

Spur Gear

Note: (30 teeth)

$34.99

$

In Stock, only 3 left!

0

50

Cub Cadet TC-778123A

Spur Gear

Note: (25 teeth)

$48.99

$

Usually ships in 3-12 days

0

51

Cub Cadet TC-778122A

Spur Gear

Note: (22 teeth)

$39.99

$

Usually ships in 3-12 days

0

52

Cub Cadet TC-778273

Spur Gear

Note: (19 teeth)

$49.99

$

Usually ships in 3-12 days

0

54

Cub Cadet TC-778263

Spur Gear

Note: (11 teeth)

$85.99

$

Usually ships in 3-12 days

0

56

Cub Cadet TC-778126A

Spur Gear

Note: (20 teeth)

$48.99

$

Usually ships in 3-12 days

0

57

Cub Cadet TC-778127A

Spur Gear

Note: (25 teeth)

$53.99

$

In Stock, only 3 left!

0

58

Cub Cadet TC-778128A

Spur Gear

Note: (28 teeth)

$40.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-778129A

Spur Gear

Note: (30 teeth)

$37.99

$

In Stock, only 1 left!

0

61

Cub Cadet TC-778265

Spur Gear

Note: (34 teeth)

$40.99

$

In Stock, only 1 left!

0

65

Cub Cadet TC-780162

Washer

$6.49

$

Usually ships in 3-12 days

0

65A

Cub Cadet TC-780160

Washer

$4.49

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-776299

Input Shaft

$22.99

$

In Stock, only 1 left!

0

67

Cub Cadet TC-776352

Shifter & Brake Shaft

$156.99

$

In Stock, only 1 left!

0

69

Cub Cadet TC-780161

Washer

$4.49

$

Usually ships in 3-12 days

0

71

Cub Cadet TC-788069

Square Cut Ring

$4.49

$

Usually ships in 3-12 days

0

76

Cub Cadet TC-780090

Washer

$4.49

$

In Stock, Qty 7

0

77

Cub Cadet TC-788078A

Inverted Retaining Ring

Note: (pkg. of 2)

$4.49

$

Usually ships in 3-12 days

0

79

Cub Cadet TC-792144

Spring

$4.49

$

In Stock, only 2 left!

0

80

Cub Cadet TC-790063A

Brake Bracket

$5.49

$

Usually ships in 3-12 days

0

85

Cub Cadet TC-792137

Lubrication Fitting
(Superseded to 737-04006)

$

$

Not available

90

Cub Cadet TC-788067B

Grease
(Superseded to TC-788067C)

Note: (32 oz, bottle Bentonite grease)

$

$

Not available

150

Cub Cadet TC-510334

Gasket Eliminator

Note: (Loctite 1515)

$12.99

$

Usually ships in 3-12 days

0

161

Cub Cadet TC-776302

Reverse Idler

$21.99

$

Usually ships in 3-12 days

0

174

Cub Cadet TC-780085

Needle Bearing

$19.99

$

Usually ships in 3-12 days

0
