83231 - Toro Rear PTO (1983) PARTS LIST FOR REAR PTO FACTORY ORDER NUMBER 8-3231 Parts Diagram

Rear PTO

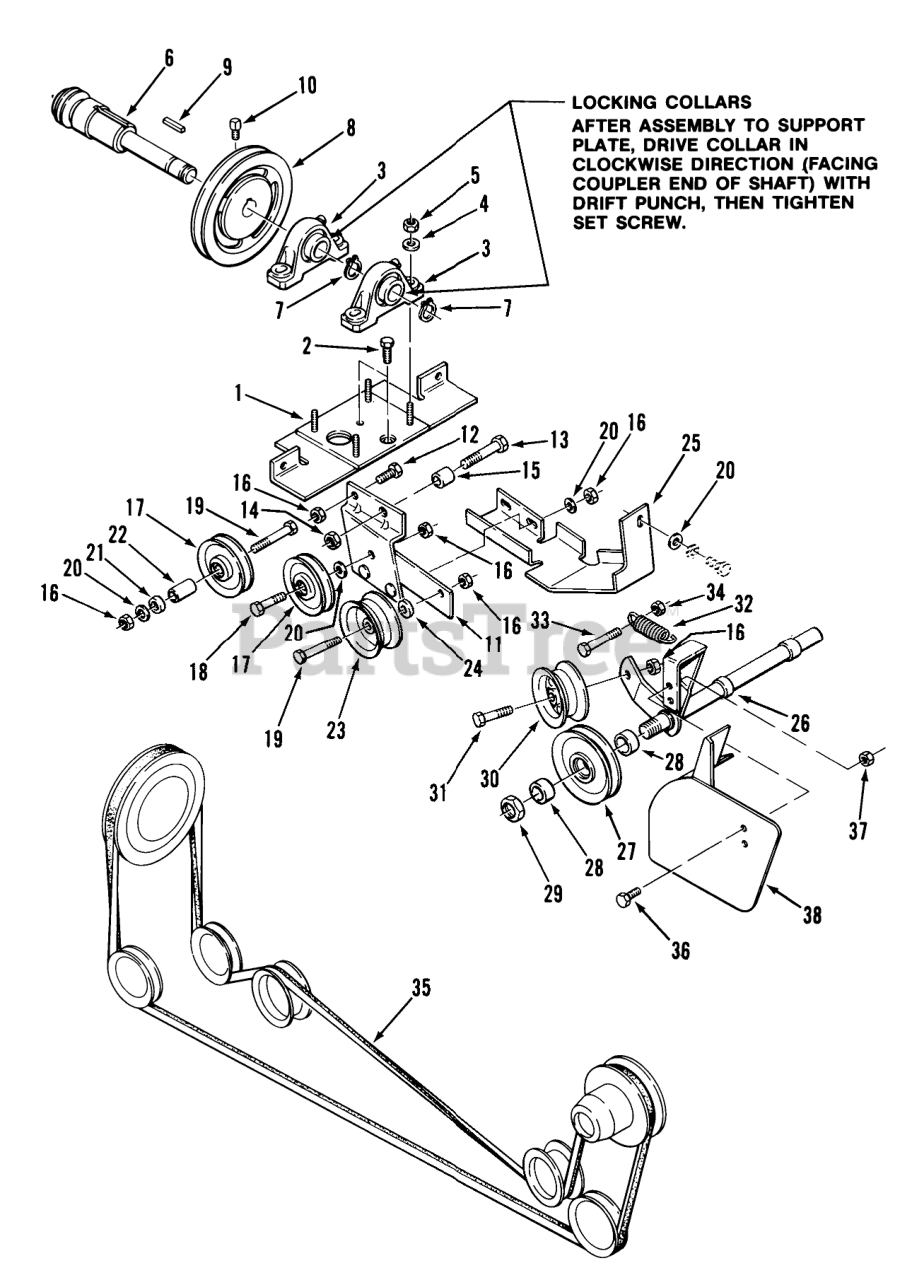

PARTS LIST FOR REAR PTO FACTORY ORDER NUMBER 8-3231 Parts Diagram

  • Title
1

Toro 109815

Support Plate

$

$

Not available

2

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

3

Toro 109817

Bearing

$

$

Not available

4

Toro 920220

WASHER

$3.99

$

Usually ships in 3-6 days

0

5

$6.49

$

In Stock, only 2 left!

0

6

Toro 109818

ASSY-QUICK COUPLER

$

$

Not available

7

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, only 2 left!

0

8

Toro 109819

Output Pulley

$

$

Not available

9

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

10

Toro 909541

Sq. Hd. Set Screw 5/16-18 x 5/8

$

$

Currently unavailable

11

Toro 109820

Rear Idler Support Bracket

$

$

Not available

12

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

13

Toro 908064

Bolt 1/2-13 x 2 3/4
(Superseded to 327-4)

$2.99

$

In Stock, only 2 left!

0

14

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

15

Toro 2730

Spacer 1/2" Bore, 1 7/64" Long

$

$

Currently unavailable

16

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

17

Toro 109823

PULLEY IDLER

$

$

Not available

18

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

19

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

20

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

21

Toro 5715

Spacer
(Superseded to 920011)

$0.99

$

In Stock, Qty 20+

0

22

Toro 102028

Spacer

$

$

Not available

23

Toro 107280

PULLEY-IDLER

$89.99

$

Usually ships in 3-6 days

0

24

Toro 100687

SPACER

$

$

Not available

25

Toro 109824

GUARD IDLER R

$

$

Not available

26

Toro 109825

ASSY FRONT IDLER R

$

$

Not available

27

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

28

Toro 7038

Spacer

$11.99

$

Usually ships in 3-6 days

0

29

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 7

0

30

Toro 109828

Flat Idler 1 1/4" Wide

$

$

Not available

31

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

32

Toro 6135

SPRING-BRAKE

$12.99

$

In Stock, only 1 left!

0

33

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

34

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

35

Toro 109829

BELT-V

$

$

Not available

36

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 1 left!

0

37

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

38

Toro 110039

ASM: FRONT IDLER R
(Superseded to 110039-01)

$

$

Not available
