83222 - Toro Rear PTO (1974) Parts List-Rear Power Take-Off Model 8-3222 For 60" Mower And 38" Tiller(factory Order Number 8-3222) Parts Diagram

Rear PTO

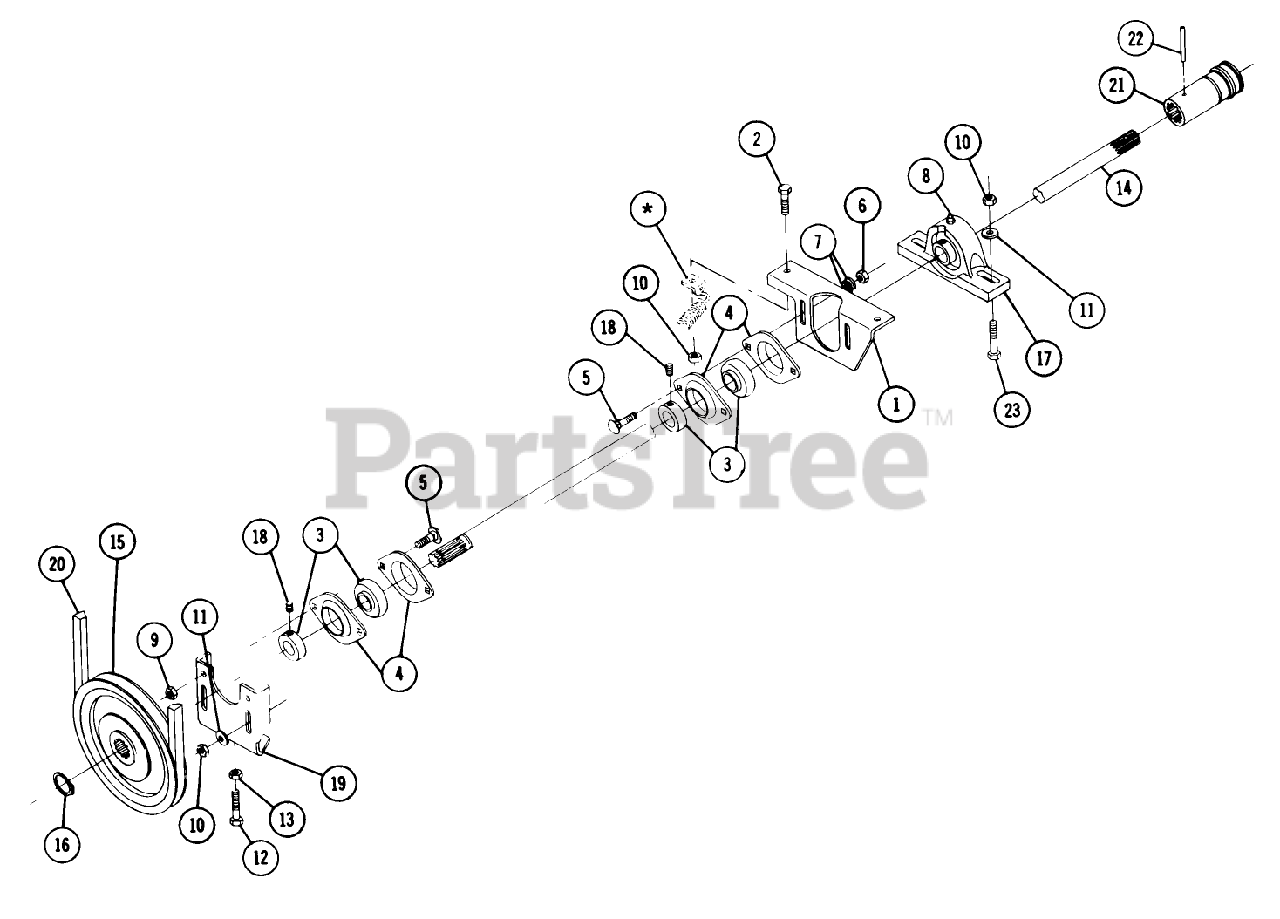

Parts List-Rear Power Take-Off Model 8-3222 For 60" Mower And 38" Tiller(factory Order Number 8-3222) Parts Diagram

  • Title

1

Toro 104413

DISCONTINUED

$

$

Not available

2

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

3

Toro 103083

DISCONTINUED

$

$

Not available

4

Toro 103081

DISCONTINUED

$

$

Not available

5

Toro 900038-4

Bolt-Car. 5/16-18 x 1

$

$

Currently unavailable

6

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

7

Toro 920038-4

Washer

$

$

Currently unavailable

8

Toro 1291

DISCONTINUED

$

$

Not available

9

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

10

Toro 915113-6

Nut

$

$

Currently unavailable

11

Toro 920009-4

Washer

$

$

Currently unavailable

12

Toro 911408-4

Bolt Hex 3/8-16 x 1 1/2

$

$

Currently unavailable

13

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

14

Toro 103371

DISCONTINUED

$

$

Not available

15

Toro 103370

DISCONTINUED

$

$

Not available

16

Toro 936131

See Supercession: 32151-29
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 8

0

17

Toro 103142

DISCONTINUED

$

$

Not available

18

Toro 909962-6

Set Screw 1/4-28 x 1/4

$

$

Currently unavailable

19

Toro 102417

DISCONTINUED

$

$

Not available

20

Toro 103084

DISCONTINUED

$

$

Not available

21

Toro 102975

DISCONTINUED

$

$

Not available

22

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

23

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

Spring Bracket

Note: Take from Tractor

$

$

Not available
