83211 - Toro Farm Implement PTO (1968) PARTS LIST-POWER TAKE-OFF MODEL 83211 Parts Diagram

Farm Implement PTO

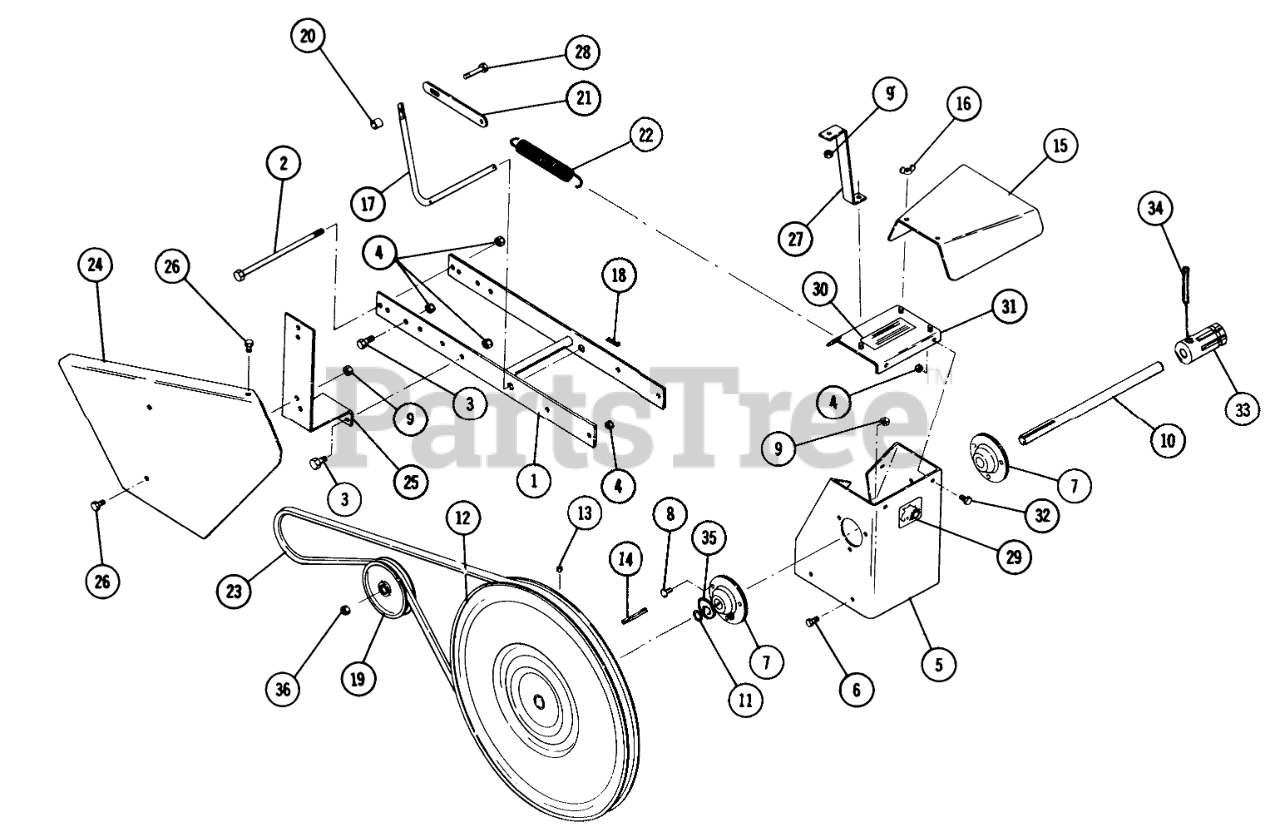

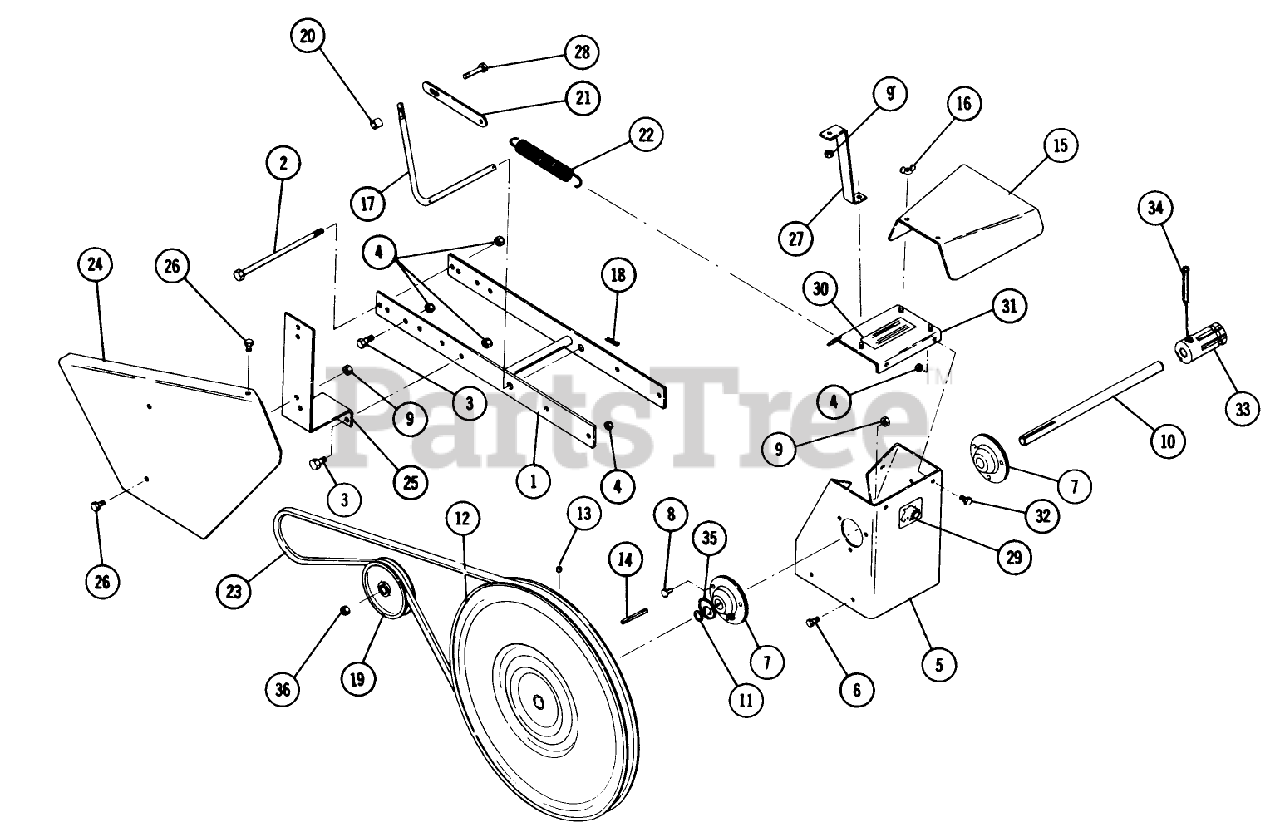

PARTS LIST-POWER TAKE-OFF MODEL 83211 Parts Diagram

  • Title

1

Toro 7762

Ass-y Frame

$

$

Currently unavailable

2

Toro 911405-4

Bolt Hex Head 3/-16 x 8 1/2

$

$

Currently unavailable

3

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

4

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

5

Toro 7765

Shroud

$

$

Currently unavailable

6

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

7

Toro 7766

Bearing

$

$

Currently unavailable

8

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

9

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

10

Toro 7768

Ass-y Shaft-Spline

$

$

Currently unavailable

11

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

12

Toro 7769

Pulley

$

$

Currently unavailable

13

Toro 909862-S

Set Screw, 5/16-18 x 5/16

$

$

Currently unavailable

14

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.99

$

In Stock, only 3 left!

0

15

Toro 7772

Shield

$

$

Currently unavailable

16

Toro MW-8472

Nut-Wing Elastic Stop

$

$

Currently unavailable

17

Toro 7773

Rod-Pulley

$

$

Currently unavailable

18

Toro 933512-4

Hairpin

$

$

Currently unavailable

19

Toro 6769

Pulley-Idler
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

20

Toro 6134

Spacer
(Superseded to 100309)

$9.99

$

In Stock, only 1 left!

0

21

Toro 7012

Link

$

$

Currently unavailable

22

Toro 6651

SPRING R

$24.99

$

In Stock, only 1 left!

0

23

Toro 7776

V-BELT

$

$

Not available

24

Toro 7774

Belt-Guard

$

$

Currently unavailable

25

Toro 7775

Bracket

$

$

Currently unavailable

26

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

27

Toro 7777

Brace-Belt Guard

$

$

Currently unavailable

28

Toro 908038-4

Bolt, 3/8 16 x 2

$

$

Currently unavailable

29

Toro 4410

Decal
(Superseded to 102832)

$

$

Not available

30

Toro 4498

Decal-Caution
(Superseded to 92-7112)

$

$

Not available

31

Toro 7770

Ass-y Cover

$

$

Currently unavailable

32

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

33

Toro 6794

31109 '59 17 SNWHOU

$3.23

$

Usually ships in 3-6 days

0

34

Toro 933749

Spirol Pin

$

$

Currently unavailable

35

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

36

Toro 915113-6

Nut

$

$

Currently unavailable
