832008 - Ariens Tiller Attachment (SN: 000101 & Above) Rotary Tiller Attachment Parts Diagram

Tiller Attachment

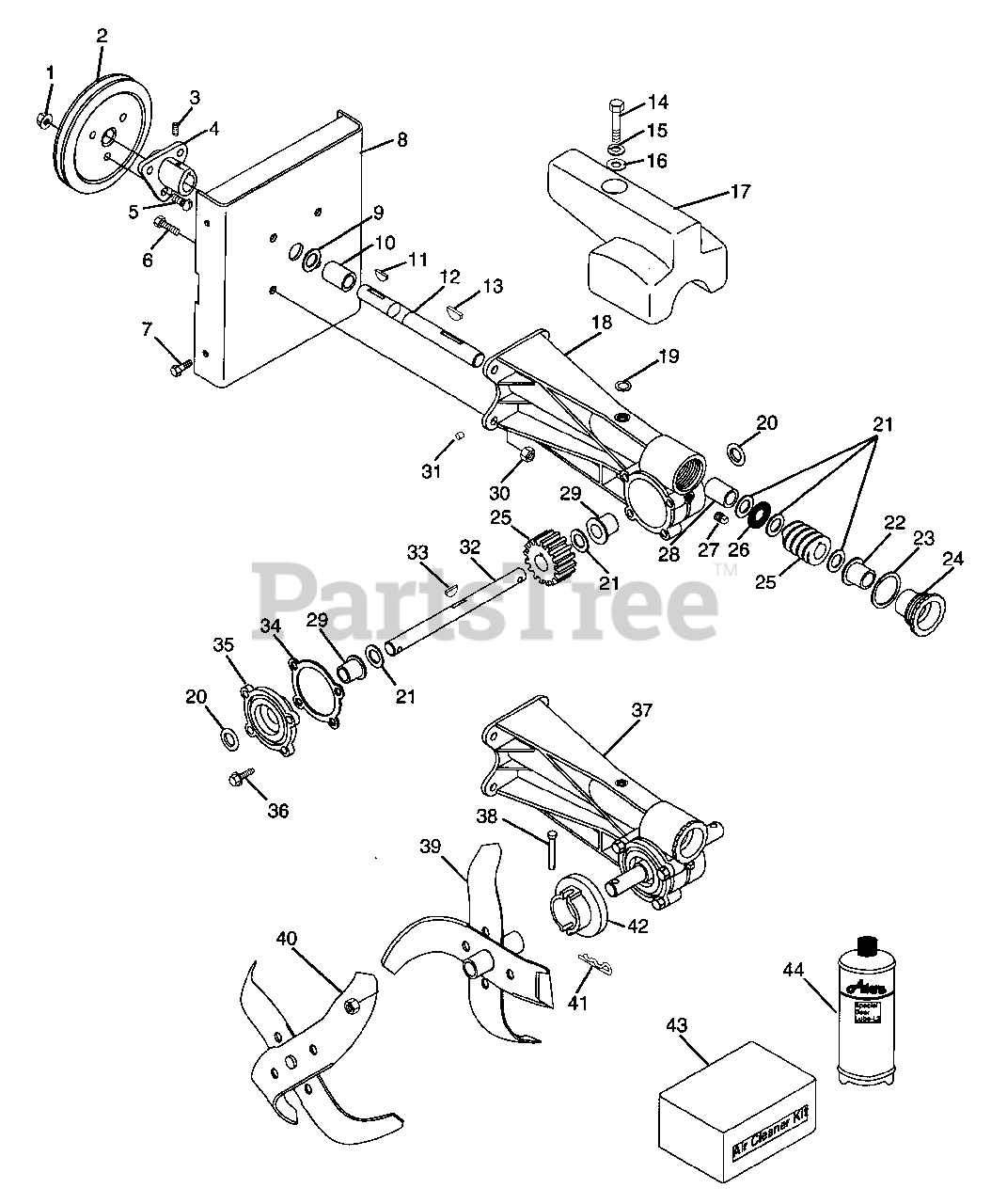

Rotary Tiller Attachment Parts Diagram

  • Title

1

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 07316359

PLY-V 8.50 X 1.25 3BLT
(Superseded to 07316300)

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

4

Ariens 00286200

HUB
(Superseded to 50202100)

$85.99

$

In Stock, only 1 left!

0

5

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

6

Ariens 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 53205600

TILLER MOUNTING PLATE W/DECAL

$

$

Not available

9

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 16

0

10

Ariens 05510300

BSHG-SLV .750X1.000X1.000

$17.99

$

In Stock, only 2 left!

0

11

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 7

0

12

Ariens 00280700

WORM SHAFT

$155.99

$

Usually ships in 4-12 days

0

13

Ariens 06603300

KEY-FTHR .188X1.38X.188

$4.99

$

In Stock, only 1 left!

0

14

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 03210600

TILLER WEIGHT
(Superseded to 03210651)

$

$

Not available

18

Ariens 00287100

GEARCASE - ALUMINUM

$

$

Not available

19

Ariens 03115800

SHIM SPACER

$9.99

$

In Stock, only 1 left!

0

20

Ariens 05609900

SEAL .750X1.980X.375

$15.99

$

Usually ships in 4-12 days

0

21

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

22

Ariens 05511500

BSHG-FLG .750X1.000X.750X1.132

$17.99

$

In Stock, only 1 left!

0

23

Ariens 00285200

GASKET

$21.99

$

Usually ships in 4-12 days

0

24

Ariens 00285100

ADJUSTMENT PLUG

$140.99

$

Usually ships in 4-12 days

0

25

Ariens 53201200

WORM & WORM GEAR ASSEMBLY

$

$

Not available

26

Ariens 05410400

BRG-N THRST .754X1.24X.078

$12.99

$

In Stock, Qty 7

0

27

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 05500900

BSHG-SLV .750X1.000X.750

$9.99

$

Usually ships in 4-12 days

0

29

Ariens 05510500

BSHG-FLG .750X1.250X.750X1.375

$25.99

$

Usually ships in 4-12 days

0

30

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 00200900

BREATHER

$

$

Not available

32

Ariens 00281100

TINE SHAFT

$

$

Not available

33

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

34

Ariens 00287300

GASKET

$3.99

$

In Stock, only 1 left!

0

35

Ariens 00287200

COVER

$

$

Not available

36

Ariens 07402300

SCR-TAP .312-18X1.0 HWH PL TR
(Superseded to 07413900)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 53203300

TILLER GEARCASE - ALUMINUM

$

$

Not available

38

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

39

Ariens 00236851

R H INNER TINE SPOOL

$219.99

$

Usually ships in 4-12 days

0

39

Ariens 00238651

L H INNER TINE SPOOL

$219.99

$

Usually ships in 4-12 days

0

40

Ariens 00238751

R H OUTER TINE SPOOL

$81.99

$

Usually ships in 4-12 days

0

40

Ariens 00238851

L H OUTER TINE SPOOL

$219.99

$

Usually ships in 4-12 days

0

41

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 00283400

DUST CAP

$9.99

$

Usually ships in 4-12 days

0

43

Ariens 02400500

AIR CLEANER KIT

$

$

Not available

44

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$18.99

$

In Stock, Qty 20+

0
