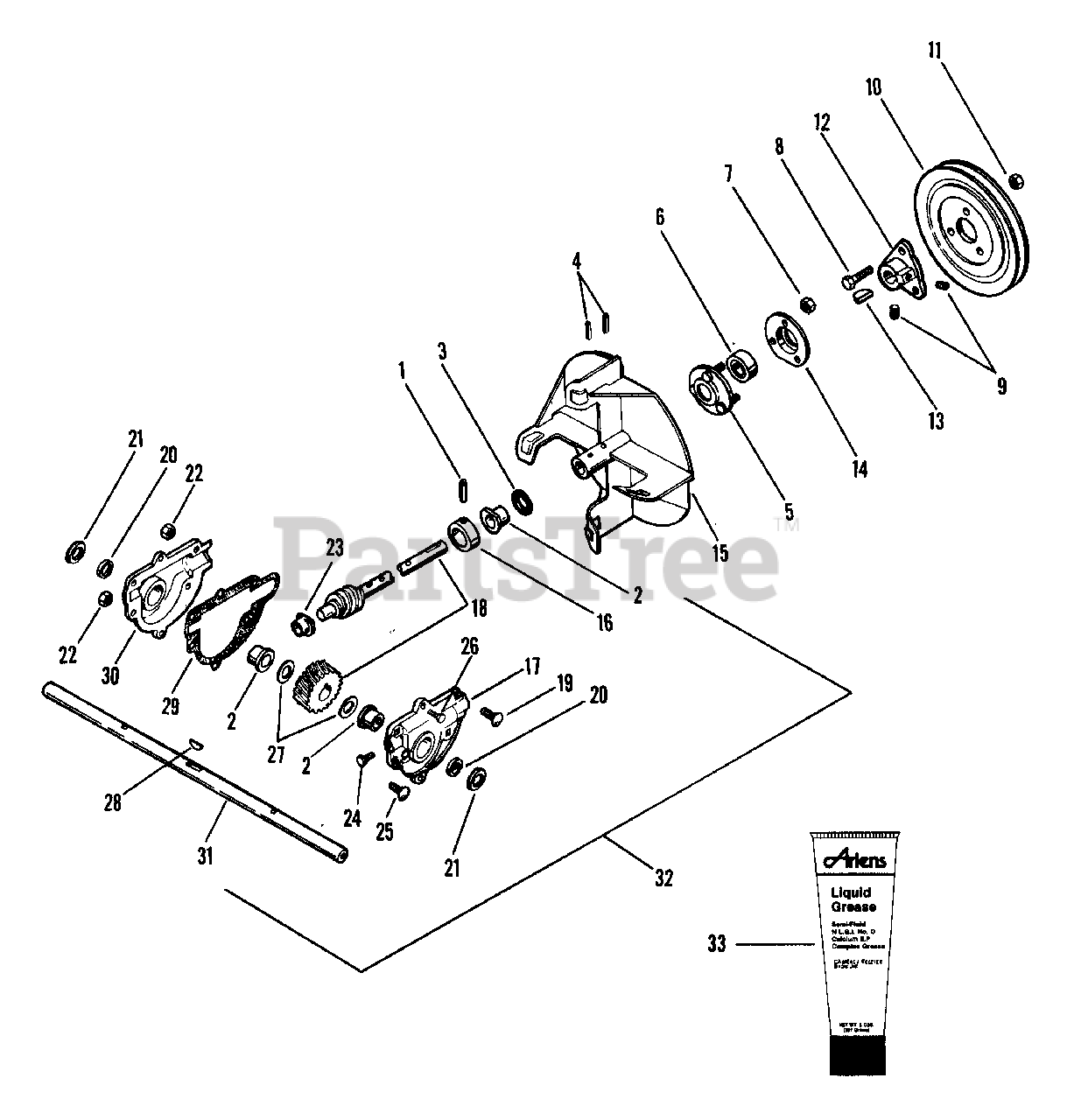

832002 - Ariens 20" Sno-Thro Attachment (SN: 058101 & Above) Gearcase And Impeller Parts Diagram

20" Sno-Thro Attachment

Gearcase And Impeller Parts Diagram

  • Title

1

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, only 4 left!

0

2

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 15

0

3

Ariens 05604700

O-RING .250X.943X.103

$2.49

$

In Stock, Qty 7

0

4

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

5

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 9

0

6

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 19

0

7

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

9

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

10

Ariens 07310300

PLY-V 7.0 X 1.25 3BLT

$

$

Not available

11

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00286200

HUB
(Superseded to 50202100)

$85.99

$

In Stock, only 2 left!

0

13

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 7

0

14

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

15

Ariens 03204000

IMPELLER - 10"
(Superseded to 03204051)

$221.99

$

In Stock, only 1 left!

0

16

Ariens 03210300

THRUST COLLAR

$62.99

$

Usually ships in 4-12 days

0

17

Ariens 03203300

L H GEAR CASE HALF
(Superseded to 53206700)

$

$

Not available

18

Ariens 53200100

SHAFT AND WORM GEAR ASSEMBLY

$119.99

$

In Stock, only 4 left!

0

19

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 16

0

21

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 05511100

BSHG-FLG .500X.750X.750X1.000
(Superseded to 05520600)

$9.49

$

In Stock, Qty 6

0

24

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06205400

BLT-RDHDSQNK .25-20X.88 PL
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

26

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

27

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

28

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

29

Ariens 03203800

GASKET

$4.99

$

In Stock, Qty 11

0

30

Ariens 03203200

R H GEAR CASE HALF
(Superseded to 53206700)

$

$

Not available

31

Ariens 03203600

SHAFT, RAKE - 20"

Note: (1,4,15,17,18,19,23,832002)

$

$

Not available

31

Ariens 03208200

SHAFT, RAKE - 24"

Note: (6,20,22,832003)

$129.99

$

Usually ships in 4-12 days

0

32

Ariens 53200200

GEAR CASE - 20" - ALUMINUM
(Superseded to 53206900)

Note: (1,2,15,17,18,19,23,832002)

$603.99

$

In Stock, only 1 left!

0

32

Ariens 53201100

GEAR CASE - 24" - ALUMINUM
(Superseded to 53208200)

Note: (6,20,22,832003)

$597.99

$

Usually ships in 4-12 days

0

33

Ariens 00007200

8 OZ TUBE OF LIQUID GREASE
(Superseded to 00979807)

Note: (Requires 2 oz.)

$79.99

$

Usually ships in 4-12 days

0
