832002 - Ariens 20" Sno-Thro Attachment (SN: 058101 & Above) Discharge Chute Parts Diagram

20" Sno-Thro Attachment

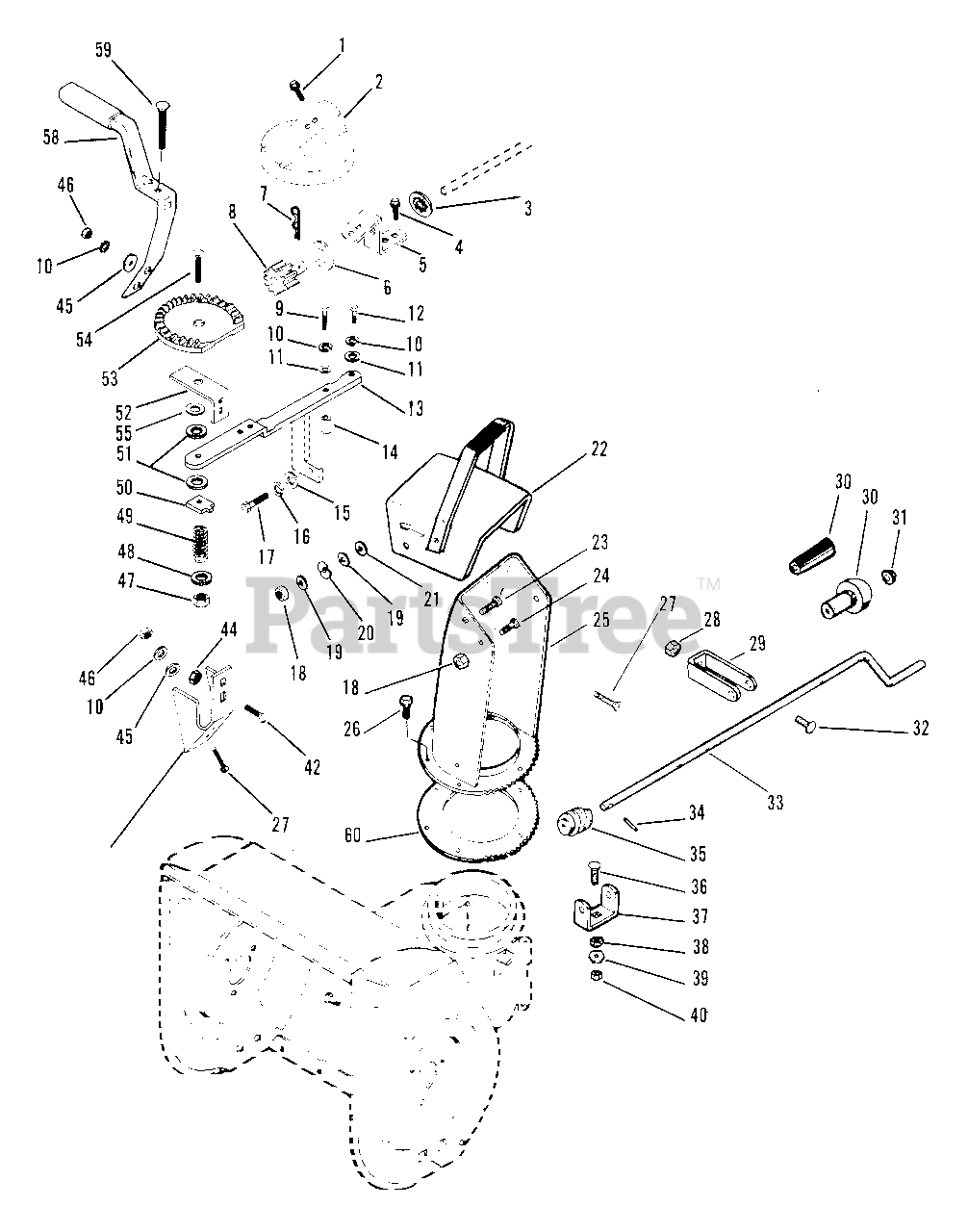

Discharge Chute Parts Diagram

  • Title

1

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 03223000

GEAR COVER

Note: (19,20,22,23)

$12.99

$

In Stock, only 4 left!

0

3

Ariens 03224300

PUSHNUT .625

Note: (19,20,22,23)

$2.49

$

In Stock, Qty 13

0

4

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 03220500

BRACKET-GEAR
(Superseded to 53214200)

Note: (19,20,22,23)

$48.99

$

In Stock, Qty 9

0

6

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 03223900

PINION-CHUTE
(Superseded to 53214200)

Note: (19,20,22,23)

$48.99

$

In Stock, Qty 9

0

9

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

10

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

13

Ariens 03214200

STRAP

Note: (15,18)

$

$

Not available

13

Ariens 03218400

STRAP

Note: (17)

$

$

Not available

13

Ariens 03220400

STRAP-CHUTE CONTROL

Note: (19,20,23)

$

$

Not available

13

Ariens 03224600

STRAP

Note: (22)

$

$

Not available

14

Ariens 03221800

SPACER .280X.625X.760

Note: (19,20,23)

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

20

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

21

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

22

Ariens 53201300

DEFLECTOR W/DECAL

$

$

Not available

23

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

25

Ariens 03219800

DISCHARGE CHUTE
(Superseded to 03219859)

Note: (19,20,22,23)

$

$

Not available

25

Ariens 03214800

DISCHARGE CHUTE

Note: 932001 SN < 044300 & 932004 SN < 037998 & 932006 SN < 065300 & 832002 SN 057559 & 832003 SN 049102 & 932015 SN 017274

$156.99

$

Usually ships in 4-12 days

0

25

Ariens 03214400

CHUTE-DISCHARGE

Note: (15,17,18);932004 SN 038101 & 932006 SN 065401 & 932015,17,18 SN 000101>

$161.99

$

Usually ships in 4-12 days

0

26

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

$2.49

$

Usually ships in 4-12 days

0

27

Ariens 05927300

SCR-SKH .25-20X.75 FLTCNTRSK

$

$

Not available

28

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 53200400

BRACKET WITH DECAL

Note: (1,4,6,832002,3)

$

$

Not available

30

Ariens 07503900

GRIP

Note: (1,4,6,832002,3)

$

$

Not available

30

Ariens 07508300

KNOB

Note: (19,20,22,23)

$13.99

$

In Stock, Qty 7

0

31

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: (19,20,22,23)

$2.99

$

In Stock, Qty 15

0

32

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 02208100

CHUTE CONTROL CRANK

Note: (1,4,6,832002,3);932001 SN < 044300 & 932004 SN < 037998 & 932006 SN < 065300 & 832002 SN 057559 & 832003 SN 049102 & 932015 SN <017274 ;932004 SN 038101 & 932006 SN 065401 & 932015,17,18 SN 000101>

$

$

Not available

33

Ariens 03222700

CHUTE CRANK

Note: (19,20);932019 SN 000101> & 932020 SN <010900

$

$

Not available

33

Ariens 03225500

CHUTE CRANK

Note: (20,22,23);932020 SN 010901> & 932022 SN 000101>

$

$

Not available

34

Ariens 05803400

PIN-ROLL .125X.75

Note: (1,4,6,832002,3)

$0.99

$

In Stock, Qty 16

0

35

Ariens 02211000

WORM GEAR

Note: (1,4,6,832002,3);932001 SN < 044300 & 932004 SN < 037998 & 932006 SN < 065300 & 832002 SN 057559 & 832003 SN 049102 & 932015 SN 017274

$

$

Not available

36

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 02215300

PUSH NUT, .25

Note: (1,4,6,832002,3);932001 SN < 044300 & 932004 SN < 037998 & 932006 SN < 065300 & 832002 SN 057559 & 832003 SN 049102 & 932015 SN 017274

$1.99

$

In Stock, Qty 16

0

38

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.99

$

In Stock, only 2 left!

0

39

Ariens 06303500

WSHR-LK-EXT .375X.035 PL
(Superseded to 06308700)

$1.99

$

Usually ships in 4-12 days

0

40

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

42

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

43

Ariens 03220300

STRAP, CHUTE

Note: (19,20,22,23)

$

$

Not available

44

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 06417100

WSHR-FL-STL .312X.875X.18 PL

$

$

Not available

46

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

47

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 20+

0

50

Ariens 03215500

FRICTION PLATE

Note: (4,6,15);932004 SN 038101 & 932006 SN 065401 & 932015,17,18 SN 000101>

$

$

Not available

50

Ariens 03219000

FRICTION PLATE

Note: (19,20,22,23)

$27.99

$

In Stock, only 4 left!

0

51

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

52

Ariens 03220700

GEAR STRAP
(Superseded to 03220751)

Note: (19,20,22,23)

$27.99

$

Usually ships in 4-12 days

0

53

Ariens 03222900

CHUTE GEAR

Note: (19,20,22,23)

$11.99

$

In Stock, Qty 20+

0

54

Ariens 06200500

BLT-RDHDSQNK .38-16X2.25 SHTPL
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

55

Ariens 06406100

WSHR-FL-STL .380X1.50X.062 PL
(Superseded to 06439300)

Note: (22)

$3.49

$

In Stock, Qty 20+

0

58

Ariens 03218800

CHUTE HANDLE W/PLASTISOL

Note: (15,17,18)

$

$

Not available

59

Ariens 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 20+

0

60

Ariens 02216000

GEAR - LOWER COLLAR

Note: (1,4,6,832002,3);932001 SN < 044300 & 932004 SN < 037998 & 932006 SN < 065300 & 832002 SN 057559 & 832003 SN 049102 & 932015 SN 017274

$

$

Not available
