832 (590-832-100) - Cub Cadet Backhoe Sub-Frame att Backhoe Frame Assembly Parts Diagram

Backhoe Sub-Frame

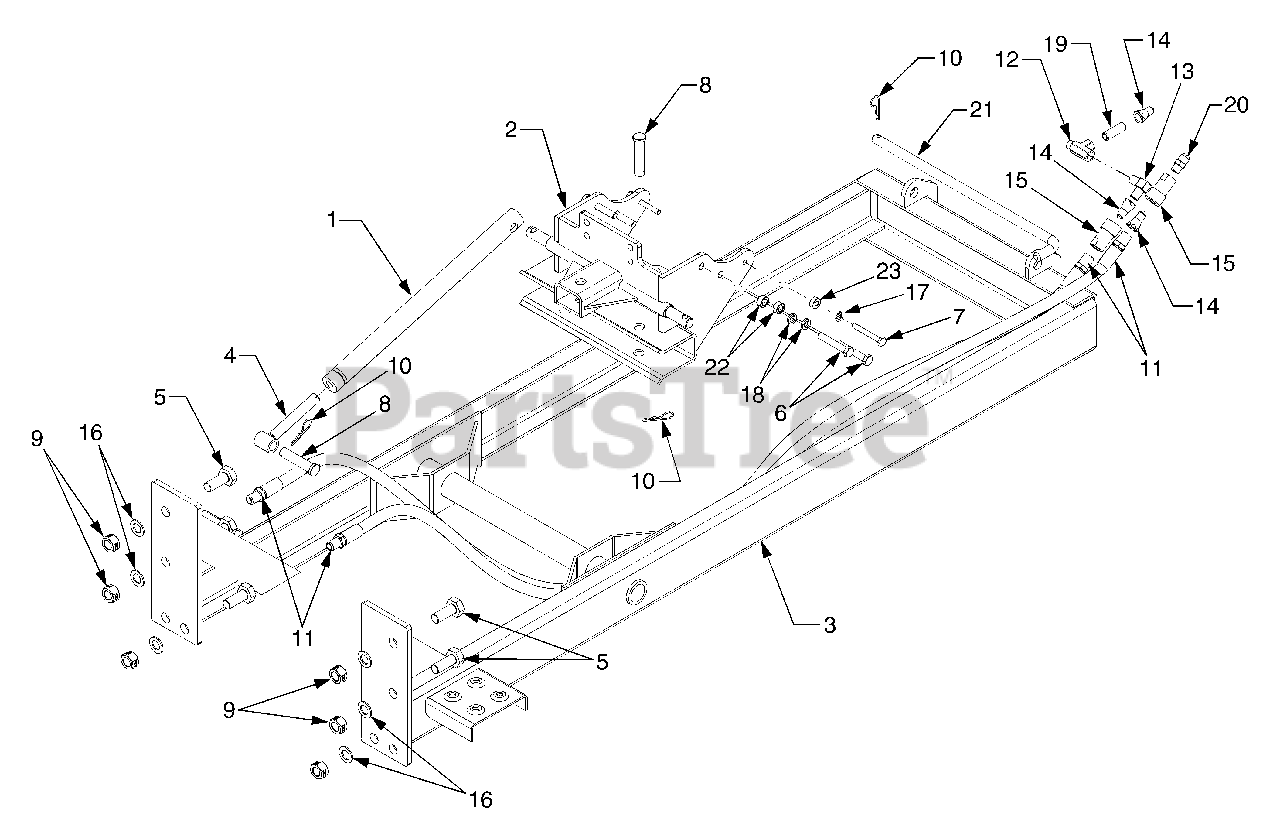

Backhoe Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04017

Link, Top Adjustment

$

$

Not available

2

Cub Cadet 603-04136

Bracket, Backhoe Mounting

$

$

Not available

3

Cub Cadet 603-04137

Frame, Backhoe

$

$

Not available

4

Cub Cadet 603-0941

Rod, Top Link Adjustment

$

$

Not available

5

Cub Cadet 710-04123

Screw, Hex Cap, M20-1.5 x 50

$

$

Not available

6

Cub Cadet 710-04128

Screw, Hex Cap, M12-1.75 x 75 GR8.8

$

$

Not available

7

Cub Cadet 710-04365

Screw, Hex Cap, M10-1.5 x 75 GR8.8

$

$

Not available

8

Cub Cadet 711-1733

Pin, Clevis, 19mm x 84mm

$

$

Not available

9

Cub Cadet 712-04042

Nut, Hex Center Lock, M20 x 1.5

$

$

Not available

10

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 727-04011

Hose, Hydraulic, 1/2ID x 100

$

$

Not available

12

Cub Cadet 727-04012

Fitting, Tee, 3/8-18

$

$

Not available

13

Cub Cadet 727-04013

Fitting, Elbow - Male

$

$

Not available

14

Cub Cadet 727-3224

Coupling, Hydraulic - Male

$118.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 727-3225

Coupling, Hydraulic - Female

$89.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0134

Washer, Flat, .812 x 1.38 x .1

$4.49

$

In Stock, Qty 10

0

17

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

18

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 737-0199

Pipe, Straight, 3/8 NPT x 2.0
(Superseded to 937-0199)

$

$

Not available

20

Cub Cadet 737-04044

Fitting, Adapter - Male

$

$

Not available

21

Cub Cadet 747-04045

Rod, Backhoe Pin

$

$

Not available

22

Cub Cadet 750-0664

Spacer, .505 ID x .88 x .44

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 750-0910

Spacer, 39 ID x .850 x .375
(Superseded to 950-0910)

$

$

Not available
